The 12T electric trailer chassis flatbed truck is developed and manufactured by Nangong Vehicle. It features electric remote operation and can also be manually towed, dual-purpose functionality.
Application ScenarioElectric flatbed trucks are suitable for container transport at airports, ports, and within factories.

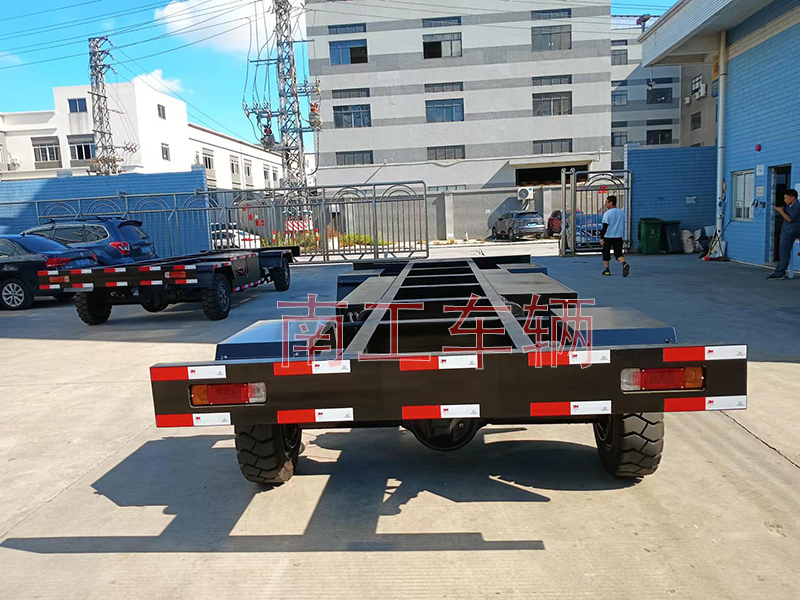

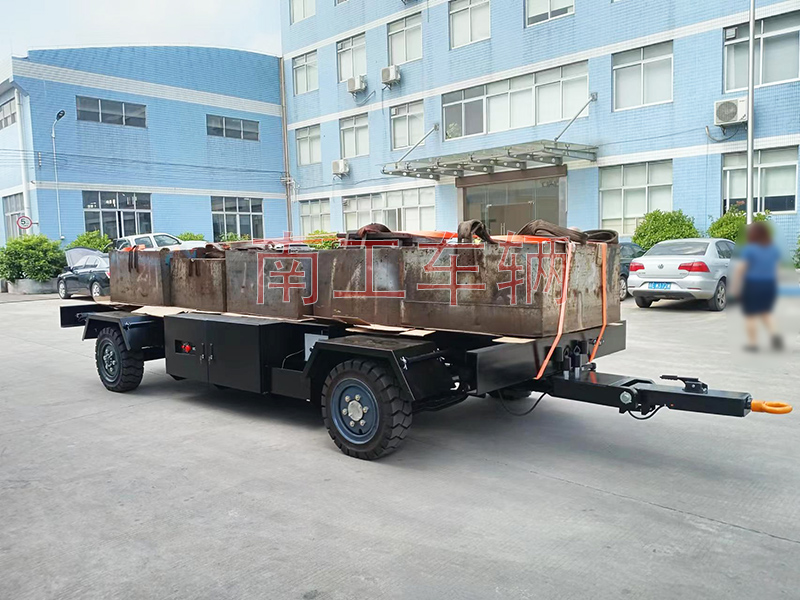

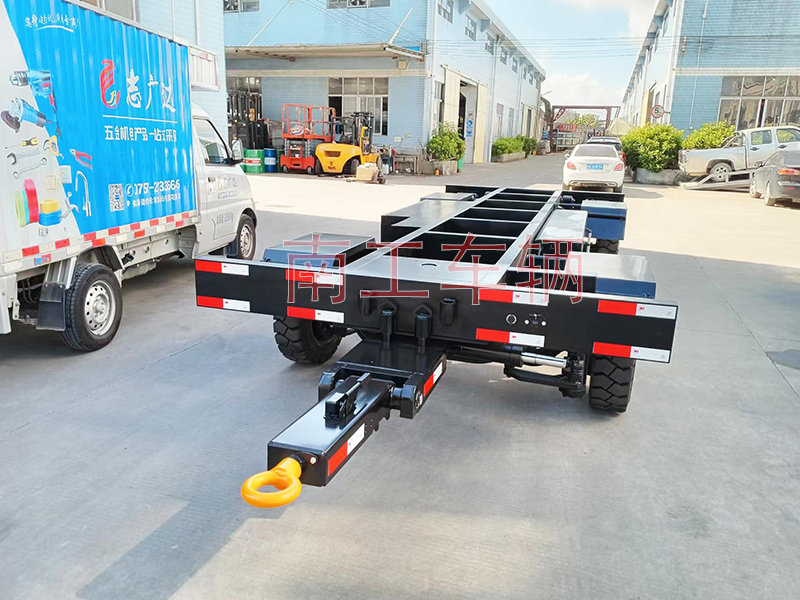

12T Electric Trailer Chassis Flatbed Truck
Detailed technical requirements:
I. The Container Section
1. The cabinet is primarily constructed using welding techniques, with the bottom frame assembled and covered with boards. The front, back, and top are securely fixed, and the sides are equipped with winged doors.
2. Front and rear end corner sheet metal bending with small round arcs, assembly and welding as per drawings; open inspection and operation windows accordingly.
3. The side-wing doors are equipped with gas springs for assistance.
4. The cabinet chassis and body design are removable, featuring bolted connections for secure fixation.
5. Note: Additional costs for installing secret compartments, pipelines, or electrical wiring are not included in this price.
Part II: Chassis Section
1. This vehicle is designed for both towed and self-propelled use.Electric TrailerSimple and practical operation, stable performance.
2. The body manufacturing process employs sheet metal welding, with the vehicle's carrying capacity at 3 tons. The frame body width is 1.65 meters, length 3 meters, and height 0.5 meters. Thickened type.
Steel welding is less prone to deformation.
3. The undercarriage suspension features leaf spring shock absorption, equipped with two sets of 2.5-ton axles, with the front axle steering and the rear axle driving.
4. Equipped with four sets of 600-9 pneumatic tires, each tire can carry a load of 1.2 tons. Self-propelled speed ranges from 0 to 5 km/h, while the towing speed is up to 25 km/h.
5. The self-propelled tow conversion uses an electromagnetic clutch. The clutch closes when the unit is self-propelled and opens when towing.
6. Power source is a 48V 100A lithium iron phosphate battery with a charger, the power motor is a 48V 3KW unit, and steering is via an electric push-hydraulic push rod.
7. Button Remote Control; features include start/stop, forward/reverse, and left/right turns; remote control range up to 100 meters.
8. Battery box, tool box, and electrical control box are designed on both sides. The vehicle's interior is equipped with a walking sound and light horn.
9. Yellow painted color.
