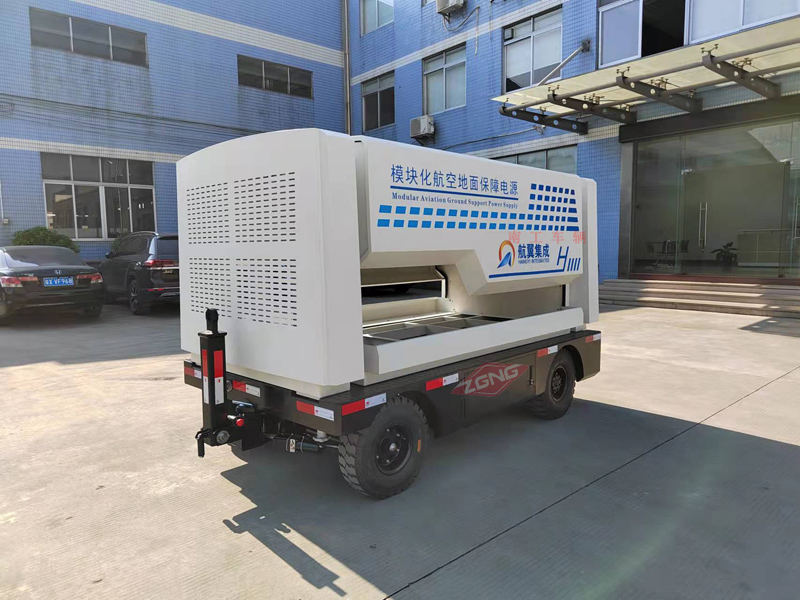

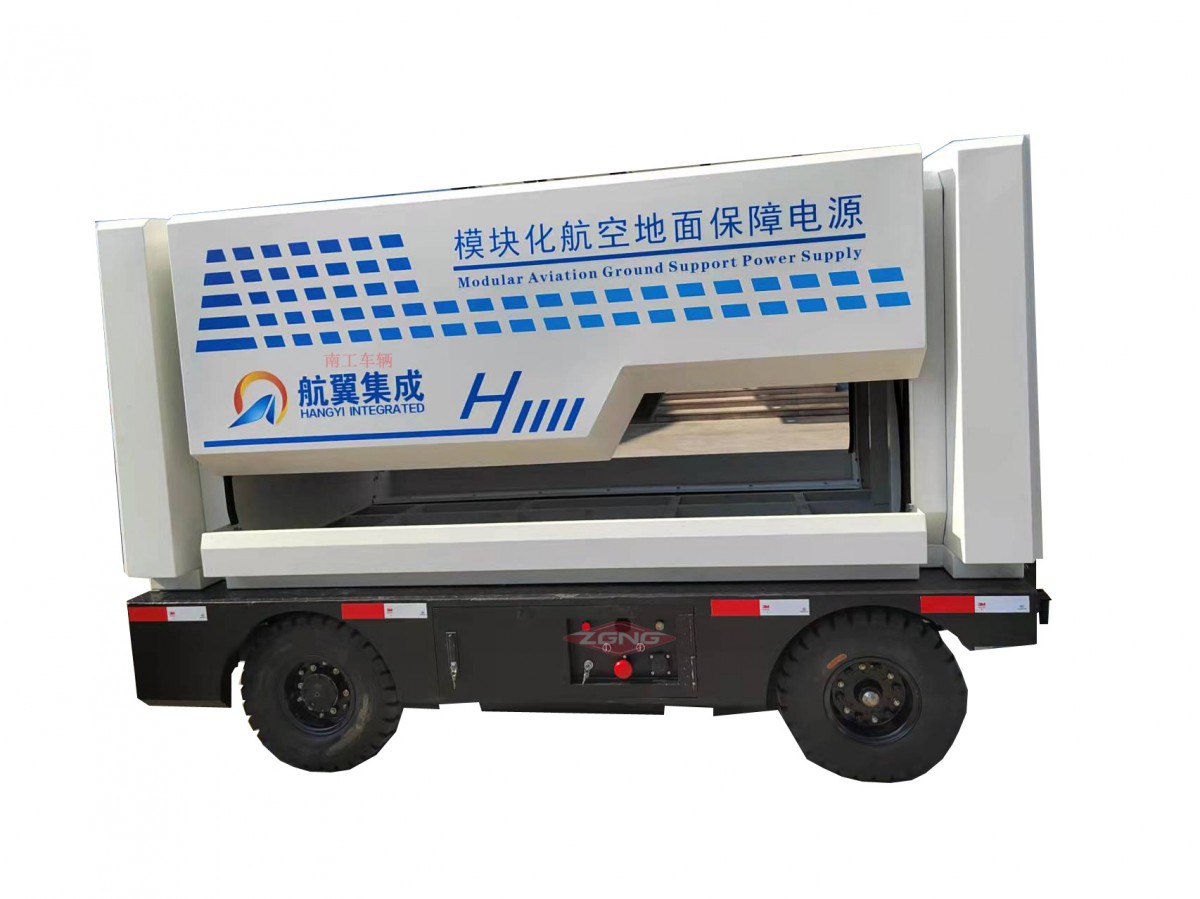

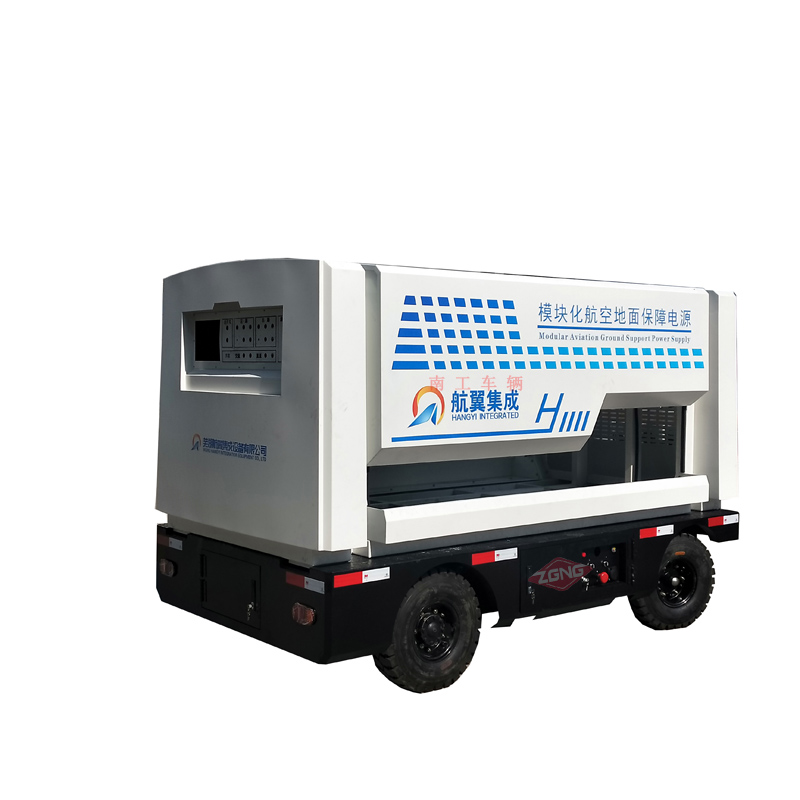

The modular aviation ground support power vehicle electric flatbed trailer produced by NanGong Vehicle Manufacturing is suitable for the transportation of power equipment in airports and aviation fields. Features include good quality, competitive prices, and fast delivery.
Application ScenarioAirfield, industrial, and factory power equipment or other equipment transportation.
NanGong 2-ton power vehicleElectric flatbed trailerTechnical Requirements:
One.Electric flatbed trailerCasing section
1The housing is primarily constructed using welding techniques, with the undercarriage frame assembled and covered with boards on the surface, secured at the front, back, and top, and fitted with wing doors on both sides.
2Front and rear end corner sheet metal bending with small circular arcs assembly welding, open inspection and operation windows according to the drawings.
3The side flying doors are assisted by gas springs.
4The body chassis and vehicle design are detachable, secured by bolt connections.
5Note: Installation costs for concealed compartments, pipes, or wiring are not included in this price.
Two. Electric Flatbed TrailerChassis section
1This vehicle is designed for dual-purpose trailer towing; it's easy to operate and practical with stable performance.
2The vehicle body is crafted using sheet metal welding technology.Electric TrailerCarrying capacity of3tons. Frame body width1.65Rice,Length of3Rice,High0.5Rice.Thickened type
Steel welding is less prone to deformation.
3The undercarriage suspension utilizes leaf spring shock absorption, equipped with two sets.2.5Tonnage axle, front axle steering, rear axle driving.
4Walking mechanism4Set600-9Inflated tire, single tire load capacity1.2tons. Self-propelled speed0-5Kilometers per hour, traction speed25km/h
5The self-propelled牵引converter uses an electromagnetic clutch, which closes when the vehicle is self-propelled and opens during traction.
6Power source used48V100ALithium iron phosphate battery with charger, power motor used48V3KW,Hydraulic push rod with electric steering adopted.
7Button remote controller; functions include start/stop, forward/reverse, left/right turn; remote control range100Metric Tons
8Batteries, tool, and electrical control boxes are designed on both sides. The vehicle interior is equipped with walking sound and light horns.
9. Color: White spray paint.
