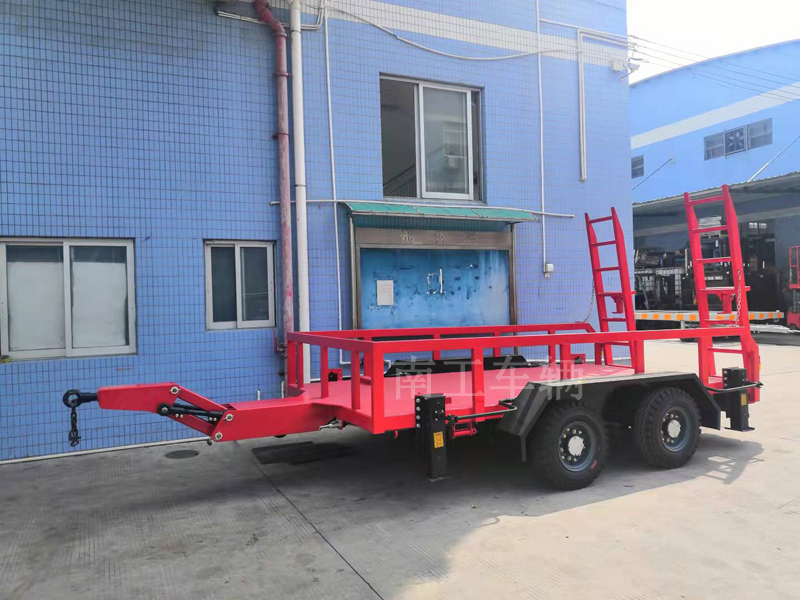

Brand: NanGong, Model:PT08-20W40L-4S, Load Capacity: 0.8 tons, Deck Dimensions: 4*2 meters, Net Weight: 1.4 tons, Color: Red

The trailer has a carrying capacity of 8T, constructed with 8# type steel structure welding, and the platform dimensions are 4 meters in length and 2 meters in width. The platform height is approximately 0.6 meters, with a 4mm thick patterned plate laid on the surface. The vehicle body is equipped with guardrails on the front, left, and right sides, with the guardrail height being about 0.3 meters.

2. The tires are four 700-12 air tires, with a single tire carrying capacity of 2.3 tons, featuring leaf spring suspension.

3. Welded two 0.35-meter 8# channel steels above the body for equipment limitation, both ends sealed.

4. Install a swivel caster leg (dual wheel) at the tow bar to adjust height.

5. Height-adjustable with traction frame cushioning feature, equipped with two 5T hand-cranked mechanical legs on each side of the body.

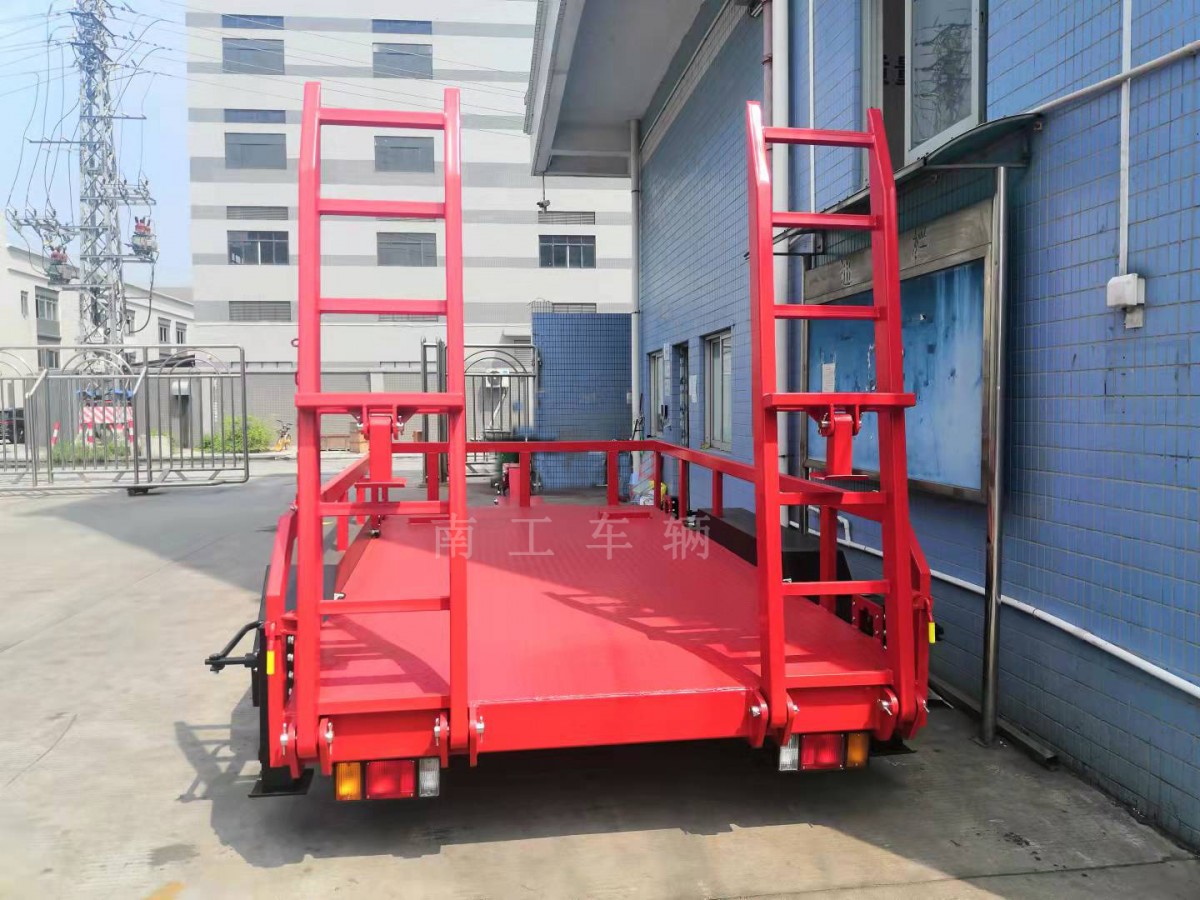

6. Rear with manual tilting boarding bridge, welded with 10MM threaded steel rods, equipped with three hooks and a rope tensioner on each side.

Color: Fire Red, mudguards in black.

The medium fire truck trailers produced by Foshan Nonggang Vehicle Manufacturing Co., Ltd. offer stable and reliable quality. The product can be custom designed to meet customer requirements. Please call 13924565726 for inquiries.
Application ScenarioThis trailer is suitable for transportation and周转 in industries such as airport luggage, fire fighting robots, hardware machinery, and generator equipment.
