Brand: NanGong, Model: NTGG05CBSM-24/45-4H, Load Capacity: 5 tons, Table Size: 4.5*2.438 meters, Net Weight: 1250 kg, Color: Black

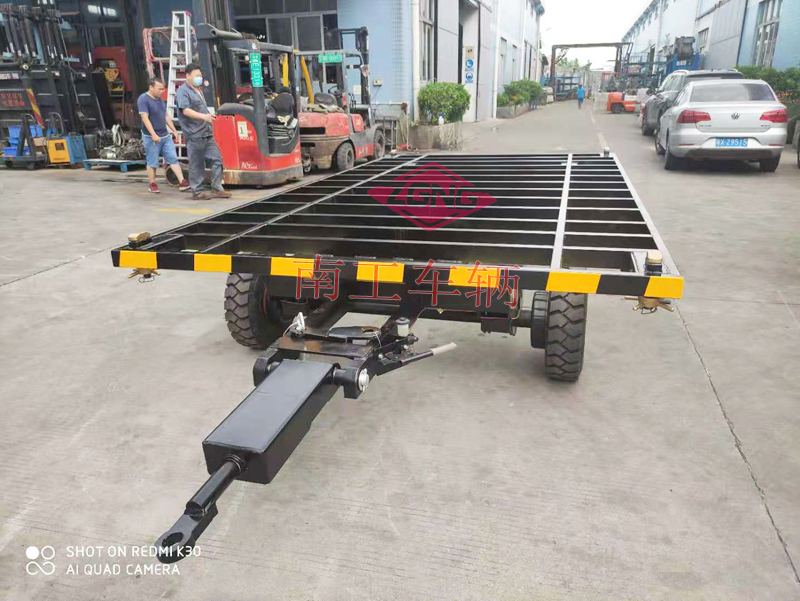

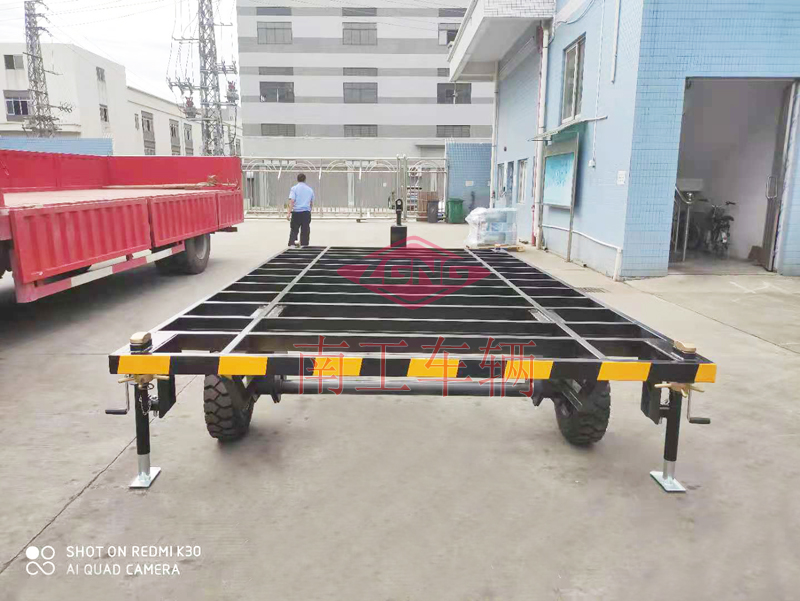

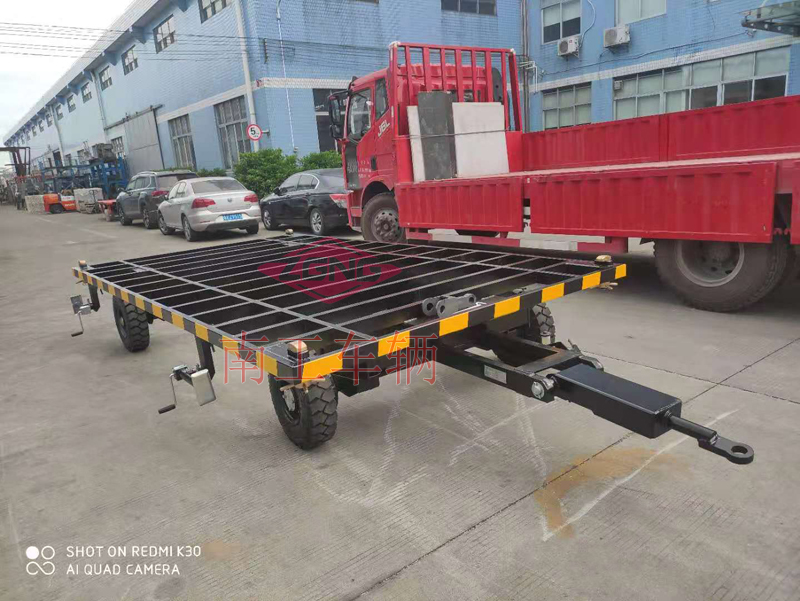

5-ton Skeleton Flatbed Trailer Mobile Home Chassis Detailed Specifications:

This vehicle has a carrying capacity of 5T, with a length of 4.5 meters, width of 2.438 meters, and height of approximately 0.8 meters.

2. The trailer main frame is constructed with steel welding, featuring a skeletonized platform without floorboards.

3. This vehicle comes with 4 models featuring 650-10 pneumatic tires, each capable of carrying a load of 1.6T, with a rated speed of 25KM/H.

4. Front wheels have a steering angle of 180 degrees to facilitate tight-radius turns.

5. This vehicle is designed with a suspension concept, capable of automatically adjusting the vehicle's level and tire load balance according to the road's flatness.

6. The steering mechanism is a turntable-type machine turntable assembly (5T), operates smoothly with a long service life.

7. The tow bar is adjustable with spring-buffing design.

8. This vehicle is equipped with a handbrake and spring suspension.

9. The vehicle is equipped with four manual swing legs around the perimeter.

10. Three single hooks, with connectors and pins.

11. Four corner lock clips installed on the platform (corner lock parts to be provided by the customer).

Color: Black with yellow warning stripes around the edges.

5-ton skeletal flatbed trailer mobile RV chassis, NanGong Vehicle, long-term non-standard customization. The flatbed trailer is self-powered, requiring a tractor or forklift for towing. Simple operation, affordable price!
Application Scenario: Trailers are used for short-distance transportation of stores, RVs, kiosks, container bodies, etc., with high load capacity, low cost, and fast shipping.
