Brand: Nangong, Model: NGTT20S-26/50-8S, Load Capacity: 20 tons, Deck Size: 5*2.6 meters, Net Weight: 4500KG, Color: Orange

20-ton, Non-Driven, Heavy Duty Flatbed Trailer Detailed Specifications:

The flatbed trailer features a single-section design with a carrying capacity of 20 tons. The main frame of the platform is made of 25# steel, the secondary beams are 14# steel, with a width of 2.6 meters, length of 5 meters, and height of approximately 0.9 meters.

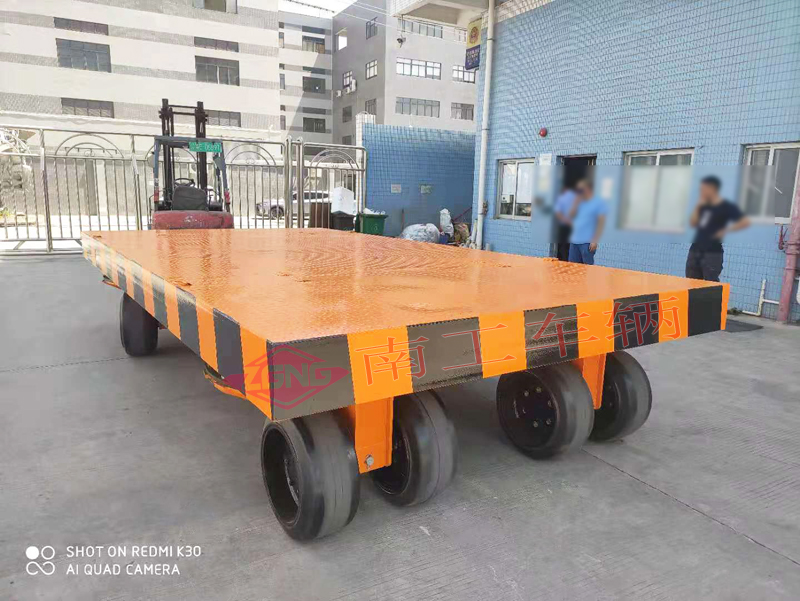

2. This vehicle comes with 8 maintenance-free tires, model 22-10-16 press-on solid tires, each wheel supporting 4 tons, with a driving speed of 15 km/h.

3. The axle features a swinging rigid suspension, which allows the axle to self-adjust the tire force points according to the road smoothness, ensuring balanced tire force distribution.

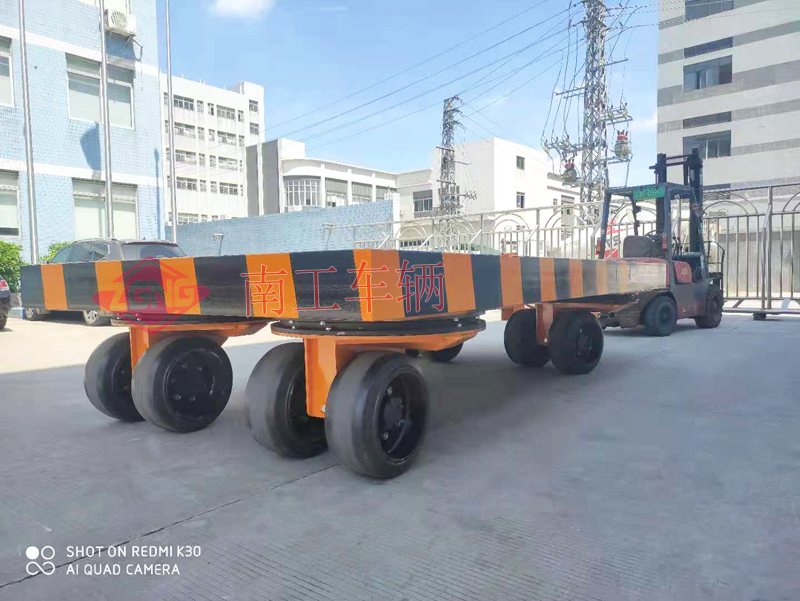

4. The steering mechanism consists of 4 independent rotating assemblies, each carrying a load of approximately (10T), with a rotation angle of 360 degrees, facilitating easy maneuvering in tight radii.

5. Each rotation mechanism can be independently limited, and the operation is simple, just by removing or inserting the limiting pin. If you need to use a flatbed truck separately, just secure the two rear wheel limits.

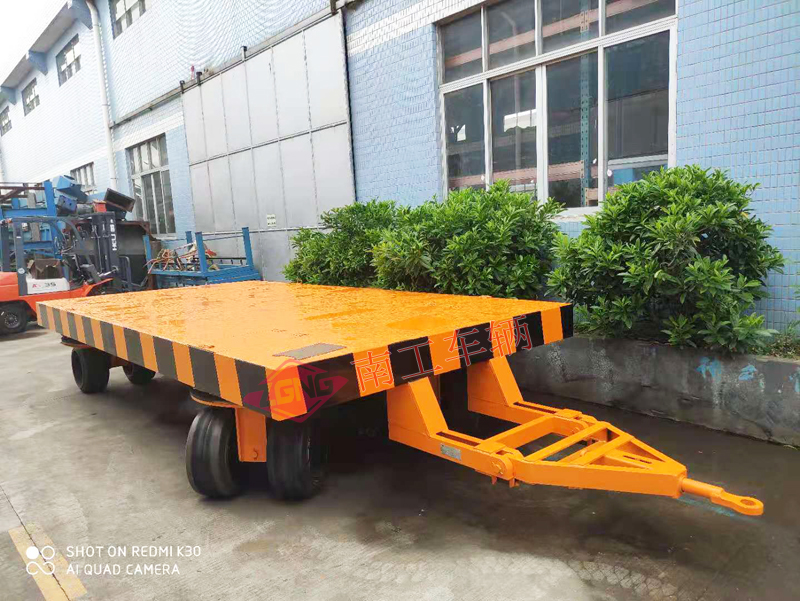

6. Equipped with a dual spring buffer tow frame for effective mitigation of shock forces between the trailer and flatbed during acceleration or braking, preventing damage to components and cargo.

7. Color: Orange with black and yellow alternating warning stripes around the edges.

20-ton non-powered trailer heavy-duty flatbed, Nanong brand, available for long-term custom production. Long service life design, affordable pricing, and quick shipment.
Application ScenarioHeavy-duty trailers are commonly used for the transit transportation of heavy products such as metallurgy, molds, and machinery, usually equipped with solid-tire design for easy maintenance and high load capacity.
