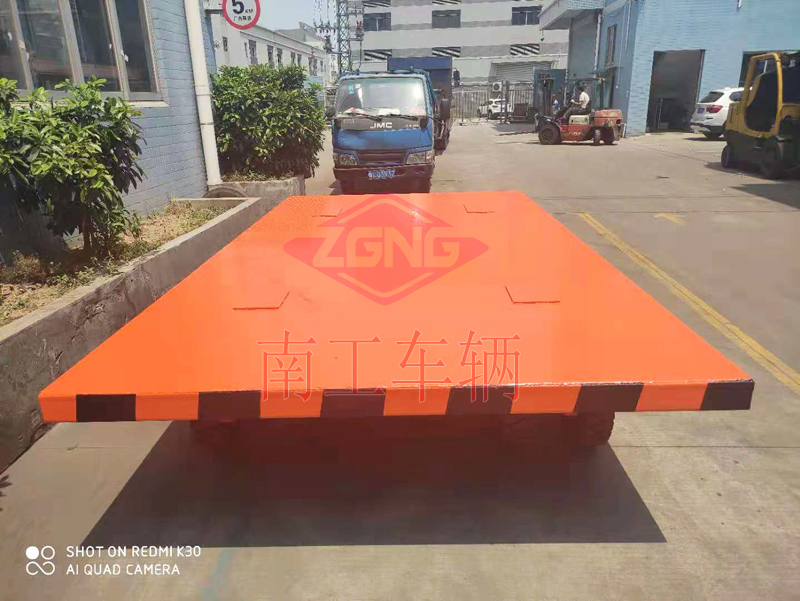

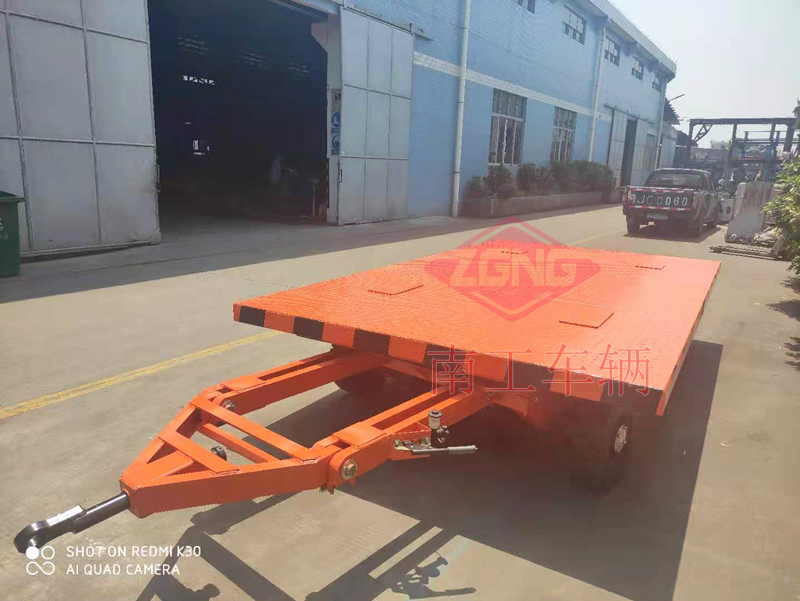

Brand: Nangong, Model: NGTT08B-22/40-8S, Load Capacity: 8 tons, Table Size: 4*2.2 meters, Net Weight: 1745KG, Color: Orange

8-ton flatbed trailer technical requirements: (to be executed according to the confirmed plan by both parties)

1. 8T load capacity, featuring a 10# I-beam for the main girder, an 8# I-beam for the auxiliary girder, and a 6mm thick patterned plate for the deck surface.

2. Platform Dimensions: 4000mm x 2200mm, height approximately 700mm.

3. The cargo boxes placed above the platform (customer-owned) are 2900*1700 mm in size. The bottom of the platform, where the legs are, is reinforced with an 8MM thick plate to prevent the platform surface from sinking due to leg compression.

4. Front wheel rotation angle is 180 degrees left and right, facilitating tight-radius turns and transportation.

5. The tow frame is 1.5 meters long, with an adjustable height to ensure a proper fit with the forklift's rear coupling mechanism.

6. The steering mechanism is an 8T disc-type swivel assembly, operating smoothly with a long service life.

7. Equipped with 8 solid tires of model 600-9, carrying capacity of 1.9 tons, and a rated speed of 15 km/h.

8. This vehicle is equipped with parking brake (hand brake, applies to both wheels).

9. Supply one connector, one plug.

Color: Orange with black warning stripes on all sides.

8-ton towing flatbed trailers, South Work, available for long-term customization according to customer requirements. Suitable for short-distance material transportation within the factory area, equipped with solid tires for heavy load capacity and flexible steering.
Application ScenarioFlatbed trailers are widely used in factories, workshops, warehouses, docks, railways, airports, etc., and are non-powered tool trailers that require a forklift truck for towing.
