Brand: NanGong, Model: NGRAT12M-120/26-2S, Load Capacity: 12 tons, Tires: 600-9, Color: Blue, Net Weight: 5380kg;

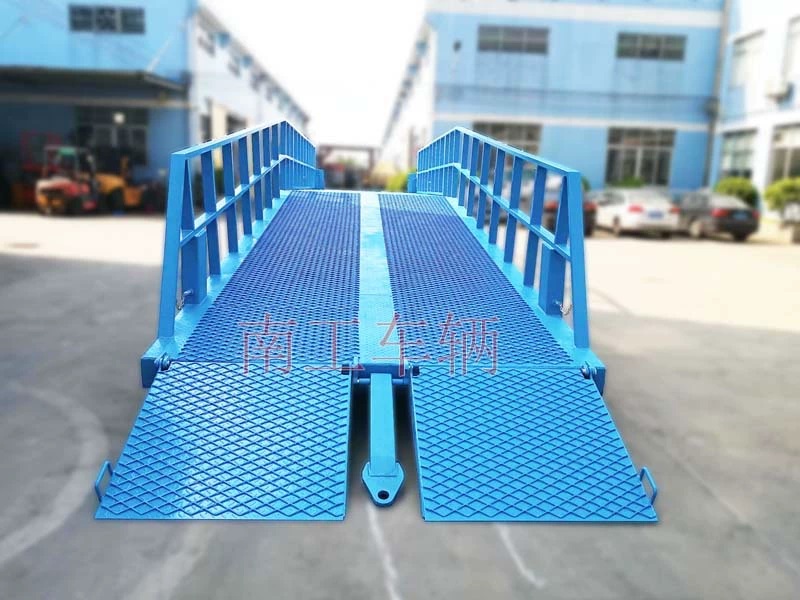

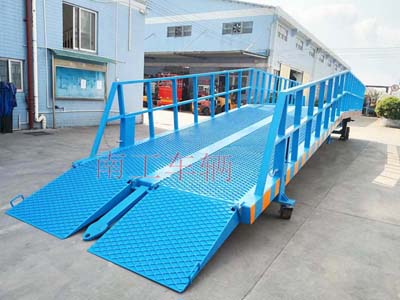

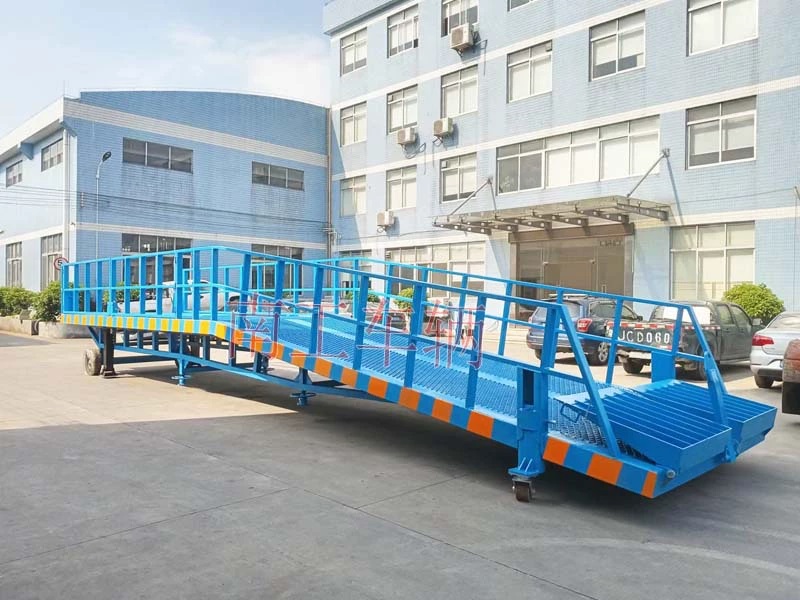

12-ton Mobile Boarding Bridge Detailed Specifications:
Rated Load: 12T
2. The main beam is constructed with 25# steel structural I-beams, the auxiliary beams with 18# steel structural I-beams, and the guardrails with 8# steel structural I-beams. The surface is covered with 6mm patterned plate + 6mm diamond-shaped anti-slip mat.
Sliding Net (excluding the 3-meter front platform and front transition board, which are not covered with diamond anti-slip netting).
3. Dimensions: Total length of countertop when opened is 13.5M, external width is 2.6M, platform height is 1.2M, guardrail height is 1M (guardrails on both sides of the platform are designed to open outward)
Gate structure), bridge deck length 6M, ramp length 6M, front transition plate length 0.5M, rear transition plate approximately 1M.
4. One set of mechanical stabilizer legs for a semi-trailer mounted bridge deck, load capacity 28T, adjustable height between 1200MM-1650MM.
5. Equipped with 2 solid tires of 600-9 in front of the boarding bridge.
6. Equipped with reversible swivel casters and a tow bar for easy forklift handling.

Color: Blue.

12-ton Mobile Boarding Bridge, heavy-duty loading and unloading platform, South Industry vehicles, long-term non-standard customization, high quality, competitive pricing, fast delivery. Widely used in postal services, grain, train stations, ports, and marine transportation industries.
Application ScenarioThe Nangong Mobile Boarding Bridge is an auxiliary equipment for cargo handling, used in conjunction with forklifts. It can adjust its height according to the height of the truck's cargo area, allowing the forklift to directly drive into the truck for bulk loading and unloading. With only one person operating, it achieves rapid handling of goods. This solution helps businesses reduce labor costs, enhance work efficiency, and achieve greater economic benefits.
