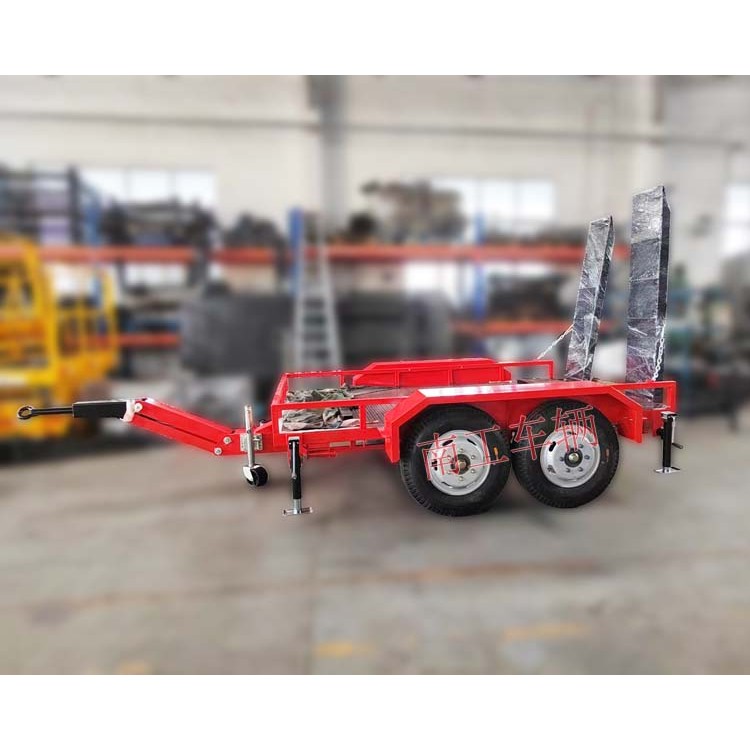

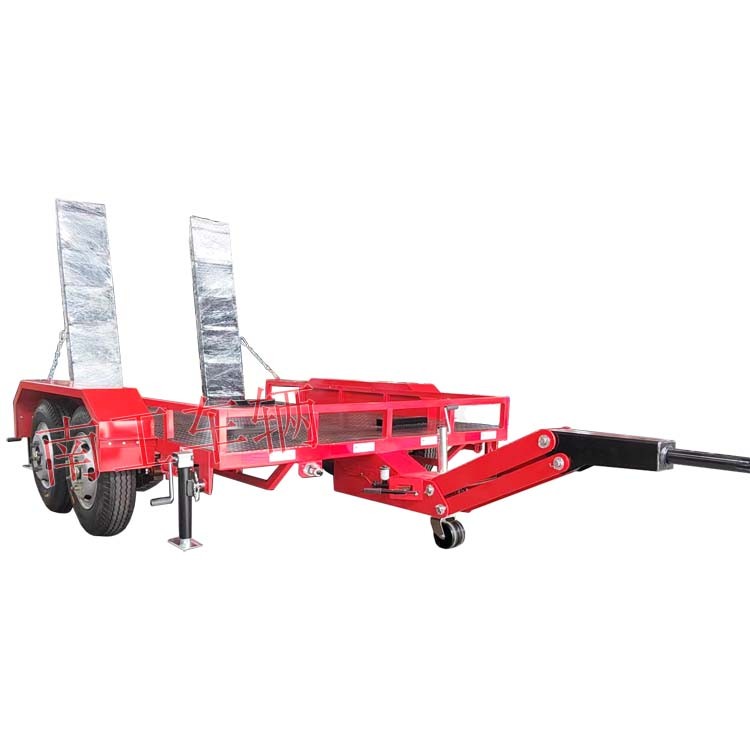

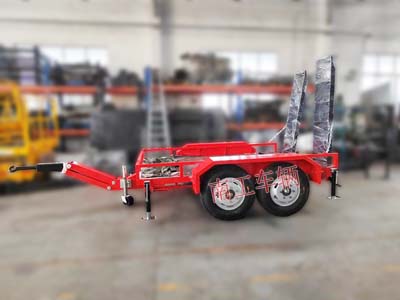

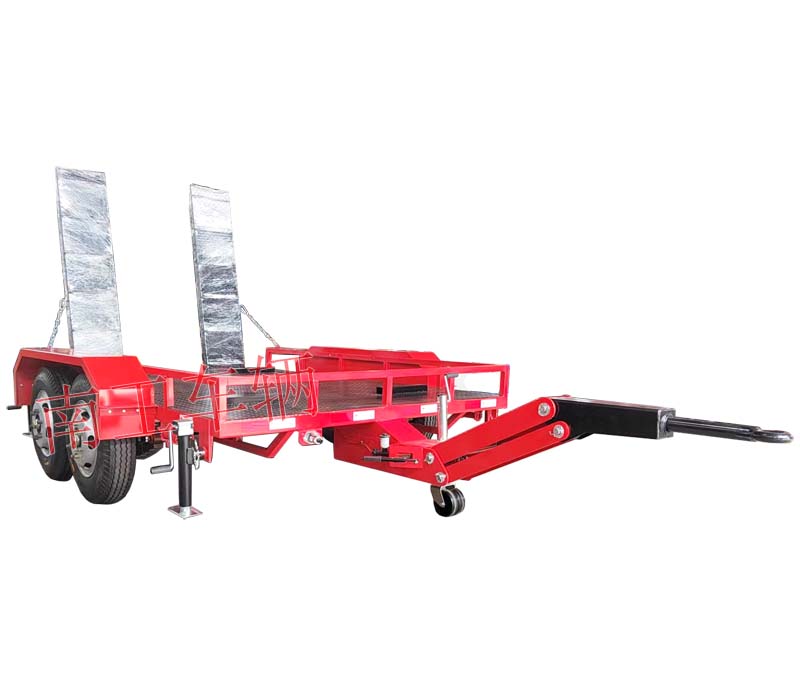

3-ton fire fighting robot trailer
Brand: NanGong, Model: NGTT03BSM-21/30-4H, Material: Q235 steel, Load Capacity: 3 tons, Chassis Size: 3*2.1 meters, Net Weight: 1.2 tons, Color: Red and black mixed.
3-ton fire fighting robot trailer detailed technical requirements: (to be executed according to the confirmed plan by both parties)
1. Vehicle Load Capacity: 3 T
Platform dimensions: Length 3 meters, width 2.1 meters.
3. Frame Material: Welded 8# steel, with a 4mm thick patterned plate laid on the truck body platform surface.
4. Ladders: The rear is equipped with two flip-up ladders for easy machine ascent (specific dimensions to be confirmed by the customer); the ladder surface is welded with round steel to prevent slipping.
5. Guardrail: The vehicle is equipped with three fixed square tube guardrails on the front, left, and right sides, each measuring 200mm in height.
6. Leg Support: Equipped with four mechanical legs around the vehicle, the front tow frame comes with a set of swivel wheels for parallel support of the vehicle during regular use.
7. Tires: Equipped with 4 700-16 pneumatic tires, each wheel can carry up to 1300KG, suitable for speeds up to 80KM/H.
8. Limiting Device: Four 300MM long No.8 channel steels are welded inside the carriage for equipment limitation (specific dimensions provided by the customer).
9. Braking: Parking brake (hand brake, apply to front two wheels)
10. Shock Absorption: Leaf spring shock absorption (all four wheels)
11. Tensioners: Each body side is equipped with 3 tensioners and tie-down hooks.
12. Supply a connector and plug, and apply reflective stickers around the vehicle body.

Color: Red and black mixed.
