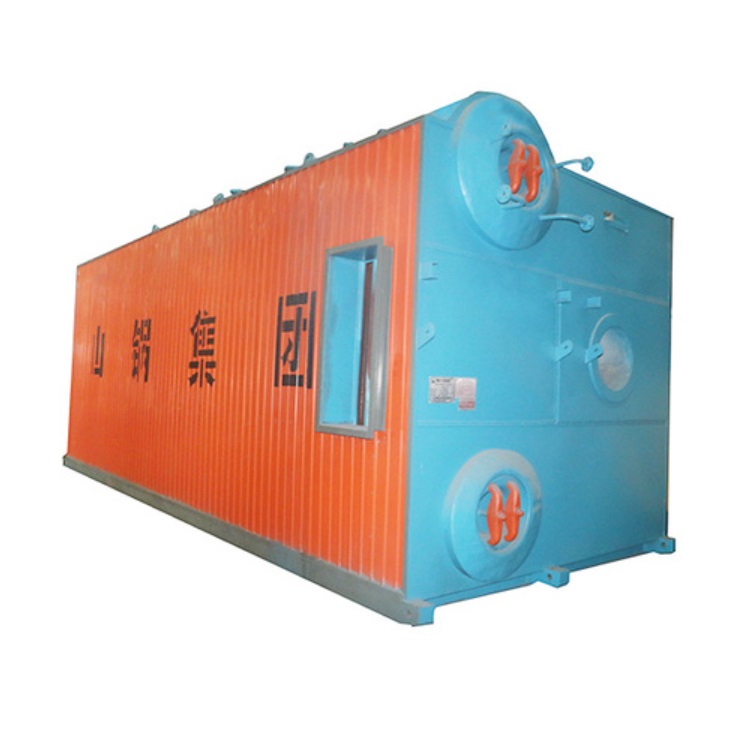

SZSOperation Principle of the Steam Boilers Series:
SZSSeries steam boilers utilizeDType layout, with matching imported automatic burners and advancedPLCComputerized control system with automatic continuous water feeding, programmed ignition, proportional temperature control combustion, flame-out protection, various alarms, chain protection, graphical operating interface, large-screen keyboard operation, etc., integrating advanced technology, processes, and years of actual boiler operation experience from both home and abroad, and self-designed and manufactured large-scale water pipe boilers. Optional imported burners are available, offering price advantages while maintaining the same level of automation.
SZSSeries Steam Boiler Product Features:
1In the design process, comprehensively consider flue gas flow and steam/ Water circulation characteristics, flue gas flow status, flue gas washing surface form, and equipment flue gas pressure loss parameters; optimize the design of the radiation, convection, and tail heat recovery surface structures and material selection for their impact on heat transfer efficiency and safety.
2Utilizing high thermal resistance and lightweight insulating materials, the thermal insulation effect is superior to traditional refractory concrete./Insulating fire bricks provide excellent thermal insulation, significantly reducing the total weight of the furnace. Unique thermal radiation insulation measures (heat reflective film) are set within the insulation layer to minimize radiation heat loss that is often overlooked in traditional insulation processes.
3Unique design and technology of drums and diaphragm walls are employed to effectively compensate for thermal expansion and contraction during the boiler's operation, enhancing its stability and lifespan.
4Utilizing a full-membrane wall structure, the boiler achieves micro-positive pressure operation on the flue gas side, minimizing air leakage losses without the need for a wind guide device.
5Boiler water level, pressure, exhaust gas temperature, furnace pressure, gas leakage, abnormal air pressure, and auxiliary equipment operational anomalies are all equipped with multiple interlock protection settings.
