Product Introduction
Spray drying is a widely used process in the liquid process forming and drying industry. It is suitable for producing powdered or granular solid products from solutions, suspensions, and paste-like liquid raw materials. Therefore, it is an ideal process when the particle size distribution, residual moisture content, bulk density, and particle shape of the finished product must meet specific standards.

Operating Principle

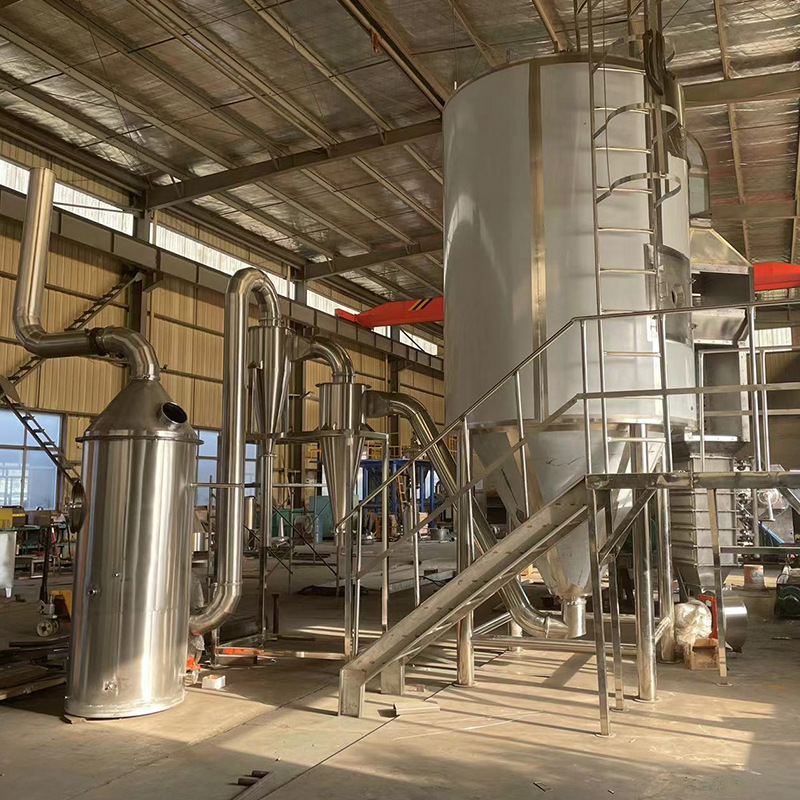

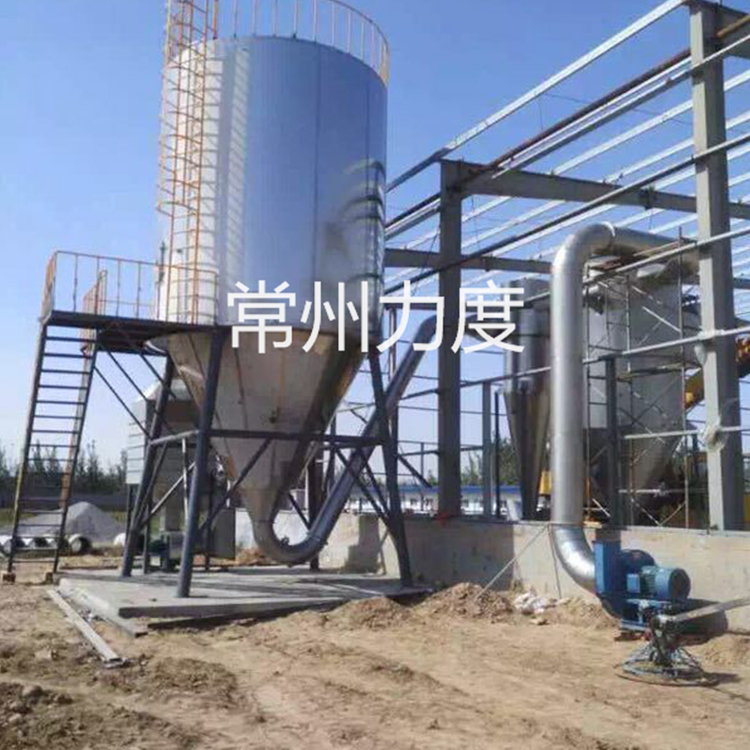

Air is filtered and heated, then enters the top air distributor of the dryer, where it uniformly spirals into the drying chamber. The liquid material is processed by a high-speed centrifugal atomizer at the top of the tower, (rotating) atomized into extremely fine mist droplets, which then come into contact with the hot air and dry into finished products in a very short time. The finished products are continuously discharged from the bottom of the drying tower and the cyclone separator, while the exhaust gases are exhausted by the fan.

Performance Features
Fast drying speed, the liquid is atomized to greatly increase its surface area. In the hot air stream, 95%-98% of the moisture can evaporate instantly, with the drying process taking only a few seconds, especially suitable for drying heat-sensitive materials.
The product boasts excellent uniformity, fluidity, and solubility, with a high purity and superior quality.
Production process simplified, operation control convenient. Liquids with moisture content of 40-60% (special materials up to 90%) can be dried into powdered particles in one step, eliminating the need for crushing and screening, reducing production steps, and improving product purity. Particle size, bulk density, and moisture content can be adjusted within a certain range by changing operating conditions, making control and management easy.

Suitable materials
Chemical Industry: Sodium (potassium) fluoride, alkaline dyes and pigments, dye intermediates, compound fertilizers, formaldehyde silicate, catalysts, sulfuric agents, amino acids, and white carbon black, etc.
Plastic resins: AB, ABS, urea-formaldehyde resin, phenolic resin, melamine (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.
Dairy Industry: High-fat milk powder, blood powder, egg white (yellow), and other ingredients.
Food & Plants: Oats, chicken broth, coffee, instant tea, flavored meat spices, protein, soybeans, peanut protein, hydrolysates, etc.
Sugars: Corn syrup, cornstarch, pectin, maltose, potassium sorbate, etc.
Ceramics: Aluminum oxide, tile materials, magnesium oxide, talcum powder, etc.

Technical Specifications

Note: The evaporation rate is related to the properties of the material and the hot inlet and outlet temperatures. When the outlet temperature is 90^oC, the moisture evaporation curve can be seen in the figure above (for selection reference). Please note that due to continuous product updates, parameter changes may occur without prior notice.
Order Instructions
Product Name, Physical Properties: Solid Content (or Water Content), Viscosity, Surface Tension, pH Value.
After drying, powder capacity, allowable residual moisture content, particle size, allowable high temperature.
Output, daily class start times.
Available Energy: Steam pressure availability, electrical capacity, coal, oil, and gas supply capacity.
Control Requirements: Is self-control required for import and export temperatures?
◎Powder Collection Requirements: Whether to install a bag filter, environmental requirements for exhaust emissions.
◎Other special requirements.
