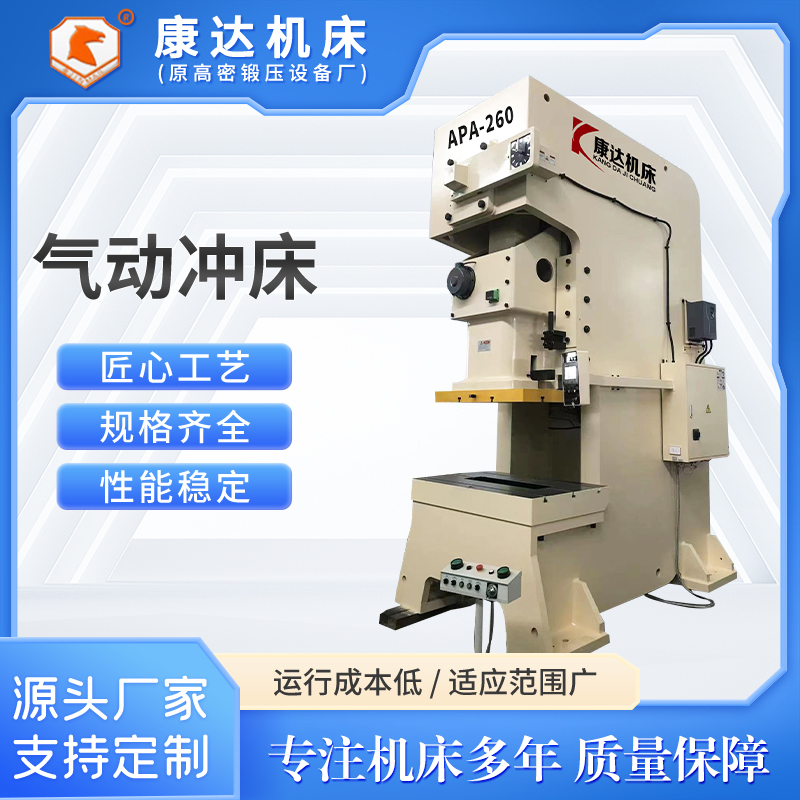

| Name | APA—260 |
| Tons | 260 |
| Position of Impulse Occurrence/mm | 7 |
| RPM per minute | 20-40 |
| Speed of travel/s.p.m. | 30 |
| 行程/mm Travel Distance/mm | 40-200 |
| Closed working height/mm | 520 |
| Slider adjustment range/mm | 120 |
| Top workbench size/mm | 950x700x100 |
| Below workbench size/mm | 1500x840x180 |
| Mold hole / mm | Φ65 |
| Main Motor/kw.p | 22x4 |
| Slider adjustment structure/HP | Manual operation |
| Utilize air pressure/kg/cm² | 6 |
| CNC Punching Precision | GB(JIS) 1st class |
| Press Brake (Length x Width x Height) / mm | 2780x1850x4470 |
| Press Weight/Tons | 32 |
| Mold Core Capacity/Ton | 14 |
| Mold pad travel length/mm | 100 |
| Effective Mat Area/mm² | 810x480 |
