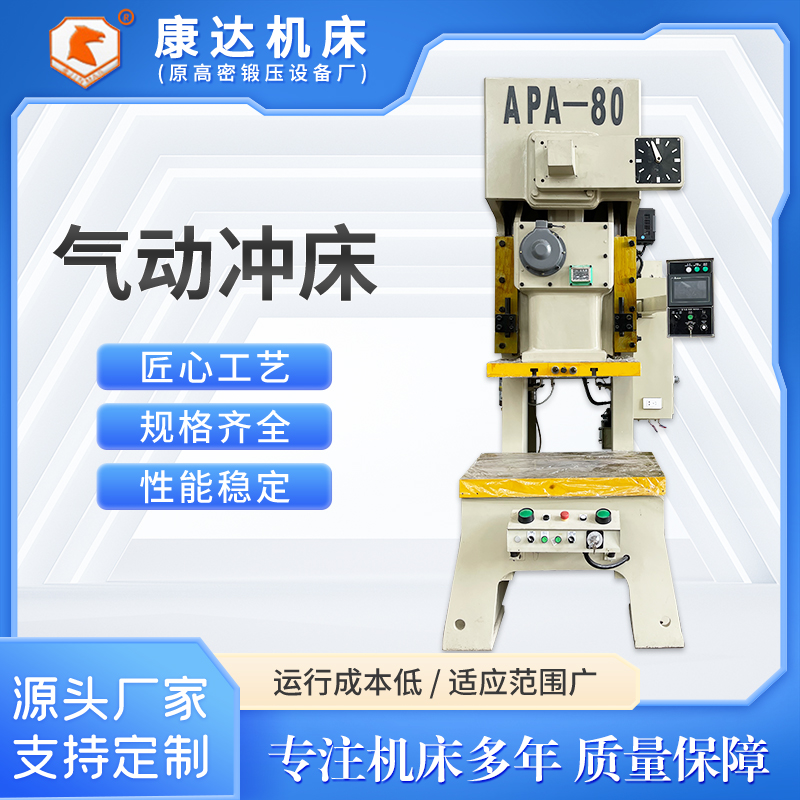

| Name | APA—80 |
| Tons | 80 |
| Location of Impulse Occurrence/mm | 4 |
| Every minute, variable speed/s.p.m. | 35-80 |
| Speed of Rotation/s.p.m. | 65 |
| Track/mm | 25-120 |
| Closed working height/mm | 340 |
| Slider adjustment range/mm | 80 |
| Workbench Size/mm | 560x420x70 |
| Below workbench size/mm | 1000x550x90 |
| Mold hole / mm | Φ50 |
| Main Motor/kw.p | 7.5x4 |
| Slider Adjustment Structure/HP | Manual operation |
| Air pressure: kg/cm² | 6 |
| CNC Punching Precision | GB(JIS) 1 Class - First Grade |
| Press Brake (Length x Width x Height) / mm | 1800x1180x2980 |
| Press Weight/Tons | 6.5 |
| Mold Mat Capacity/Ton | 3.6 |
| Mold pad travel length/mm | 70 |
| Effective Mat Area/mm² | 450x310 |
