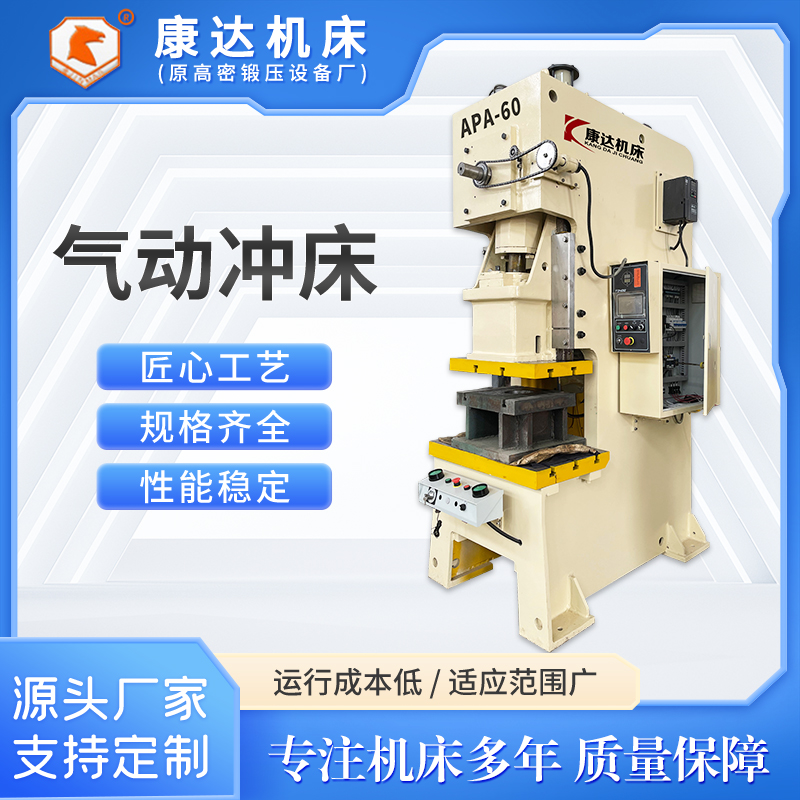

| Name | APA—60 |
| Tons | 60 |
| Location of Impulse Occurrence/mm | 4 |
| Every minute, variable speed/s.p.m. | 35-90 |
| Revolution per minute / rpm | 65 |
| Travel distance/mm | 20-100 |
| Closed Working Height/mm | 310 |
| Slider adjustment range/mm | 75 |
| Top workbench size/mm | 500x360x70 |
| Below desk dimensions/mm | 900x500x80 |
| Mold hole / mm | Φ50 |
| Main Motor/kw.p | 5.5x4 |
| Slider adjustment structure/HP | Manual operation |
| Air pressure: kg/cm² | 6 |
| CNC Punching Precision | GB(JIS) 1st class |
| CNC Punch Press (Length x Width x Height) / mm | 1595x1000x2800 |
| Press Brake Weight/Tons | 5.6 |
| Mold Core Capacity/Ton | 3.6 |
| Mold pad stroke length/mm | 70 |
| Effective Mat Area/mm² | 350x300 |
