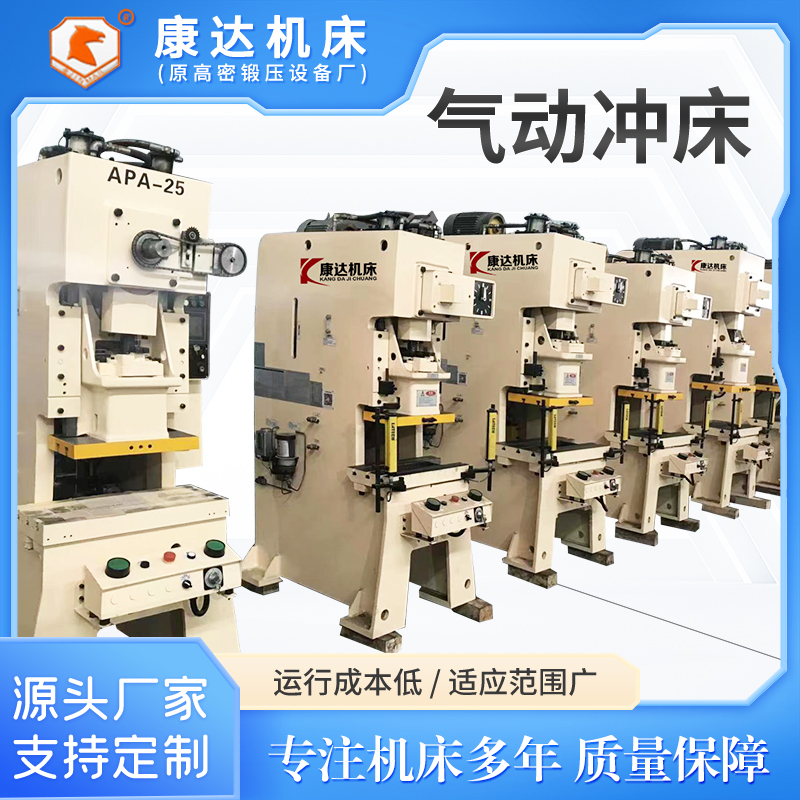

| Name | APA—25 |
| Tons/Ton | 25 |
| Location of Impulse Occurrence/mm | 3.2 |
| Every minute, variable speed/s.p.m. | 60-140 |
| Speed of travel/s.p.m. | 110 |
| Track/mm | 12-60 |
| Closed working height/mm | 200 |
| Slider adjustment range/mm | 50 |
| Top workbench size/mm | 300x230x50 |
| Next workbench size/mm | 680x300x70 |
| Mold bushing hole/mm | Φ38.1 |
| Main Motor / kW.p | 3.7x4 |
| Slider adjustment structure/HP | Manual operation |
| Air pressure: kg/cm² | 6 |
| CNC Punching Precision | GB(JIS) 1st class |
| Press Brake (Length x Width x Height) / mm | 1280x850x2200 |
| Press Weight/Tons | 2.1 |
| Mold Core Capacity/Ton | - |
| Mold pad stroke length/mm | - |
| Effective Area of Molding Pad/mm² | - |
