Product Introduction
A nitrogen generator is an advanced gas separation technology that produces high-purity nitrogen by separating air using imported Korean membranes. After being compressed and filtered by a compressor, the air enters a high molecular membrane filter. Due to the varying solubility and diffusion coefficients of different gases in the membrane, the relative permeation rates of different gases through the membrane are different. Under certain pressure conditions, the separation of oxygen and nitrogen is achieved by utilizing the different permeation rates of these gases with different properties in the membrane. Compared to other nitrogen production equipment, it features a simpler structure, smaller size, no switching valves, less maintenance, and faster gas production.(≤3Minute)Easy scalability and other advantages.
Application Fields
Industrial Manufacturing: Protective gases for metal processing (welding, annealing, brazing), prevention of component oxidation in electronic semiconductor production, inert environment reactions and material handling in the chemical industry.
Food & Pharma: Oxygen-Modified Packaging for snacks, beverages, and fresh produce; pharmaceutical packaging, aseptic production environment in the pharmaceutical industry, solvent recovery in the manufacturing process.
Laboratory Research: Carrier gases for gas chromatographs and mass spectrometers, inert atmosphere cultivation for material studies, and creation of anaerobic environments for sample preservation.
Other fields: Preventing oxidation in the vulcanization process of rubber tire production, drilling and well maintenance operations in natural gas extraction, powder protection and shaping assistance for 3D printing.
Key Features
1.Can replace high-pressure nitrogen cylinders, instrument the laboratory, and ensure safety.
2.Fully automated process control, easy operation, and convenient daily maintenance.

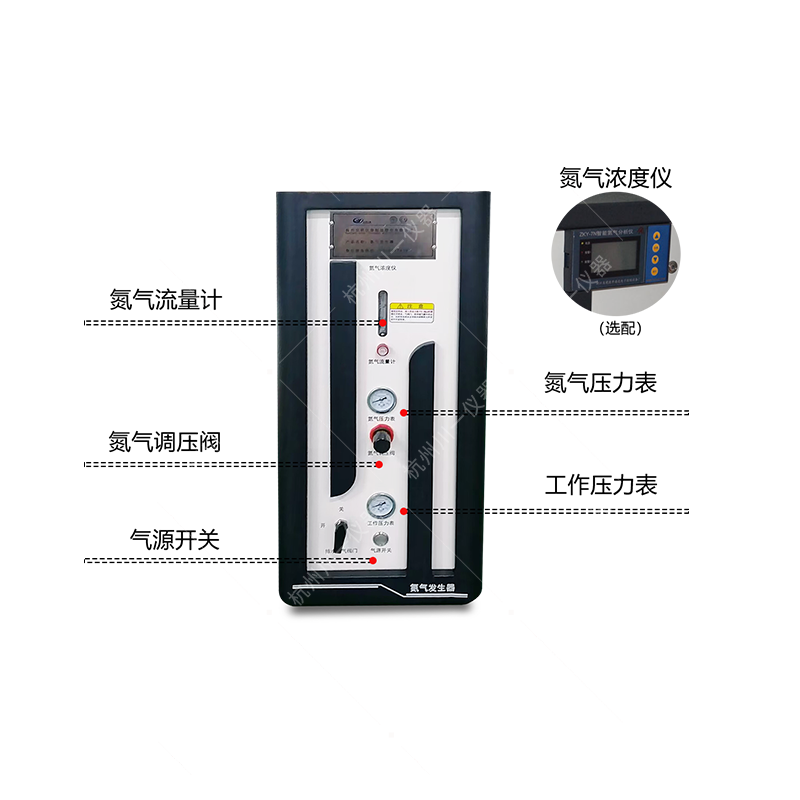

3.Digital display of nitrogen purity for easy observation of instrument operation and fault diagnosis. (Optional)
4.Long lifespan, capable of continuous or intermittent use, stable gas production without degradation.
5.Programmatically controlled intelligent self-diagnosis function and service prompt function for easy maintenance
6.Highly integrated modular structural design, saving lab space
7.The system is equipped with an integrated pressure tank stabilizing unit, featuring an international standard safety valve design.
8.caster-equipped, mobile design for easy maneuverability
Product Specifications
