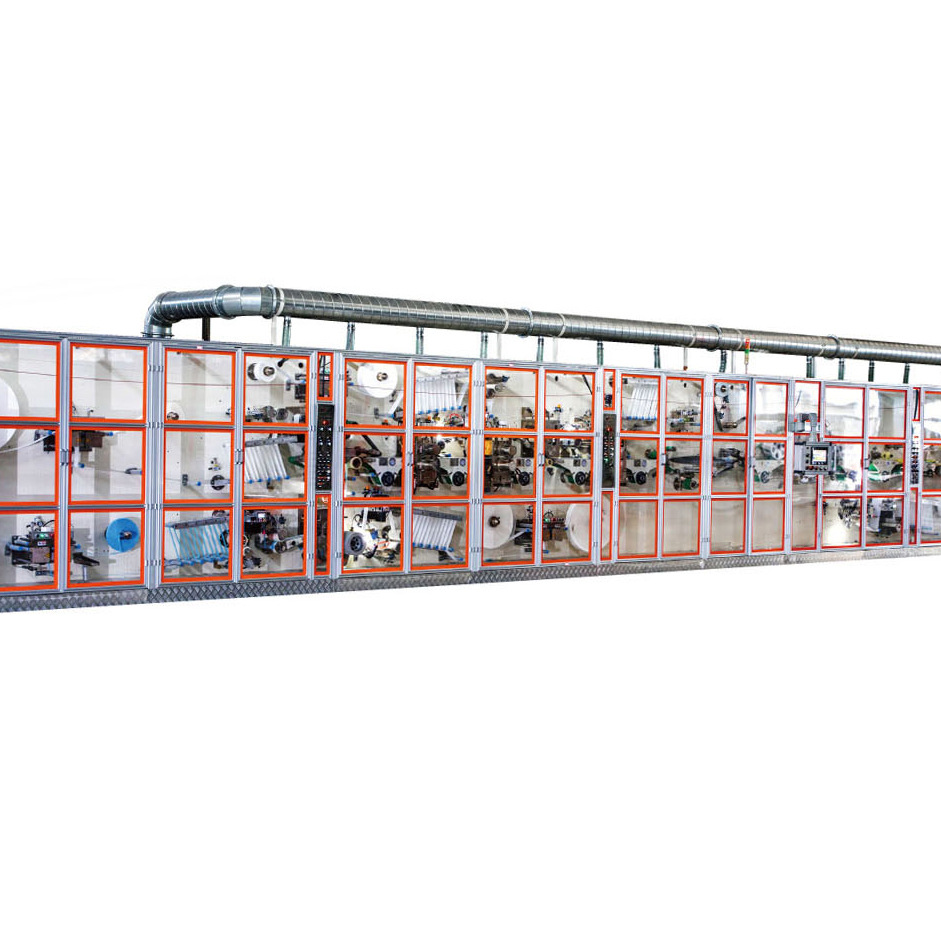

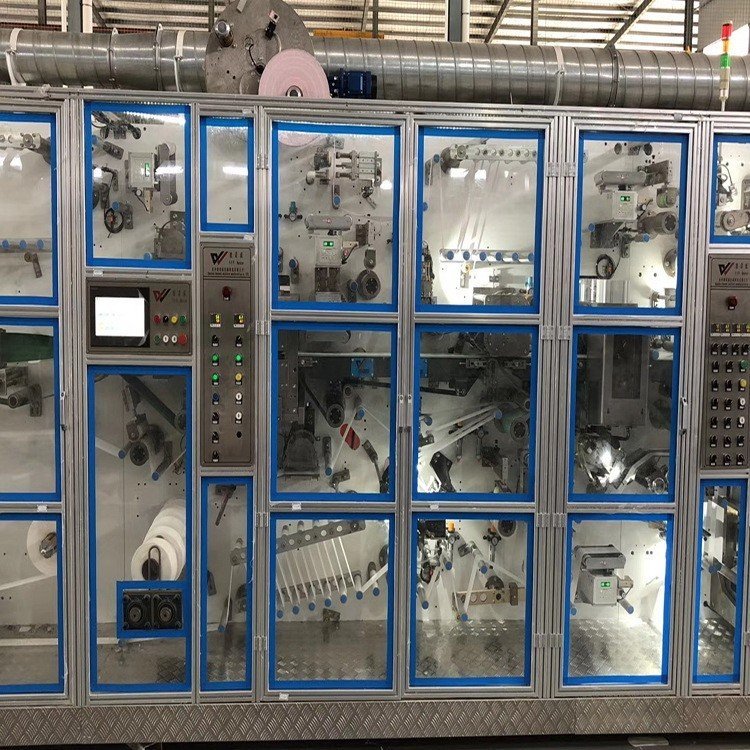

Full servo high-speed quick-pack sanitary napkin production line customization, how much is one full-automatic sanitary napkin machine, automatic packaging production.
Main Parameters
| Overall Dimensions (Footprint) | 30x6x3.5（M） |
| Machine Dimensions | 26.5x6x2.3（M） |
| Design Speed | 1200 pieces per minute |
| Stable Production Speed |
800-1000 pieces per minute |
| Product Yield | Greater than or equal to 97% |
| Power Supply | 380V，50Hz |
| Machine Capacity | Approximately 250 kW |
| Air Pressure | 0.6—0.8MPa |
| Total Weight, Machine Weight | Approximately 40T |
Production Line Configuration
Product Specifications (Production Size): Customer-Specified
Product Structure: toilet paper, cotton core (SAP blend) or absorbent paper, top non-woven fabric, side non-woven fabric (three-piece), blue chip guide layer non-woven fabric, bottom film, back release paper, combined wing release paper, small packet film
Control System: PLC controlled, featuring a touch screen human-machine interface with a high-definition TV monitor
Drive System: Servo drive, imported components used for synchronous belts, and imported bearings are employed in critical areas.
Tension System: Equipped with tension unwinding system, constant tension control, and material storage mechanism, as well as material alignment system. This constant tension system ensures stable material collection at full speed, reduces the impact on material tension, and minimizes downtime.
Safety System: Equipped with safety protection devices on the operating surface, featuring an emergency stop switch and safety signage. The rear transmission is fitted with a safety pull cord, and high-frequency fans are equipped with soundproofing or noise reduction devices.
Material Corrective System (MCS): BST Corrective Unit (Optional)
