Product Description

Wide Application Range

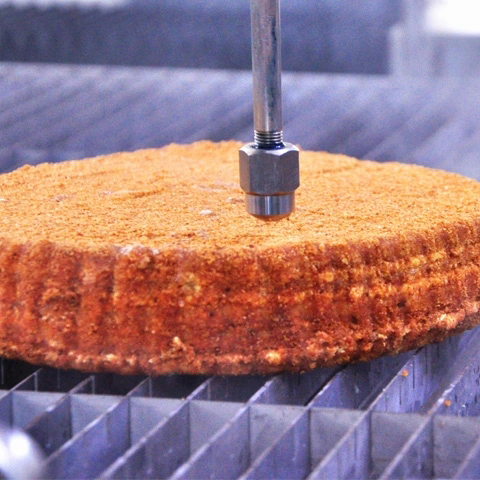

Water jet cutting can be used for various desserts such as pizzas, cookies, seaweed, and also for cutting meats, fish, vegetables, and frozen foods.

Safety & Cleanliness
During the waterjet cutting process, food comes into contact only with pure water, eliminating the risk of contamination from traditional cutting tools and there is no heat generated or any chemicals added. Sanitation during the cutting process is guaranteed. Typically, the size of the waterjet stream is the same as human hair, with a speed of up to 900 meters per second. The resulting incision is extremely thin, ensuring the food is not compressed or washed away. No molds are required.

Simple to operate
It's easy to obtain machining graphics through drawing software (AutoCAD). After importing the graphic program into the computer via a USB drive or network, you can select preset programs on the touch screen to obtain various machining shapes without any molds or tools. The operation is simple and efficient.

High production efficiency, time-saving
The cutting quality depends on the type of product, temperature, and cutting speed. The average cutting speed is about 3-5m/min, and it can reach up to 10m/min when cutting mousse or biscuits. A major advantage of water jet cutting is that using pure water for food cutting saves time. Since blades are never used, there's no need to stop for blade changes or sharpening.

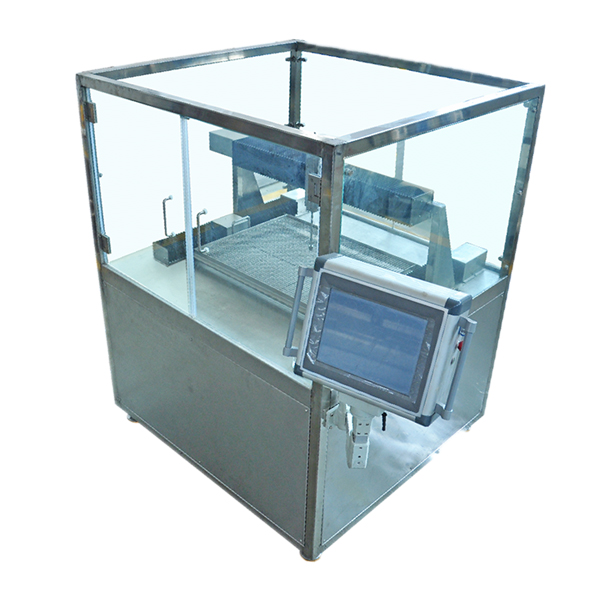

Model: YCWJ-0806F
Table Structure:
- Made from food-grade stainless steel for hygiene and reliability. The fully enclosed glass cutting area ensures a clean and dust-free environment. Under LED lighting, we can clearly observe the cutting process.
Window opens and closes automatically, secure and smart.
SS collection troughs can concentrate waste residue and wastewater after cutting.
- The portable window cleaning operation is simple and convenient.
The pure water cutting head is easy to maintain.

Dissemination:
- Utilizes AC servo system for higher precision.
Linear guides and ball screw modules are durable and long-lasting.
Effective Cutting Dimensions: 800mm x 600mm x 200mm
- High idle speed: 8000 mm/min
Large cutting speed: 5000 mm/min

Dimensions: 1800×1450×1900mm
Weight: 800 kg

Detailed Information on the Watch

CNC Controller

Process Flowchart

Food Cutting Solutions
