Electro-hydraulic Sluice Gate, Coal Storage Arch-shaped Discharge Valve, YEZ-600 Electro-hydraulic Sluice Gate
Pit gates are suitable for bulk density≤2.5t/m3A variety of ore, coal, coke, slag, chemical products, and other bulk materials, widely used for bottom discharging in storage facilities across industries such as building materials, metallurgy, chemicals, and glass.
Structural Features:
Lip gate is made of carbon steel welded into shape, with a structure Operates flexibly and reliably without any jamming. Equipped with different transmission systems, it can meet various operational requirements. The electric jaw gate is fitted with an electric push rod featuring an overload protection device, preventing motor burnout. It can be remotely controlled or programmed, and its reciprocating stroke can be Position adjustable with self-locking feature. The electro-hydraulic jaw gate uses electro-hydraulic push rods and is fully hydraulic driven, allowing for stepless adjustment of both pushing and pulling forces. The pneumatic jaw gate employs pneumatic push rods, which can be remotely controlled through accessories or locally controlled on-site.SEFFor manual,DEFFor electricYEFFor electrohydraulic operationQEFPneumatic.
Performance Parameters:
Applicable Temperature(℃) | Bulk Densityt/m3） | Applicable Medium | ||||||||||
≤300 | ≤2.5 | Crystalline solids, coal, coke, slag, chemical products, and various ores | ||||||||||
Operating Principle:

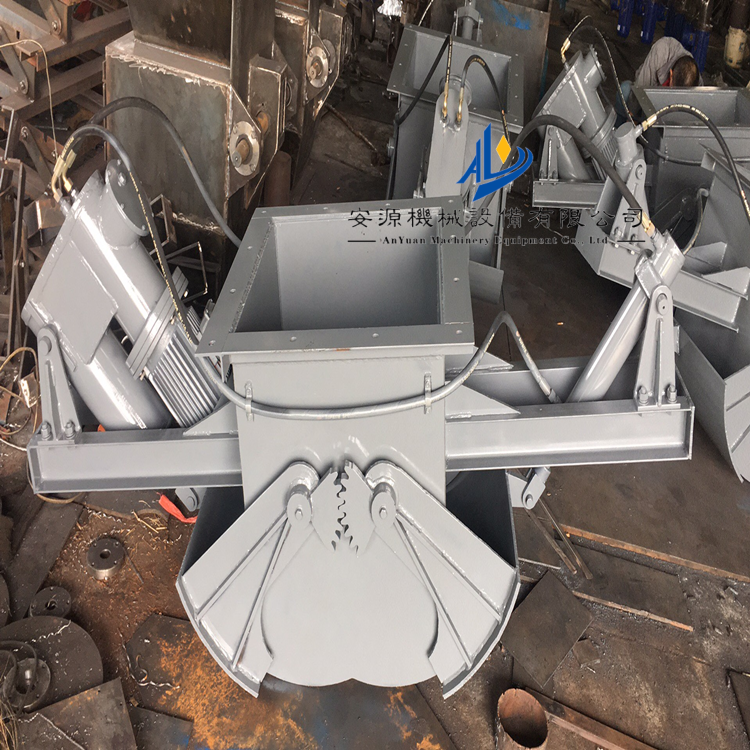

The gate valve consists of components such as the main body, wing-shaped gate plate, shaft, gears, sealing pairs, and actuator. A hand or actuator pushes the lever, causing the gears to rotate the wing-shaped gate plate around the shaft, opening both plates to the sides, allowing the material to fall. After the receiving device is fully loaded, the actuator moves the lever again to reset the wing-shaped gate plate, closing off the falling material.
Instructions for Use:
l Please note the medium flow direction marked on the gate body during installation. When connecting the flanges, it is necessary to add sealing washers, and then tighten the bolts evenly.
l Please identify the switch direction of the butterfly gate during operation, and properly connect the actuator's wiring.
l Regularly apply lubricant to all transmission parts during operation.
