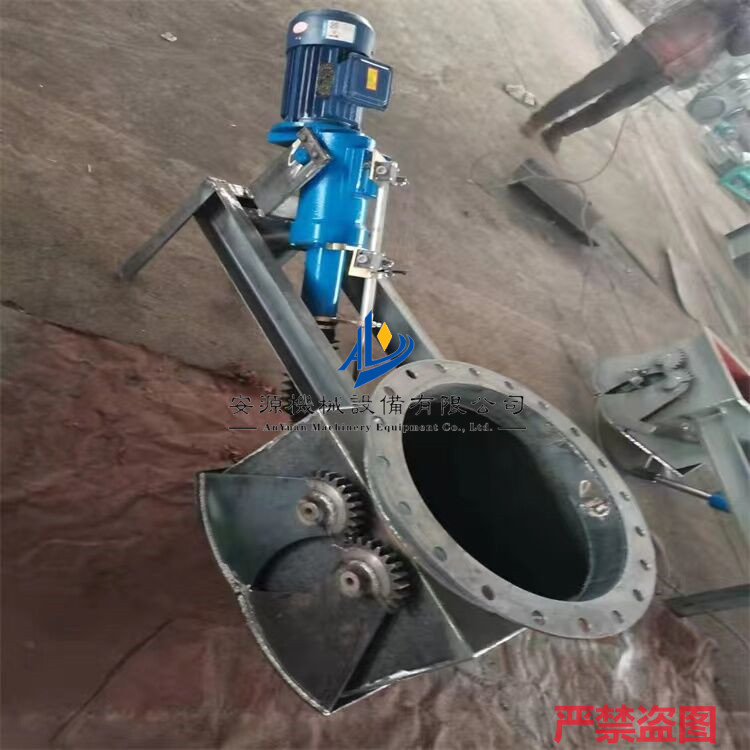

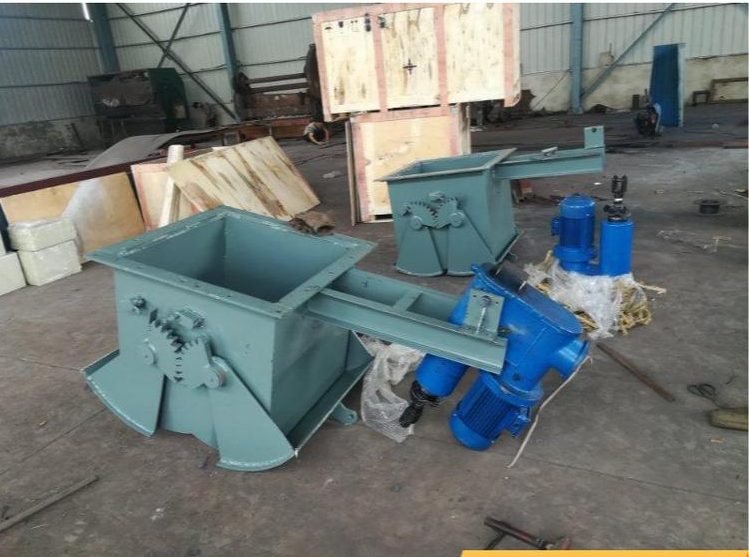

Electro-hydraulic fan-shaped ash discharge gate, Palate-type discharge valve, Coal storage material flow valve
Application
This series of radial gate is widely used in industries such as building materials, metallurgy, mining, electricity, chemicals, light industry, and grain, serving as the unloading control device for various material discharge systems.
·
Structural Features
The gate structure is simple, utilizing Welded from steel plate, driven by electro-hydraulic rods, operates smoothly with low failure rate, capable of quickly cutting off the material flow.
Performance Parameters
Applicable Medium | Suitable Temperature | Medium Flow Rate | Power Voltage | Electro-hydraulic Push Rod Model |
Crystals, solid particle materials, powdered materials | ≤300℃ | ≤28m/s | 380V50HZ | DYT Series |
1. DSZ-A(B)-1 typeElectro-hydraulic sector gate
2. DSZ-A(B)-Ⅱ TypeElectro-hydraulic sector gate
3. 3.TDSZ-□Electro-hydraulic sector gate
4. Section 1: Hydraulic Product Line:
5. DYT, XDG Electro-Hydraulic Push Rods (Overall Vertical Electro-Hydraulic Push Rods, Parallel Electro-Hydraulic Push Rods, Separable Electro-Hydraulic Push Rods, Overall Vertical Mini Electro-Hydraulic Push Rods); DT Electric Push Rod; DYHG Electro-Hydraulic Angular Travel Actuator (Electro-Hydraulic Angular Actuator); YZ Hydraulic Station, HSG Hydraulic Cylinder; Standard Hydraulic Cylinder for Metallurgical Equipment; DYQP Hydraulic Hoist, etc.
6. Section 2: Bulk Material Series:
7. DSZ Electro-hydraulic Butterfly Gate; DSF, DCSF, DBSF Electro-hydraulic Three-way Diverters; DEZ, DYEZ Electro-hydraulic Jaw Gates; DPZ/SLV Electro-hydraulic Sluice Gates (Sluice Valves); CLD Weighing Hopper; LB Single and Double Layer Rod Valves; Electro-hydraulic Louvered Circular/Window Valves; Diverting Valves and Various Material Discharge Valves.
