Portable funnel dischargeGate valve  Electro-hydraulic Double-acting Push RodE-typeEquipment

I. Hefei Valve Operating Principle:

The鄂式valve can be manually operated or actuated by an actuator to move a lever, which in turn drives the gear to rotate the sector gate around the axis. This causes the two sector gates to open to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate, closing off the falling material. The jaw gate valve is suitable for dry bulk materials with a specific gravity of 2.5t/m³, including various ores, coal, coke, slag, and chemical products, and is widely used in industries such as building materials, metallurgy, chemicals, and glass for bottom unloading of storage.

Section 2:鄂式 Valve Structural Characteristics:

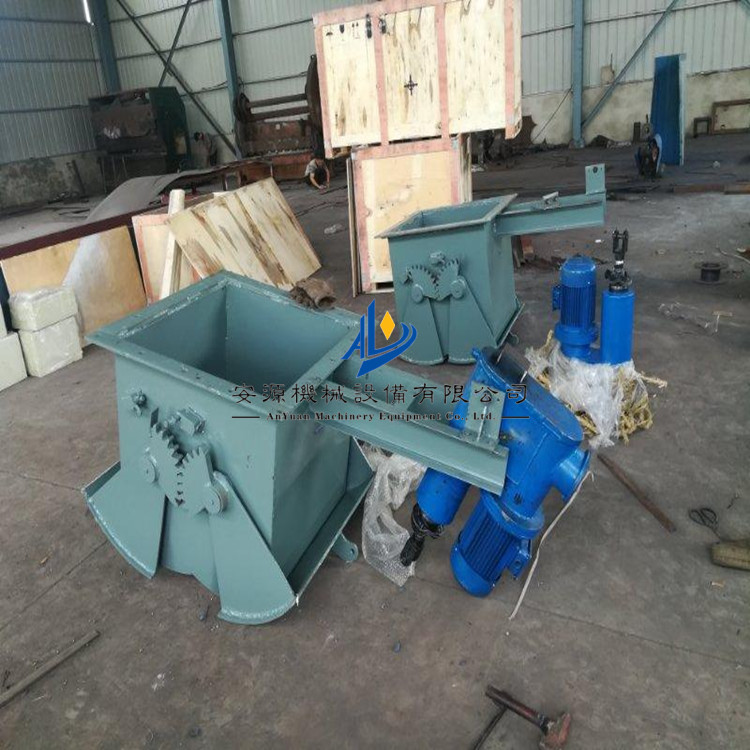

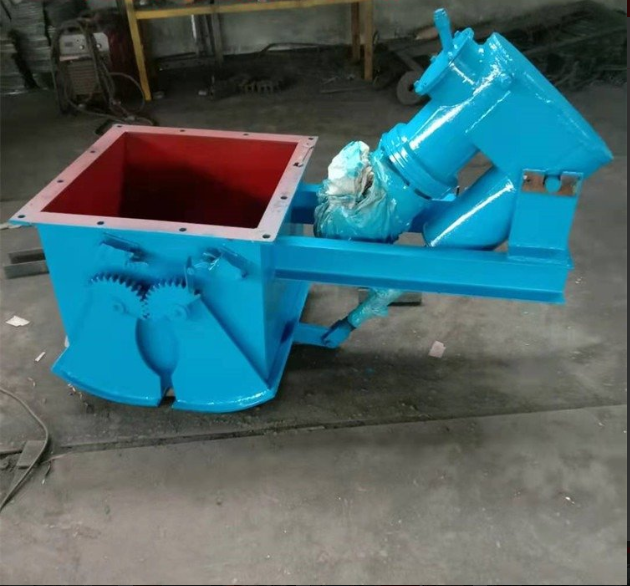

The鄂式gate valve consists of components such as the body, sector gate, shaft, gears, seals, and actuator. Manual operation or the actuator pushes the lever, causing the gears to rotate the sector gate around the shaft, opening the gates to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate, closing off the falling material.

Section 3:鄂式阀 Instructions:

1. Please note the medium flow direction indicated on the gate body during installation. When connecting the flanges, add a sealing washer and then tighten the bolts evenly.

2. Please identify the switch direction of the butterfly gate during operation, and connect the actuator properly.

3. Regularly apply lubricant to all transmission parts during operation.
