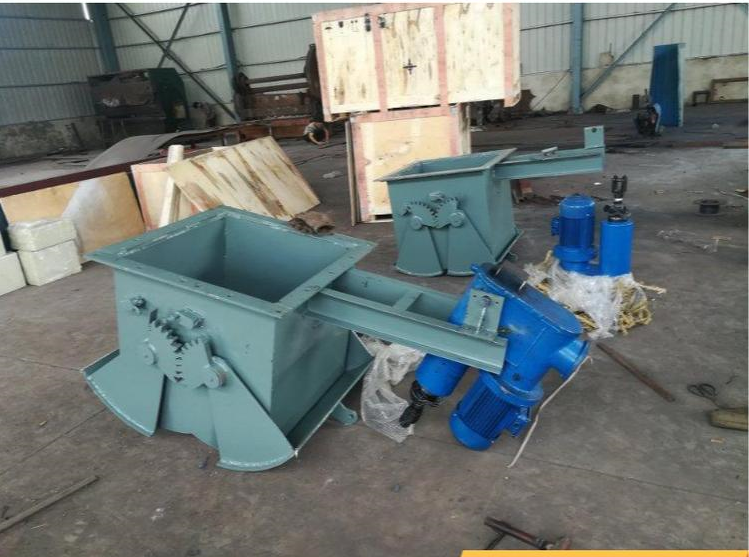

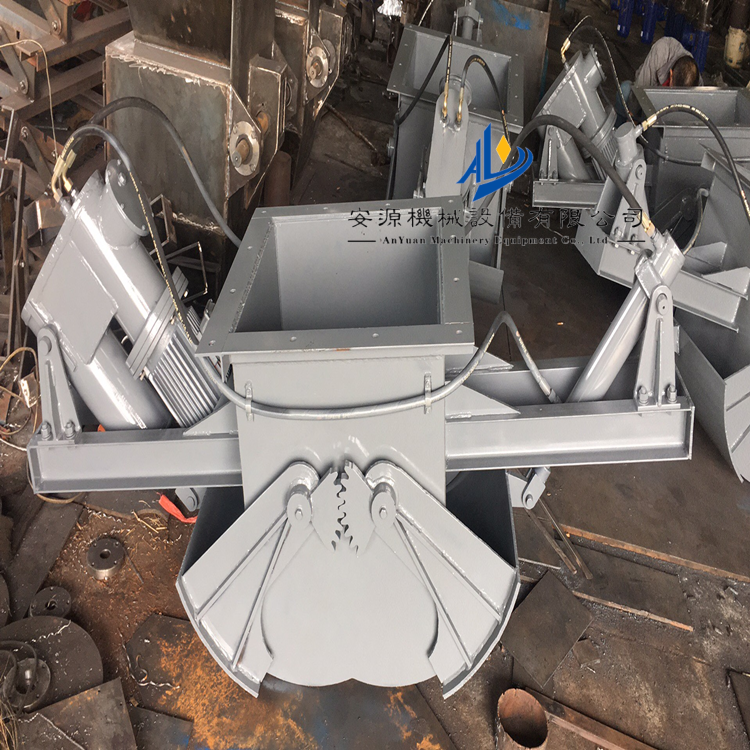

Electro-hydraulic jaw valve, Manual hood gate, Pneumatic arc valve - Storage silo

Pleated gate[2]During installation, please note the medium flow direction marked on the gate body. When connecting the flanges, seal gaskets must be added and then the bolts must be tightened evenly.

Next, please identify the direction of the butterfly valve switch during operation and ensure the actuator is properly wired. It's crucial to regularly lubricate all transmission parts during operation to extend the lifespan of the plate valve.

Improper operation can increase the wear on the palate valve.

Pit gate applications

Bib GateSuitable for bulk materials such as various ores, coal, coke, slag, chemical products, etc., with a bulk density of ≤2.5t/m³, widely used in the bottom unloading of storage for industries like building materials, metallurgy, chemicals, and glass.

Our main business includes:DT Electric Push Rod, DYTZ Electric Hydraulic Push Rod, Electrohydraulic Swing Gate, Electric Jaw Gate, Electrohydraulic Angular Drive for Imported Feed Hopper Sizes

Electro-hydraulic push rod driving electro-hydraulic actuated flat gate valveDTZ Electric Push Rod, DYTP Electro-Hydraulic Push Rod, Explosion-Proof Push Rod, DEZ鄂-Style Sluice Gate, Electro-Hydraulic Scissor Gate, Electro-Hydraulic Discharge Valve, Plow-Type Discharge Valve

Applicable Medium: Dust, Fly Ash Ore, coal, coke, slag, square mouth abrasion-resistant manual jaw valve Model specifications are considered non-standard and custom sizes in our industry, all being tailored according to the size of the flange.

Electromagnetic Jaw Valve Key Technical Parameters:

Nominal Bore Size:DN50mm～DN300mm（NPS2～12）；

Nominal Pressure:PN10MPa～16MPa（ANSI CLASS600～900）；

Operating Temperature Range:-29℃-300℃

Note:SEF is manual, DEF is electric, Y is electro-hydraulic, QEF is pneumatic.
