Electric Elbow Check Valve, DEZ-500 Electrohydraulic Ram Type Elbow Check Valve, Various Bore Size Ash Discharge Valves

I. H-type valve operating principle:

       The鄂式valve can be manually or mechanically actuated to push the lever, which drives the gear to rotate the sector gate plate around the axis, causing the two sector gate plates to open to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate plate, closing off the falling material. The jaw gate valve is suitable for dry bulk materials.2.5t/m³A variety of ore, coal, coke, slag, chemical products, and other loose materials, widely used for bottom unloading in storage for construction materials, metallurgy, chemicals, glass, and other industries.

Section 2: H-shaped Valve Structural Characteristics:

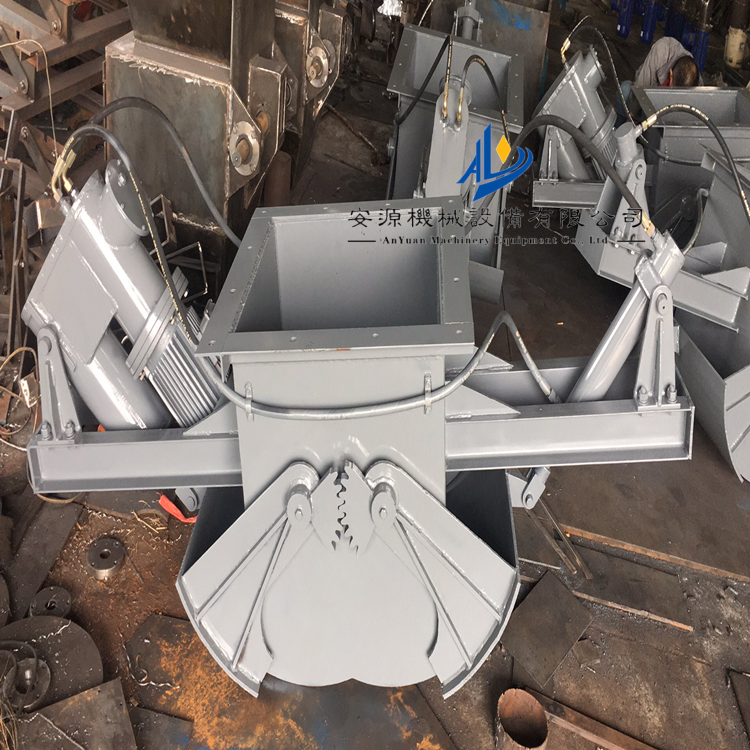

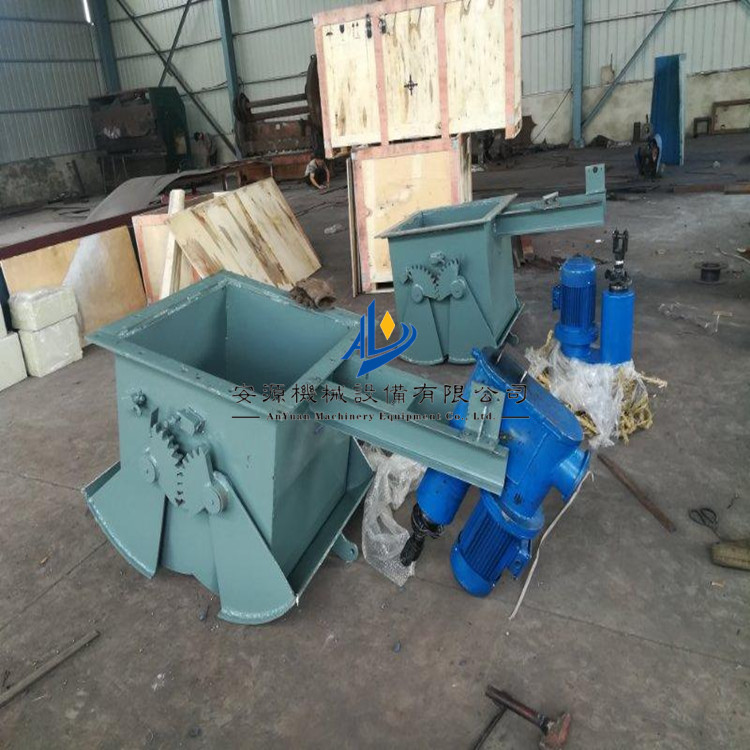

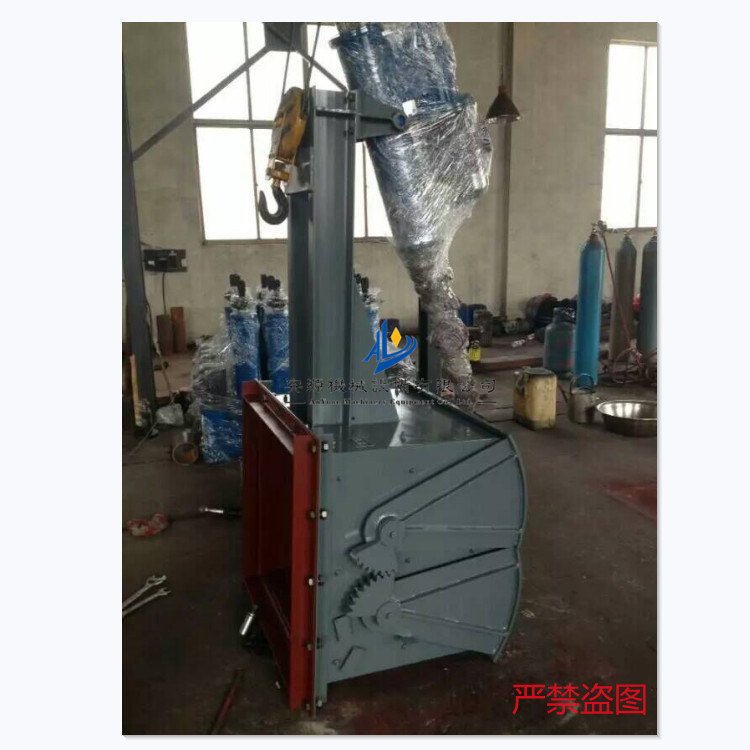

       The鄂type gate valve consists of the body, a sector gate, shaft, gears, seals, and actuator components. A handwheel or actuator pushes the lever, causing the gears to rotate the sector gate around the shaft, opening the two sector gates to the sides, allowing the material to fall. Once the receiving device is fully loaded, the actuator drives the lever again to reset the sector gate, closing off the falling material.

Section 3:鄂式阀 Operation Instructions:

1Please note the medium flow direction marked on the gate body during installation. When connecting the two flanges, add a sealing gasket and then evenly tighten the bolts.

2Ensure you identify the correct direction of the butterfly valve switch during operation, and properly connect the actuator.

3Please regularly apply lubricant to all transmission parts during operation.
