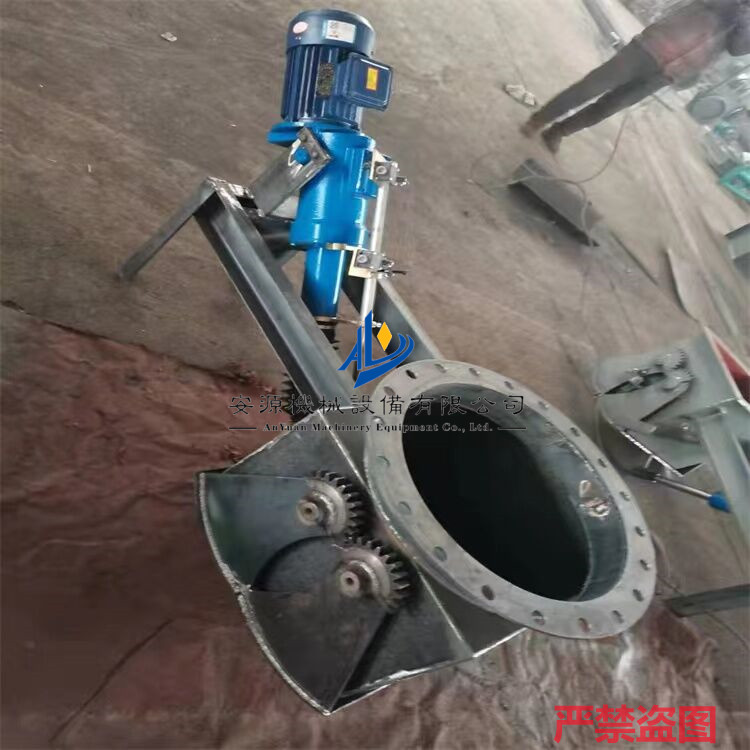

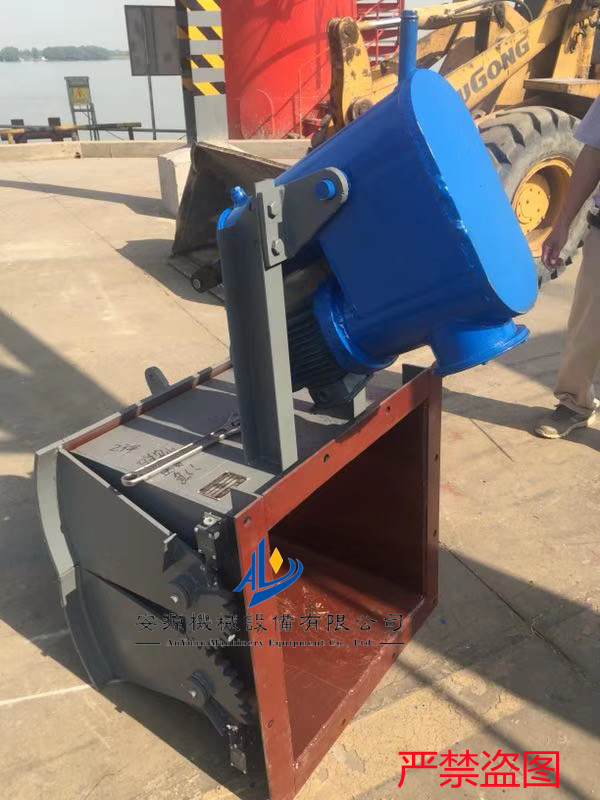

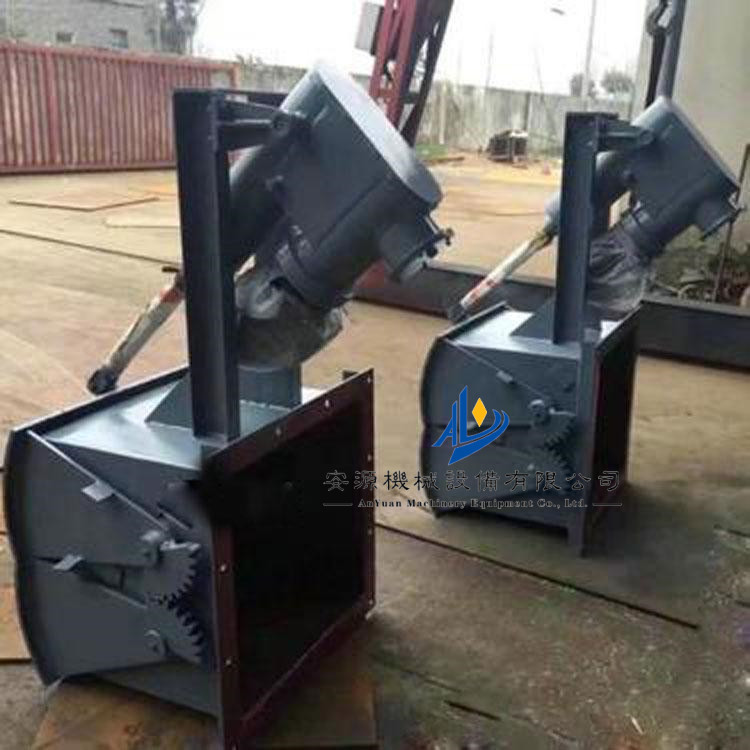

DEZ-800 with 3kw explosion-proof electro-hydraulic jaw gate, anti-clogging gate valve
The electro-hydraulic three-way分流阀 is a new series developed by our factory to meet market demands, through multiple improvements and the selection of electro-hydraulic push rods (hydraulic rods), electro-hydraulic rotary actuators, cylinders, and hydraulic cylinders as the actuators. It is an ideal equipment for quickly reversing materials in conveying systems and is widely used in the transportation of solid particles and powdery materials in industries such as construction materials, metallurgy, mining, light industry, electricity, and grain.
Features
The product features Carbon steel plate welded structures with small volume, light weight, and low resistance. Driven by electro-hydraulic push rods, they operate smoothly, have a low failure rate, and can quickly switch material flows.
Accepts signals from调节或变送单元 for automatic control as well.
Operating Principle
The product is primarily composed of a valve body, valve shaft, valve plate, crank mechanism, and electro-hydraulic push rod. During operation, the linear reciprocating motion of the electro-hydraulic push rod is transmitted through the crank mechanism to drive the valve shaft and valve plate. Angle positioning
Actively controls the flow and volume of materials.
Product Name: Electric Three-Way Diverting Valve,Electric Side Three-Way Diverting Valve
Product Specifications:200*200-1000*1000
Applicable Media: Powder, dusty solid particles
Operating Temperature:≤350℃
Power Voltage:380V 50HZ
Gas Source Pressure:0.4-0.6MPa
3Model Numbering Description
D—Electric ActuatorS— ManualDyElectro-hydraulic Push RodQ— Pneumatic Push Rod
Fc— Material Distribution Valvea— Cutting Angle
Ⅰ—Three-Way ElbowⅡ—Straight Three-Way FittingⅢ—Four-Way Fitting (Two In, Two Out)Ⅳ—Four-Way Fitting (One In, Three Out)
4Product Features and Working Principle
Three-way分流阀采用 Welded steel plate structure with compact size, light weight, and low resistance. Equipped with an electric push rod.(Electro-hydraulic and pneumatic actuators)Drive, allowing for quick switching of material flow.
