Cement Plant Electric Butterfly Valve, Palate Valve, DEZ-300 Pneumatic Palate Valve

Bib Gate[2]Please note the medium flow direction indicated on the gate body during installation. A sealing gasket must be added between the two flanges, followed by evenly tightening the bolts.

Next, please identify the direction of the butterfly valve switch during operation and ensure the actuator is properly wired. It's crucial to regularly apply lubricant to all transmission parts during operation to extend the lifespan of the plate valve.

Improper operation can increase the wear on the palate valve.

Application of the Baffle Gate

Bib GateSuitable for bulk materials such as various ores, coal, coke, slag, chemical products, etc., with a bulk density of ≤2.5t/m³, widely used in the bottom unloading of storage for industries like building materials, metallurgy, chemicals, and glass.

Our main business includes:DT Electric Push Rod, DYTZ Electric Hydraulic Push Rod, Electro-hydraulic Swing Gate, Electric Jaw Gate, Electro-hydraulic Angle Drive, Imported Material Mouth Dimensions

Electro-hydraulic Push Rod Driven Electro-hydraulic Actuated Flat Gate ValveDTZ Electric Push Rod, DYTP Electro-Hydraulic Push Rod, Explosion-Proof Push Rod, DEZ鄂-Type Sluice Gate, Electro-Hydraulic Actuated Radial Gate, Electro-Hydraulic Discharge Valve, Plow-Type Discharge Valve

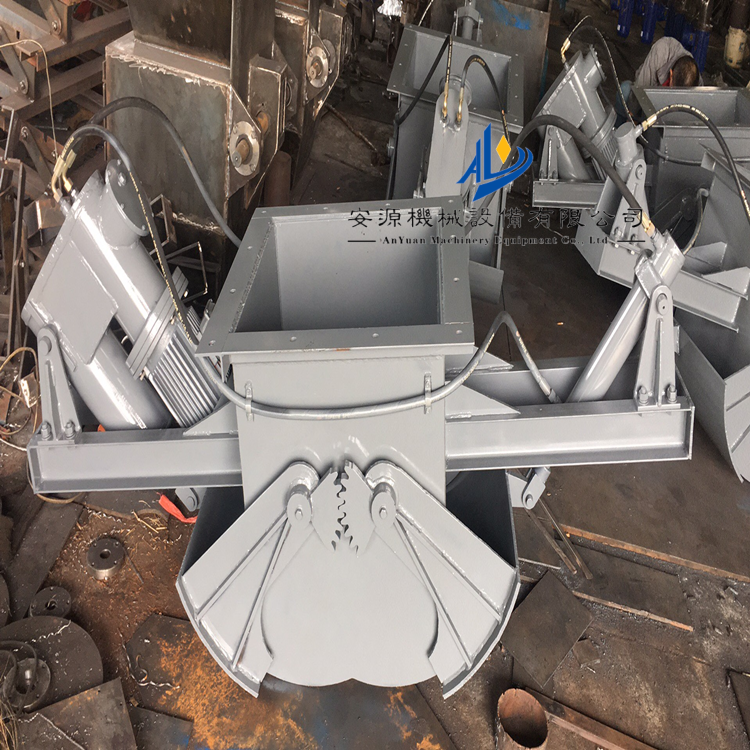

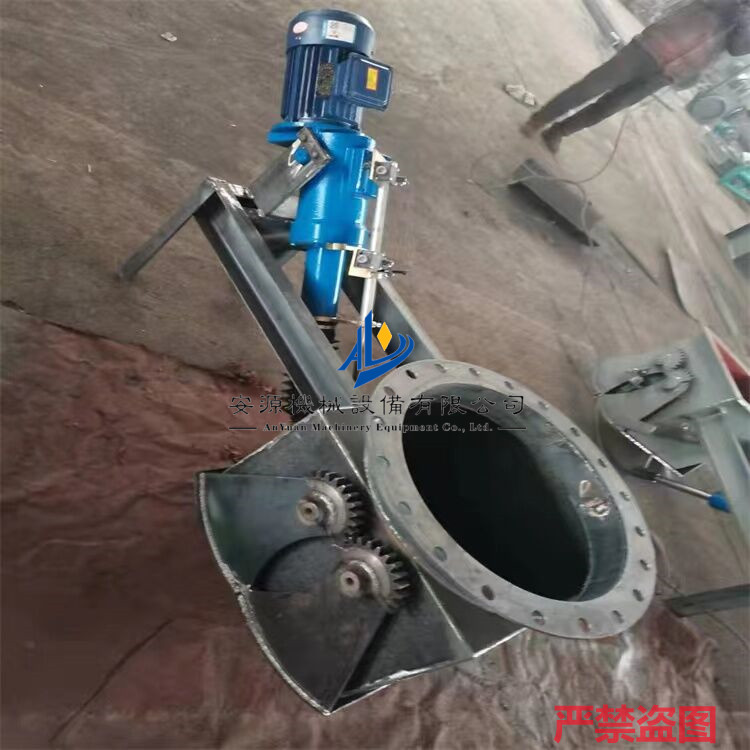

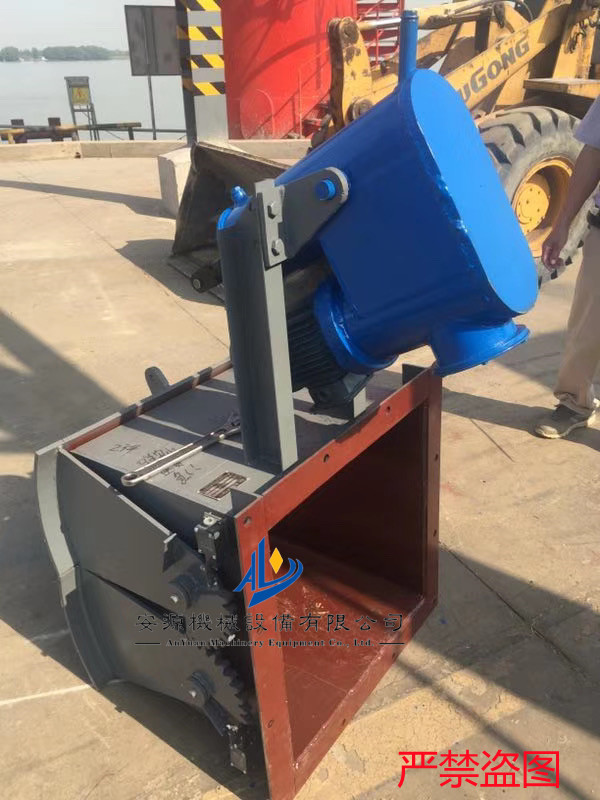

Applicable Medium: Dust, Fly Ash Ore, coal, coke, slag, square mouth wear-resistant manual jaw valve Model specifications are considered atypical and special sizes in our industry; all are customized according to the size of the flange for the relevant height.

Electric Jaw Valve Key Technical Parameters:

Nominal Bore Size:DN50mm～DN300mm（NPS2～12）；

Nominal Pressure:PN10MPa～16MPa（ANSI CLASS600～900）；

Operating Temperature Range:-29℃-300℃

Note:SEF is manual, DEF is electric, Y is electro-hydraulic, QEF is pneumatic.
