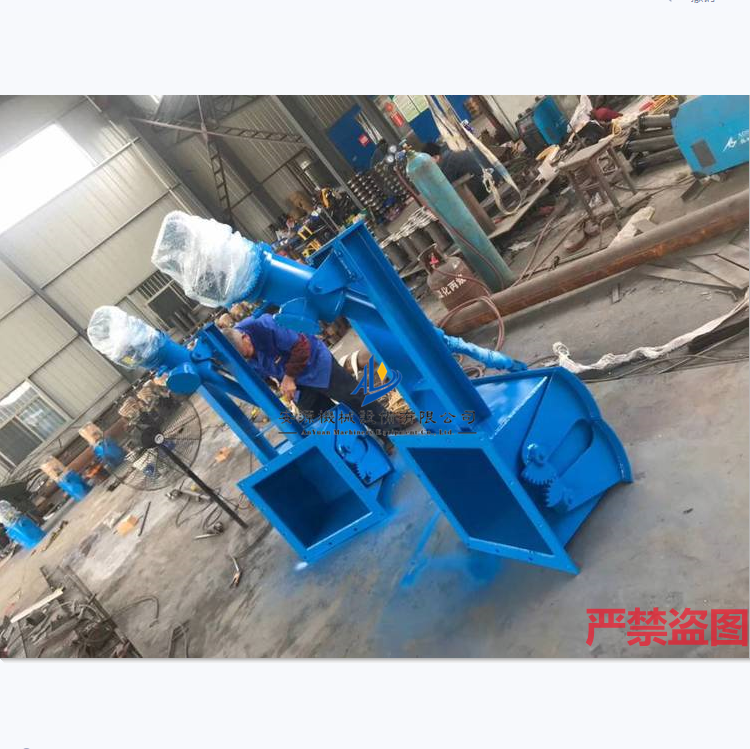

Underground Coal Mine Explosion-Proof Fan-shaped Gate, DEZ Electro-Hydraulic Push Rod Fan-shaped Gate, Hydraulic Jaw-type Gate
Product Model:TDSZModelElectro-hydraulic sector valve Ash Discharge Quantity:6-300M3/h
Nominal Bore Size:200*200-1000*1000 Applicable Temperature:≤300℃
Drive Method: Manual, Electric, Pneumatic, Hydraulic Electro-hydraulic
Applicable Media: Powdered Materials, Granular Solids, Granular Substances
Two,TDSZPerformance Features of Type Electro-Hydraulic Butterfly Valve
Electro-hydraulic sector gates are designed for the construction materials industry. Ideal unloading device for dust removal equipment in cement clinker storage. The fan-shaped valve features a dust cover at the discharge outlet to prevent dust from flying; the fan-shaped valve utilizes an electro-hydraulic push rod as the power source, replacing the cylinder transmission, thus saving engineering investment costs; the valve body of the fan-shaped valve is designed with a stepped structure, reducing material flow impact.
Brand:Anyuan Model:DSZ Material: Carbon Steel Connection Type: Flanged Applicable Medium: Crystalline solids, granular materials, powdered materials Pressure Environment: Atmospheric Pressure Standard: National Standard Drive Method: Electro-hydraulic Push Rod Operating Temperature: Ambient Temperature Specification: See table below Type (Channel Position): Straight-through Outlook: Medium
Working PrincipleElectro-hydraulic sector gates are composed of the main body, sector gate plate, shaft, seals, and electro-hydraulic push rods, among other components. The electro-hydraulic push rod drives a gear that rotates the sector gate plate around the shaft axis, enabling the sector to... The gate valve opens to one side, allowing the material to fall. Once the receiving device is fully loaded, the electro-hydraulic push rod drives the sector gate back into place, closing off the falling material.
