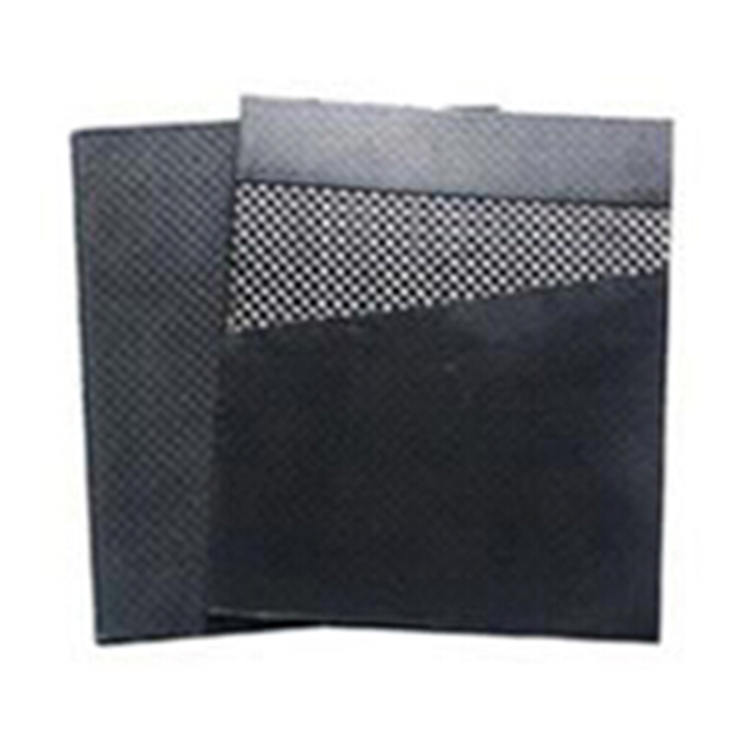

Flexible GraphiteEnhancedLumberThis material is a sheet produced by chemically treating high-purity flake graphite, expanding it at high temperatures, and then rolling it into a coil. It is further compounded with a double-sided mechanical embossed plate. It boasts high-temperature resistance, corrosion resistance, and excellent resilience. It serves as the fundamental material for manufacturing various graphite-reinforced seals. Special specifications can be customized according to customer requirements.

Standard specifications as follows: Spec: Thickness:0.8-3.5mm Width:1x1m, 1.5x1.5m, 1.5m x 2.0mEnhanced Metal Material: TinplateSS304，SS316，SS316L

Rush and adhesive properties: Resistant to various chemicals except strong oxidizing agents
Excellent thermal stability, capable of-200-1000Long-term use within temperature range. Operating temperature :-200~650 ℃ ( Air Medium ),-200~3000 ℃(Anaerobic Medium)Good compressibility and resilience, low thermal pressure relaxation, strong capability to compensate for surface irregularities on the sealing face, and long service life.

Application: Manufacturing various cylinder gaskets for compressors and internal combustion engines, and producing high-strength graphite shims

Special requirements require separate ordering.
