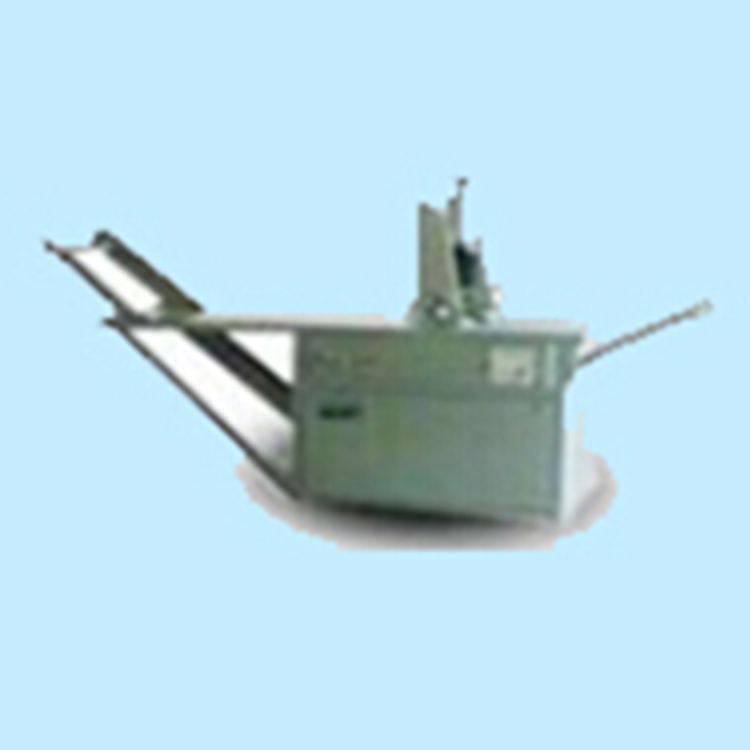

The整形machine is one of the auxiliary equipment for weaving roots, transforming the irregularly shaped roots woven by the weaving machine into standard square dimensions according to certain specifications and sizes. It can shape3×3mm~50×5 The tap root.
       The width of the shaped root can be adjusted according to the specifications of the upper wheel blade. The shaping is larger than the specification.16mmThe root can be arranged and combined using thickness shims. For example, the thickness of the upper wheel slice is6、8、10、12、14Five, adjustable6、18、20、22、24---50The automatic winding device is controlled by an electromagnetic friction brake to synchronize its operation with the driven wheel shaft. The excitation voltage of the electromagnetic friction brake can be adjusted arbitrarily; the greater the excitation voltage adjustment, the higher the resistance torque of the winding device, and vice versa. Note: The length of the mandrel, the user can determine the diameter of the winding disk according to the specific length.Key Technical Parameters:
Electric Motor:380V50HZ  RPM:1400Please provide the Chinese content to be translated./Power Distribution1.1KW
Active wheel speed:35Please provide the Chinese content to be translated./Please provide the Chinese content to be translated.    Install top整形轮，：Φ186×3mm
Lower整形轮Φ186×60mm     Side wheelsΦ120×60mm
Smallest整形square shape:3mm×3mm   Best rectangular shape for整形:50mm×50mm
Molding Coiling RollerΦ280mm      Exciting voltage adjustment range:0~15V    Weight:220KG
