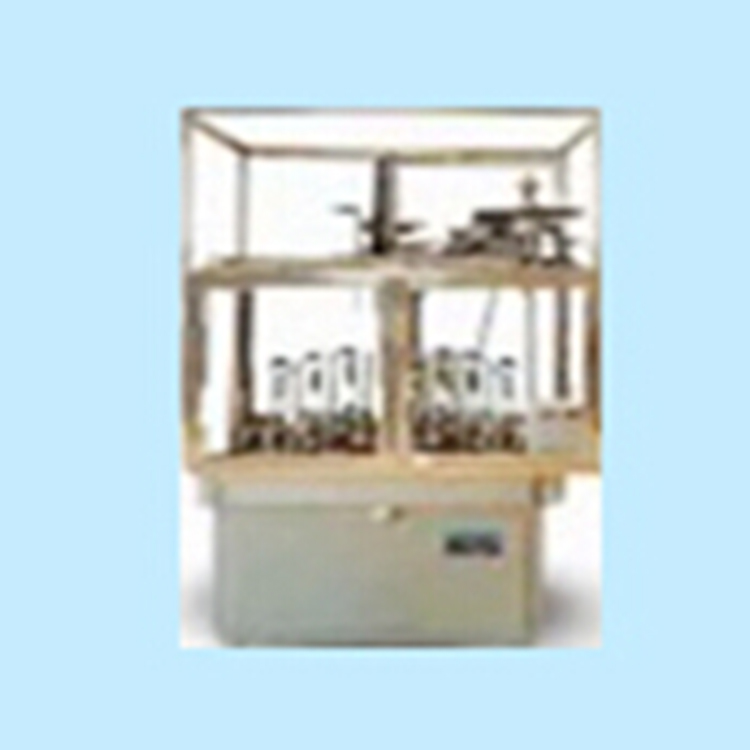

This machine is a specialized equipment for weaving square rootstock.,It is asbestos.,Teflon,Graphite,Carbon Fiber,Ceramic Fiber;Cotton,Hemp,Woven materials based on linear substrates such as metal wire and other materials,Square root woven.It is driven by an electric motor with various variable-speed gears.,Adjustable tightness woven fabric.Automatic machine fault shutdown protection feature,Features a fixed-length option(Root length),Automatic shutdown feature for wire break or wireless disconnection.
       It is powered by an electric motor.,Rack,Screw Gear,Screw Thread,Transmission Gear,Guideway worktable,Bar and winding units, etc..It is driven by an electric motor via a friction belt pulley.,Screw Gear,Screw Thread,Transmission Gear,The drive gear moves the spool along"8"Ball screw operation;And engage in reciprocal interlacing;The tension of the woven roots is mainly controlled by the automatic winding device.,Coiler unit operates faster,The woven roots become looser,On the contrary,Knitted roots are tight.

Main Technical Parameters:
Voltage:380V50HZ   Electric Motor:0.75KW  RPM (Revolutions Per Minute)1410rpm
Guide rail:3    Spacing:250mm           Bar count:18
Bar spindle speed:18min-1   Spool Diameter:72mm    Spool Length:190mm
Worktop surface:900x900mm   Knitted yarn thickness:1g~3g/m  Weaving Scope:10x10~22X22(mm)
Dimensions:1100x1200X1800(mm)       Equipment Weight480:kg
