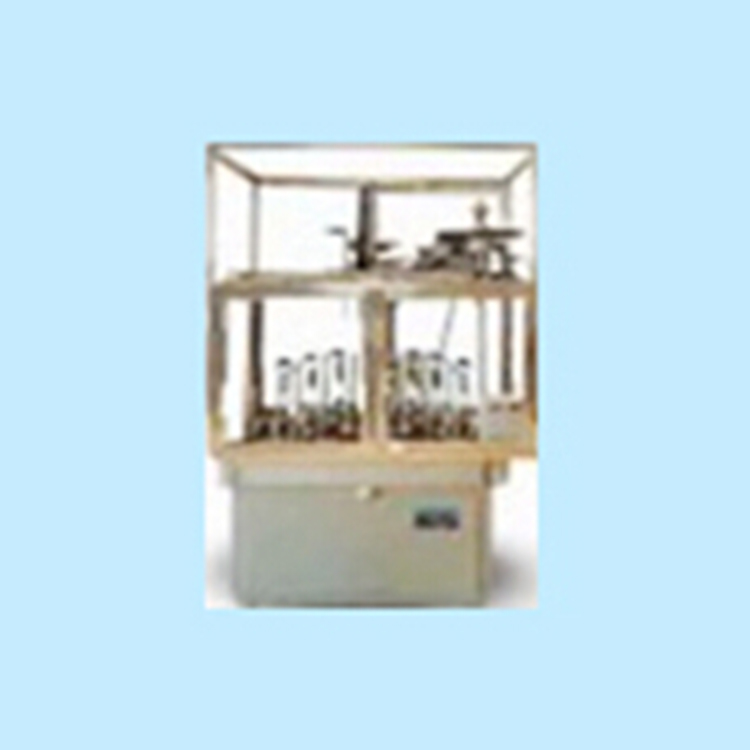

A specialized machine for weaving square root mats.,It is a kind of asbestos,PTFE,Graphite,Carbon Fiber,Ceramic fiber;Cotton,Hemp,Woven materials based on linear carriers made of materials such as metal wire,Woven square root..It is powered by an electric motor with various speed-reducing gears, allowing for adjustment of the fabric's tightness..Automatic machine failure shutdown protection feature,Features fixed-length cutting capabilities.(Root Diameter),Automatic shutdown feature for wire break or wireless disconnection 。
Main Technical Parameters:
Voltage:380V50HZElectric Motor:0.75KW RPM:1400rpm
Guide rail:3 Spacing:250mm Bar count:8
Bar spindle speed:18min-1 Spool Diameter:72mm
Spool Length:190mm Worktop:700x700mm
Knitted yarn thickness:1g~3g/m Weaving Scope:3X3~12X12(mm)
外形尺寸:1000x900X1650(mm) Weight280:kg
