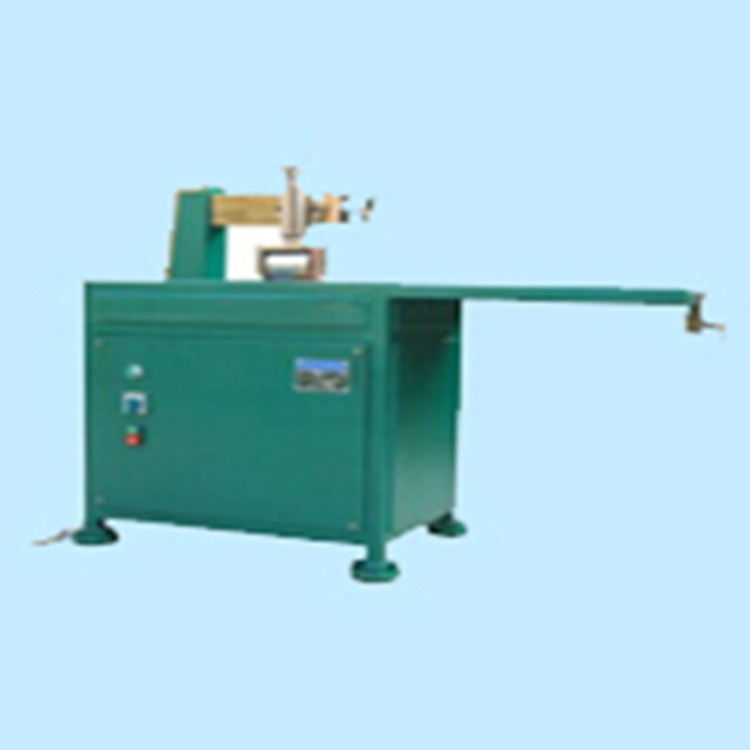

This machine is one of the auxiliary equipment for manufacturing graphite-reinforced gaskets..Its primary use is to edge the inner and outer diameter curves of the graphite reinforced gaskets..It is a shaped curvature with specific parameters.,Metal strip with a cross-section in the shape of a right trapezoid or an inverted trapezoid,A machine that rolls sheets from graphite-reinforced pads with curvature radii that roughly match.

Key Technical Parameters:
Electric Motor:380V50HZ    RPM:960Turn/Please provide the Chinese content to be translated.    Power:1.1KW
Axle wheel diameter:120mm   Axial Compression Speed:19rpm
Axle Pressure Washer Thickness:1~5mm    Edge binding maximum width:5~80mm
Padded edge minimum width:10mm      Padded edge minimum diameter:100mm
Dimensions:1480x550X1150(mm)
