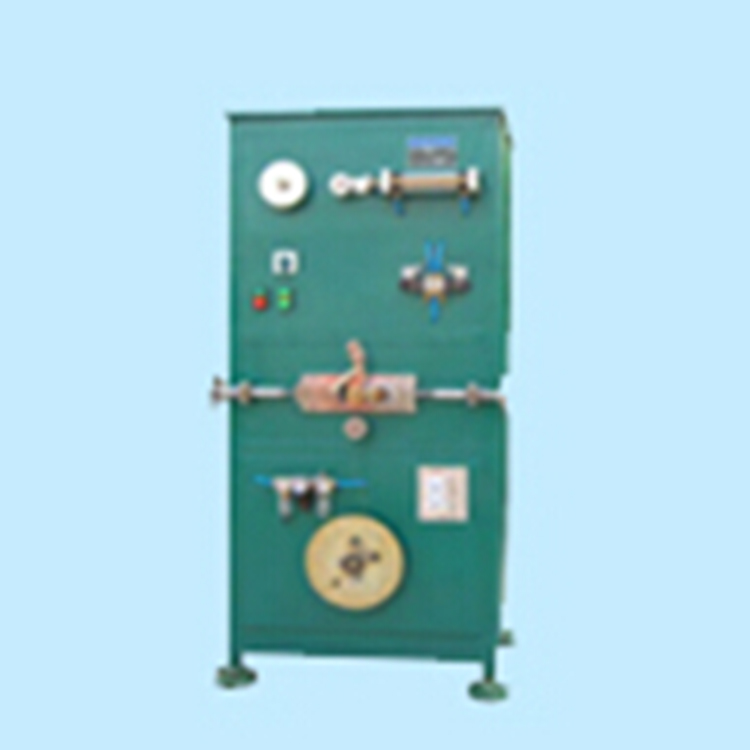

This machine is a dedicated equipment for edge-bonding graphite-enhanced gaskets.,It is a metal flat steel strip with specific parameter specifications.,Cold drawing forming with the same parameter convex-concave roller. Supply edge strips with both trapezoidal and inverted trapezoidal contours for the production of graphite gaskets.
Key Technical Parameters:
Motor:380V 50HZ RPM:1400Please provide the Chinese content you would like translated./Please provide the Chinese content to be translated. Power:1.1KW
Steel Strip Width:6.1mm(7mm)( 8mm) Steel strip thickness:0.2~0.25mm
Spindle Speed:35Please provide the Chinese content to be translated./Fraction Cylinder Stroke:100mm Nominal Cylinder Pressure:0~0.8Mpa
Trapezoidal steel strip:Base width=3.3Waist Length=2.5Trapezoidal angle=60 Exciting Voltage Range:0~15V
Dimensions:960x620X1500(mm)
