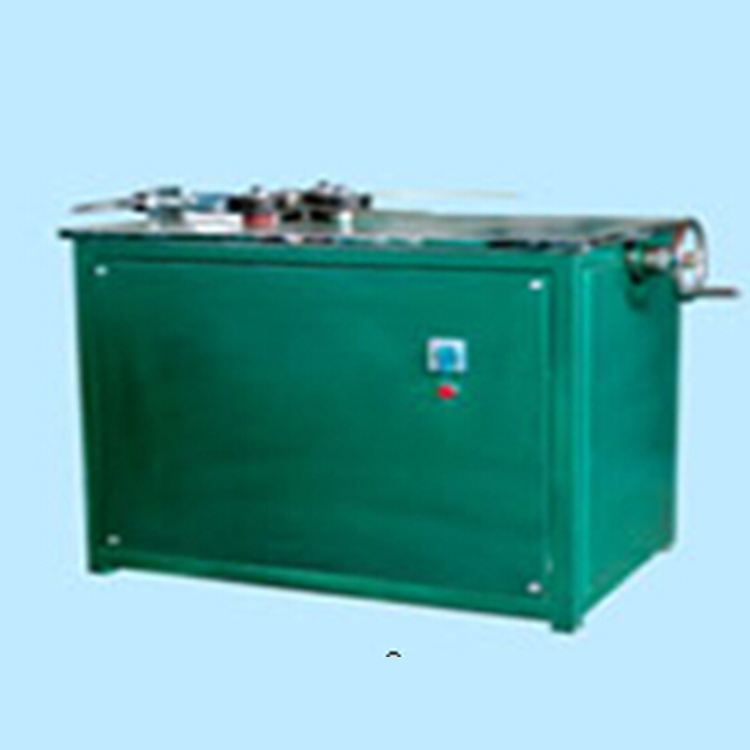

The bending machine is a type of machinery that is配套 with metal gasket production equipment.,It is a non-standard specialized equipment for manufacturing and processing metal-wrapped gaskets with reinforcing rings..The original production process used sheets, which were cut into squares, then machined on a regular lathe. The larger the diameter of the machining, the stronger the reinforcing ring.,Its material utilization rate is lower.(Because it is a square material that is processed and manufactured into a reinforced ring.).The four corners and the center of the square board are all offcuts. While using a ring forming machine...,No additional workwear configuration is required.,It is cold-bent from strips. So,Enhanced ring forming machines are designed to reduce equipment investment.,To reduce production costs while ensuring the full quality of the product.,It is the ideal equipment for producing reinforced metal gaskets.

Main Technical Parameters:
Voltage:380V50HZ    Electric Motor:1.5KW1400rPmm    Spindle Speed:36rpmm
Fixed shaft spacing:240mm     Formed wheel diameter:￠100mm

Scope of Work:DN200-￠4000mm   Processing Thickness:3-5mm   Processing Width:5-60mm           Molding ring diameter tolerance:±1mm
