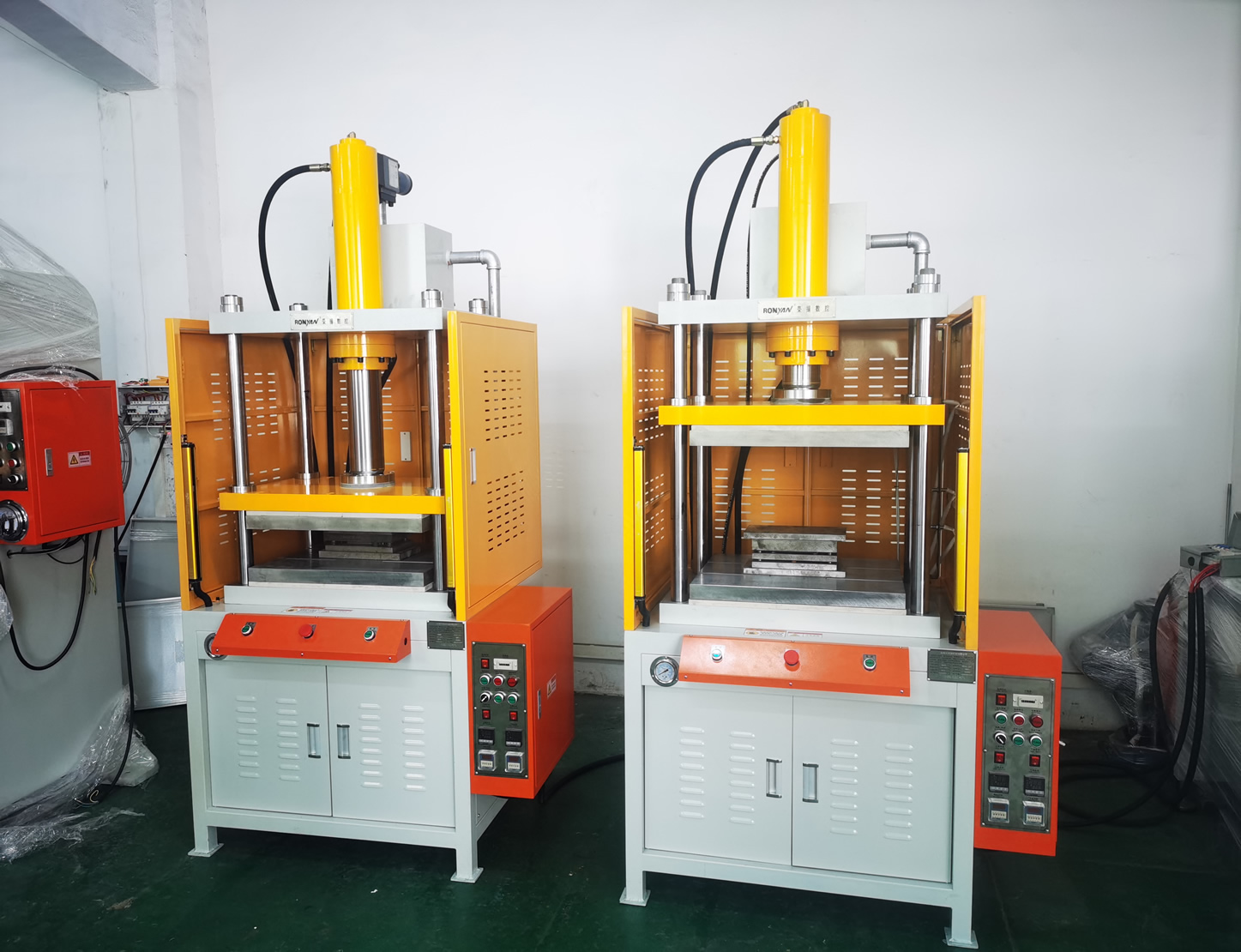

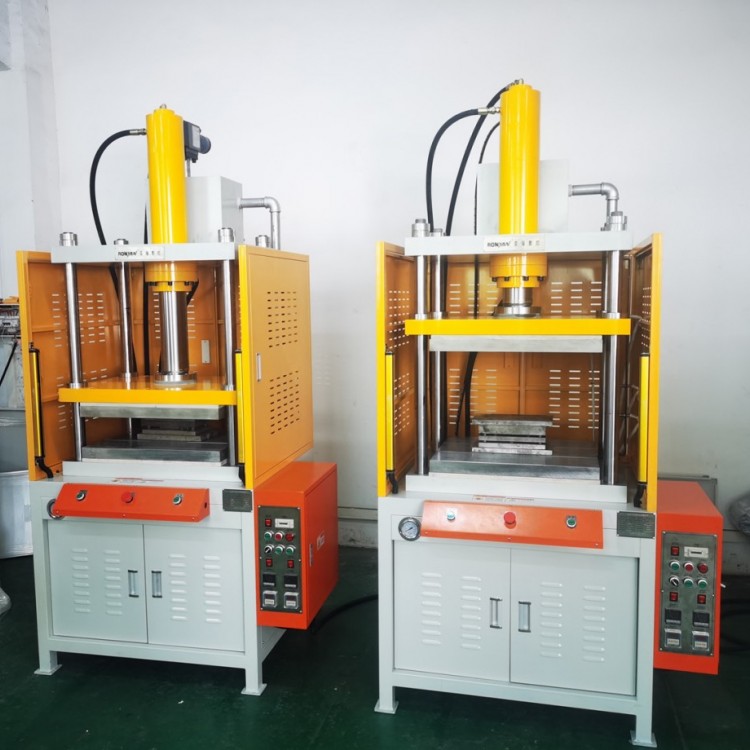

1、This series of rapid hydraulic press is suitable for stamping, assembly, and bonding of various metal products.
2、Blanking, embossing, forming, die-cutting, stamping, powder product pressing, etc., for metal or non-metal parts.
3、Especially suitable for the trimming and整形 of aluminum, zinc magnesium alloy die castings, and the precision cutting of silicone and plastic products.
4、This machine is widely used in the die-casting, stamping of hardware parts, and automotive/motorcycle accessories industries.
Product Model | Unit | RYQ-10T | RYQ-20T | RYQ-30T | RYQ-40T | RYQ-50T | RYQ-60T | RYQ-80T | RYQ-100T |
Nominal Pressure | ton | 4-10 | 8-20 | 10-30 | 15-40 | 20-50 | 25-60 | 30-80 | 40-100 |
Maximum Stroke | mm | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 350 |
Closed height | mm | 400 | 400 | 500 | 500 | 500 | 600 | 600 | 600 |
Deceleration rate | mm | 180 | 180 | 180 | 180 | 160 | 160 | 160 | 120 |
Rising pace | mm | 160 | 160 | 160 | 160 | 140 | 140 | 140 | 120 |
Penetration speed | mm | 20 | 20 | 20 | 20 | 20 | 20 | 15 | 15 |
Workbench Travel | mm | 450*450 | 500*500 | 600*600 | 600*600 | 600*600 | 600*600 | 600*600 | 600*600 |
