Guofriend Power Plant Ash Cleaning Machine, High-altitude Fly Ash Suction and Loading Machine, Steel Plate Silo Cement Ash Suction Machine
Product Description:
1. Overview. 1 unit of 200-type pulse-jet dust removal pneumatic conveying machine.
2. Core. 200mm Roots blower, 1 unit (including base, upright pipe, and silencer pipe).
3. Power. One 380V 55KW motor for fan matching (including V-belt, pulley, and guard).
4. Dust Removal. 1 piece of Φ2.2m pulse dust collector (including pulse instrument, pulse valve, filter tube, filter bag).
5. Discharging. 1 set of gravity discharge system for dust collector accessories (double pneumatic valves + gravity buffer tank).
6. Pipe. 8-inch rubber hose, 30 meters (includes matching clamps and connecting reducers).
7. Attachments: 1 each of龙门支架, 出料布袋, 吸咀, 气泵, and 启动柜.

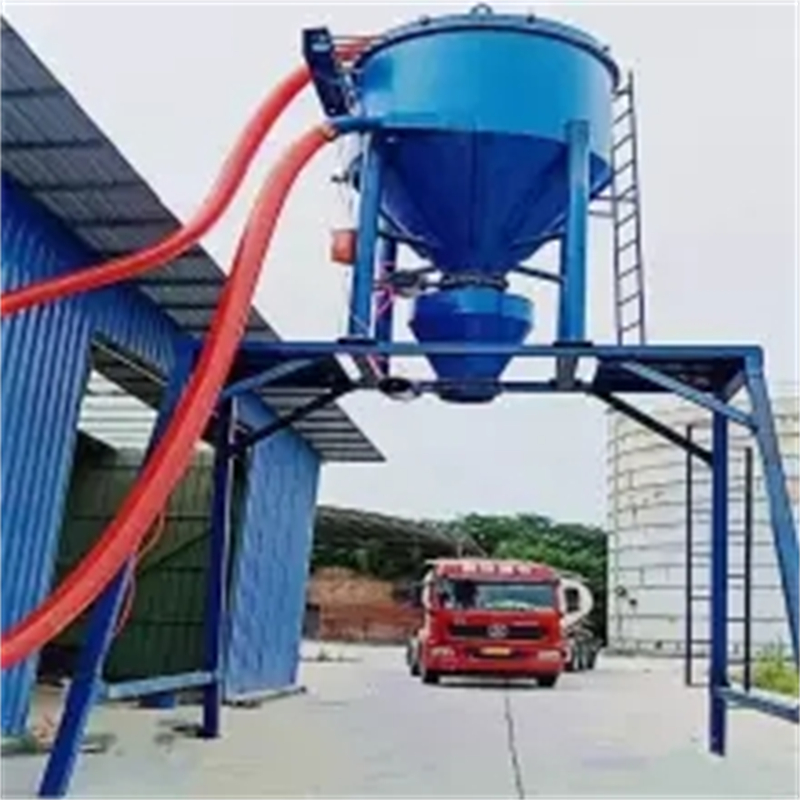

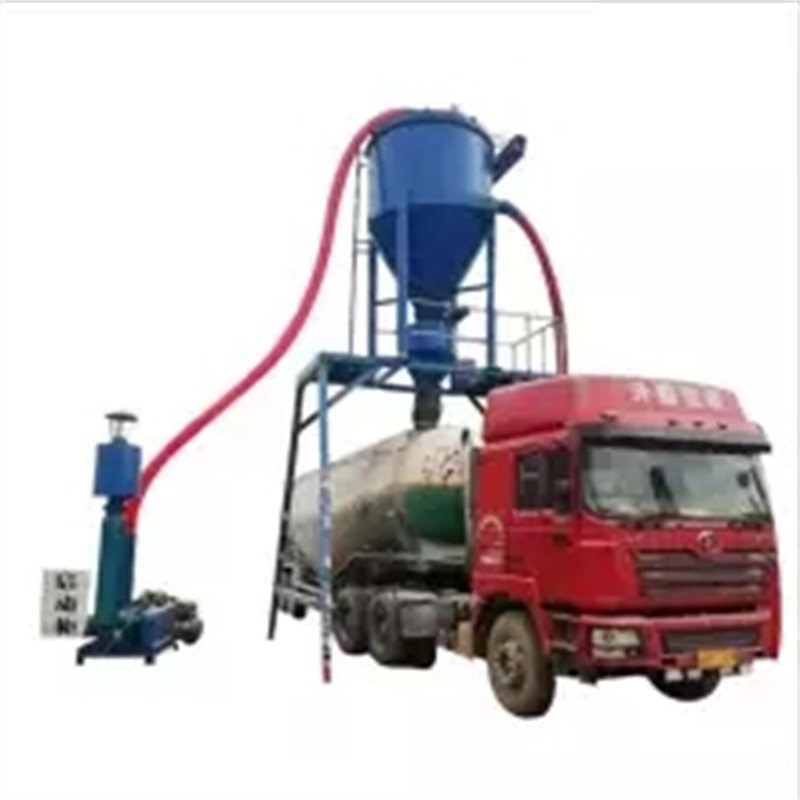

An ash suction machine is an environmentally friendly equipment for loading fly ash, which transports dry materials pneumatically. It is suitable for fly ash, cement powder, stone powder, mineral powder, activated carbon, grains, and more.
Bulk handling, loading, and transportation operations for various small particle materials like plastic, as well as industrial construction materials such as fly ash, cement powder, activated carbon powder, and glass fiber.
Environmental protection conveying machine loading and cleaning.
Pipe layout allows for horizontal, inclined, and vertical transportation of materials, with simple and convenient operation, enabling individual machines to independently complete transportation tasks. Utilizing fans
Aerated by (or other gas sources), the pipeline forms a certain velocity airflow, which transports the bulk material along a specific pipeline from one place to another, known as an air conveyer.
Company Profile:
Qufu Guoyou Machinery Sales Co., Ltd. is located in the hometown of Confucius, Qufu City, Shandong Province, and is a burgeoning machinery enterprise specializing in the research, development, production, and distribution of small and medium-sized agricultural machinery.
Guoyou Machinery, relying on its strong financial and human resources, adheres to the "both feet on the ground" business strategy of "both self-developing and actively introducing," upholding the principle of "market-oriented and customer-focused."
Guided by the principle of "taking the market as the criterion and the spirit of continuous advancement as the guide," and adhering to the business philosophy of "mechanical contribution to the country and friendship with all under the heavens," we steadily tread the path of mechanical e-commerce.
Guofriend Machinery has now successively launched: pneumatic grain suction machines, crushers, granule feed machines, flour and grit making machines, baling machines, etc., as well as agricultural machinery for harvesting; trenching machines, fogging machines, and micro-tiling machines.
Pest control and gardening machinery; potato harvesting machinery, peanut harvesting machinery, vegetable cutting machines, walnut husking machines, fish scale removing machines, etc., processing and food machinery; pneumatic machines,
Container unloading and de-boxing machines, belt conveyors, bucket elevators, screw conveyors, scraper conveyors, polishing machines, and other mining and industrial machinery products. We will continue to enrich and optimize our product line, striving
To bring more and better products and services to our customers, welcome to call for inquiries, visit our factory for guidance, and discuss cooperation!
Logistics Distribution
6.8m-13m dedicated truck shipping.
2. Payment Terms
30% deposit required, full payment upon shipment.
3. Warranty Policy
From the date of receipt, 1-year warranty applies (excluding parts in direct contact with materials and electronic components).
