Product IntroductionProduct introduction

Product Information

• Product Category: Pneumatic Conveying Machines

• Brand: Guoyou Machinery

• Switch Type: Soft Start/Variable Frequency Start

• Material: Carbon Steel

• Special Purpose: Dust-Free Powder Loading

• Customized Processing: Made to Order

• Origin: Dong of Zhougong Temple, Qufu, South Guoyou Machinery Factory, South Road

Product real photosProduct picture

 This machine is an environmentally friendly self-priming conveying equipment suitable for the handling of powdery materials such as fly ash, cement powder, stone powder, activated carbon powder, etc., in processes like unloading and transfer.

 The machine is byCore(Rotary blowers, electric motors or diesel engines, silencers, bases, etc.)Dust removal(Pulse tanks, filter sleeves, filter bags, pulse instruments, pulse valves, air pumps, etc.)Discharge material(Airlock or pneumatic valve)BracketLifting Beam for Truck LoadingConvey(Joint hose, clamps, etc.) andAttachmentComprising sub-systems such as suction nozzles, expandable fabric bags, etc.

 The machine is available in models with impeller diameters of 100mm, 125, 150, 200, 250, 300, and so on.

The machine is further categorized into a suction and delivery model (Figure 1) and a suction-only model.

The vacuum and blow unit typically consists of a fan, an active drive, and a pulsating tank, all commonly mounted together on a (movable) base.

Non-atomizing type, the fan and the main power are both mounted on the base, while the pulse tank is placed separately (can be paired with a gantry).

Widely used in industries such as chemicals, building materials, metallurgy, and grain, for conveying powdery, granular, and small solid materials with low viscosity and non-fermenting properties, such as fly ash, cement, and grain, with material temperatures below 200°C. Can be easily combined for single-direction conveying, suction, or a combination of both.

This machine is an environmentally friendly self-priming conveying equipment suitable for handling powdery materials such as fly ash, cement powder, stone powder, activated carbon powder, etc., in processes like unloading and transfer.

Product Details ImageProduct detail drawing

More angles to showcase the product

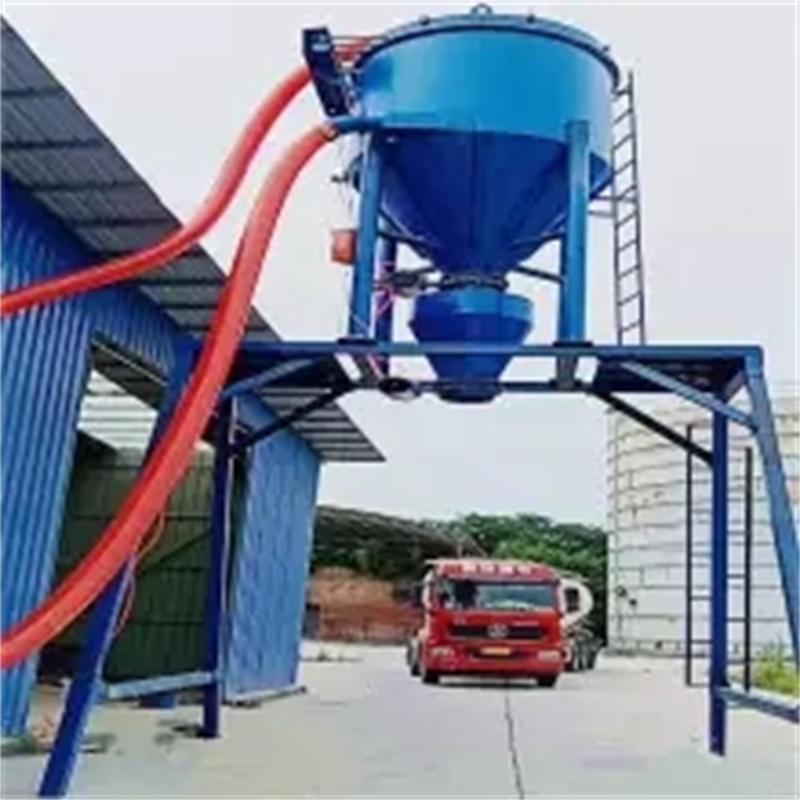

            Power plant fly ash environmental dust-free cleaning and filling trucking site

More angles to showcase the product

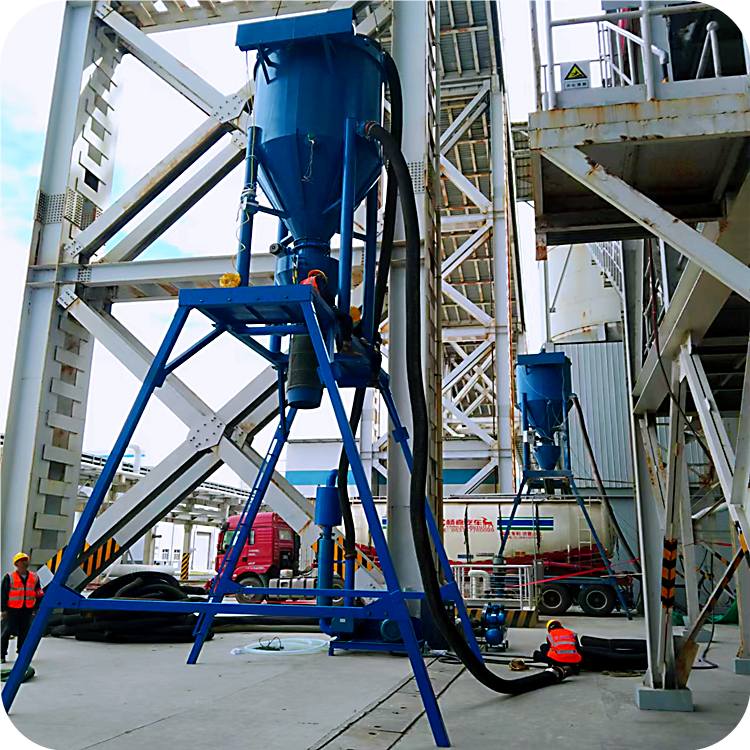

                     Drum Storage Dust Extraction Self-Adsorption Filling Truck Dust Collector On-Site

More angles to showcase the product

                   Leveling storage rack remote-controlled robotic arm dust removal machine on-site

More angles to showcase the product

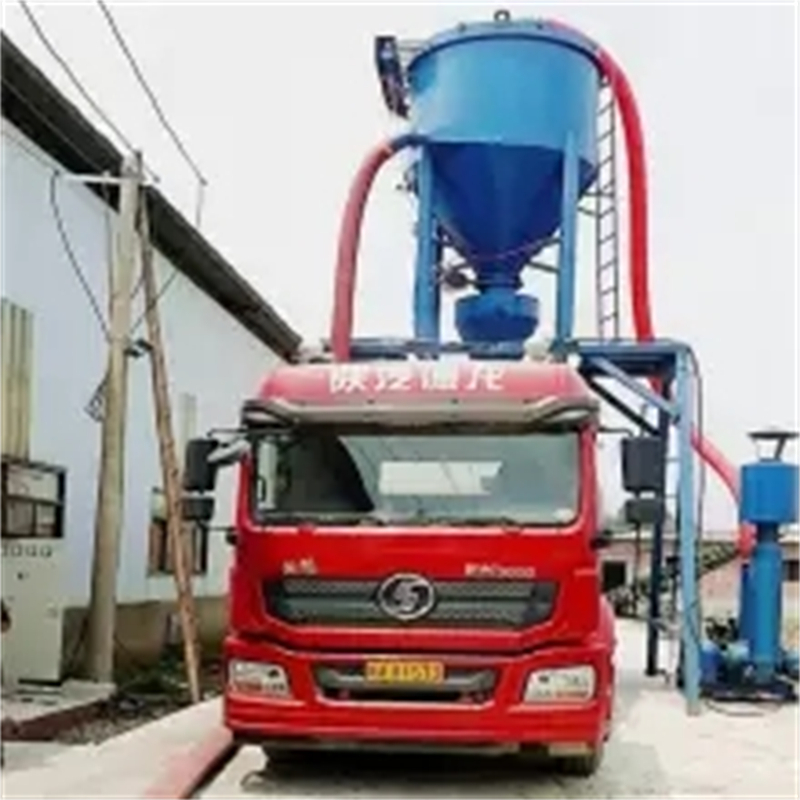

              Bulk Storage Silo Cement Powder Dust-Free Clean Filling Truck Suction Machine

Product PackagingProduct packaging

Customization InstructionsCustom instructions

Qufu Guoyou Machinery Factory, custom-made for clients, various dust-free powder material conveyors, 30% deposit required, full payment upon completion of equipment production and successful inspection.

Purchasing GuidelinesPurchase notice

1. Source Description

Guoyou Machinery: Custom-made pneumatic conveying machines, arrange logistics and dedicated vehicle delivery, offer video installation guidance and on-site service options.

Cleanroom environmental protection powder material loading and conveying equipment.

2. Payment Terms

30% prepayment, full payment upon shipment after inspection with no issues.

3. Return and Exchange Policy

Special order items are non-refundable and non-exchangeable. Please select the model carefully before purchasing.
