H10MF Fuse Holder (10)x38mm H10H)

Gongfu Electronics specializes in the development, manufacturing, and supply of circuit protection components: fuses (circuit breakers), automotive blade fuses, fuse holders, automotive fuse clips, fuse boxes, automotive fuse holders, high-voltage fuses, DC circuit breakers, providing your products with safe and reliable circuit protection and comprehensive solutions.

2. Product Introduction

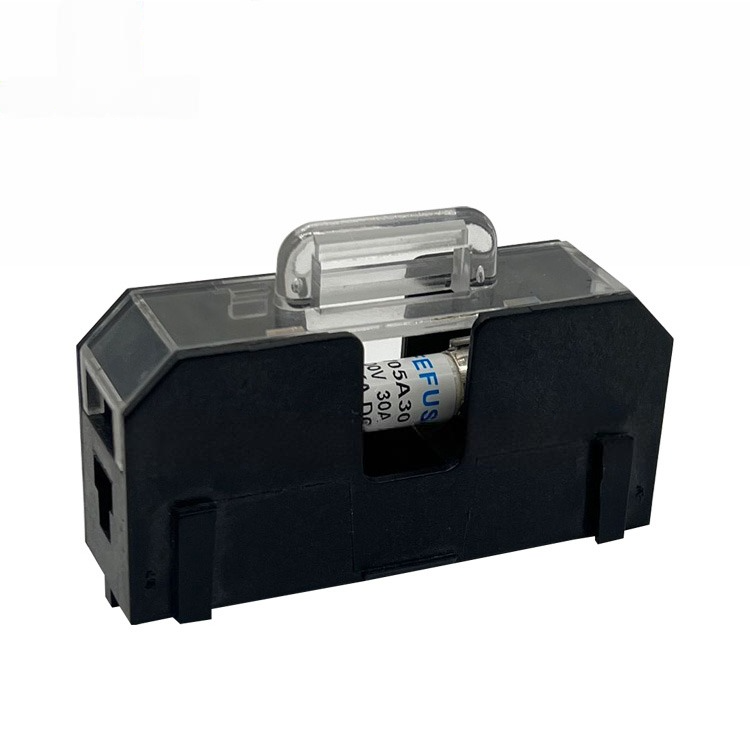

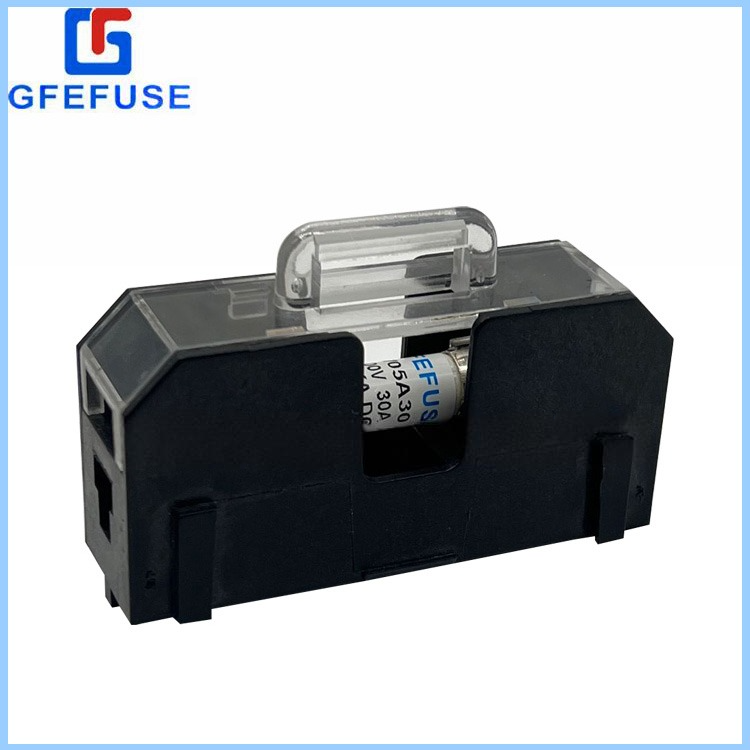

Product Model: H10 MF Fuse Holder

2. Product Application: 10 x 38 Fuses (GFEFUSE H10 H Compatible Fuses)

3. Voltage: 1000 DC Volts

4. Current: Up to 50 A (bolt), 30 A (clamp)

Dielectric Strength: 1200 V

6. Torque: 2.3 Newton (20 inch-pounds)

7. Wire Range: 14-7 AWG (1.6-8.4 mm²)

8. Clip Terminal: Tin-plated Copper Alloy (M5 Screw)

9. Screws and Pressure Plates: Galvanized Steel

10. Base: Thermoplastic Material

11. Operating Temperature: Up to 125°C

12. Flammability of Material: UL 94 V-0

13. Base: PET

14. Roof Cover: PC
