Product Performance:
Lishen Battery, based on years of relentless development and research of VRLA batteries (AGM separators), has successfully developed the LEOCH GEL BATTERY solely through its own technology and strength. Simulation accelerated tests have shown promising results. Lishen's gel battery quality indicators have all reached advanced international levels, and production has become serialized.
Technical Specifications
Long-term discharge characteristics.
2. Suitable for backup and energy storage power use.
3. Special plate design with a long service life.
4. Special lead calcium alloy formula enhances the corrosion resistance of the battery grid, extending battery lifespan.
5. The dedicated partition enhances the internal performance of the battery.
6. High heat capacity reduces the risk of thermal runaway, resists drying out, and can be used in harsher environments.
7. High gas composite efficiency.
8. No dehydration and electrolyte layering phenomenon.
9. Long shelf life.
10. Excellent deep discharge recovery performance.
11. Utilizes finely divided silicon dioxide with a large specific surface area.
Application Fields:
Versatile
Uninterruptible Power Supply (UPS)
3. Electronic Energy Systems
4. Emergency Backup Power Supply
5. Emergency Lights
6. Railway Signals
7. Avionics Signals
8. Security System
9. Electronic Equipment and Supplies
10. Communication System Power Supply
Direct Current Power Supply
12. Automatic Control Systems
Product List:
| Battery Model | Rated Voltage (V) | C20/Ah | C10/Ah | Dimensions (mm) | Terminal form | |||
| Long/L | Width/B | High | Total Height/TH | |||||
| DJW6-1.2 | 6 | 1.2 | 1.1 | 97 | 24 | 51.5 | 57.5 | T1 |
| DJW6-2.0 | 6 | 1.8 | 1.7 | 43 | 37 | 76 | 76 | / |
| DJW6-2.8 | 6 | 2.8 | 2.6 | 66 | 33 | 97 | 103 | T1 |
| DJW6-3.0 | 6 | 3.0 | 2.8 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-3.2 | 6 | 3.2 | 3.0 | 134 | 34 | 60 | 66 | T1 |
| DJW6-4.0 | 6 | 4.0 | 3.7 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-4.5 | 6 | 4.5 | 4.2 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-5.0 | 6 | 5.0 | 4.7 | 169.5 | 34.5 | 70 | 74 | T1 |
| DJW6-5.0T | 6 | 5.0 | 4.7 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-5.5 | 6 | 5.5 | 5.1 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-7.0 | 6 | 7.0 | 6.5 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-7.2 | 6 | 7.2 | 6.7 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-7.5 | 6 | 7.5 | 7.0 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-8.0 | 6 | 8.0 | 7.4 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-8.5 | 6 | 8.5 | 7.9 | 98 | 56 | 118 | 119.5 | T1/T2 |
| DJW6-10 | 6 | 10.0 | 9.3 | 151 | 50.5 | 94 | 100 | T1/T2 |
| DJW6-12 | 6 | 12.0 | 11.2 | 151 | 50.5 | 94 | 100 | T1/T2 |
| DJW6-20 | 6 | 20.0 | 18.6 | 157 | 83 | 125 | 125 | T3-A |
| DJW6-36 | 6 | 36.0 | 161 | 87 | 163 | 175 | T3-A | |
| DJW12-0.8 | 12 | 0.8 | 0.75 | 96 | 25 | 62 | 62 | / |
| DJW12-1.2 | 12 | 1.2 | 1.1 | 97 | 43 | 52 | 58 | T1 |
| DJW12-1.9 | 12 | 1.9 | 1.8 | 178 | 35 | 60 | 66 | T1 |
| DJW12-2.2 | 12 | 2.2 | 2.05 | 70.5 | 47.5 | 97 | 103 | T1 |
| DJW12-2.3 | 12 | 2.3 | 2.1 | 178 | 35 | 60 | 66 | T1 |
| DJW12-2.9 | 12 | 2.9 | 2.7 | 79 | 56 | 99 | 105 | T1 |
| DJW12-3.5 | 12 | 3.5 | 134 | 67 | 60.5 | 66.5 | T1 | |
| DJW12-4.0 | 12 | 4.0 | 3.7 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-4.5 | 12 | 4.5 | 4.2 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.0 | 12 | 5.0 | 4.7 | 151 | 53 | 93 | 99 | T1/T2 |
| DJW12-5.0T | 12 | 5.0 | 4.7 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.4 | 12 | 5.4 | 5.0 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.5 | 12 | 5.5 | 5.1 | 151 | 51 | 93 | 99 | T1/T2 |
| DJW12-6.5 | 12 | 6.5 | 6.1 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-7.0 | 12 | 7.0 | 6.5 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-7.5 | 12 | 7.5 | 7.0 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-8.0 | 12 | 8.0 | 7.5 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-8.8 | 12 | 8.8 | 8.2 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-10 | 12 | 10 | 9.3 | 151 | 98 | 95 | 101 | T1/T2 |
| DJW12-10B | 12 | 10 | 9.3 | 151 | 65 | 111 | 117 | T1/T2 |

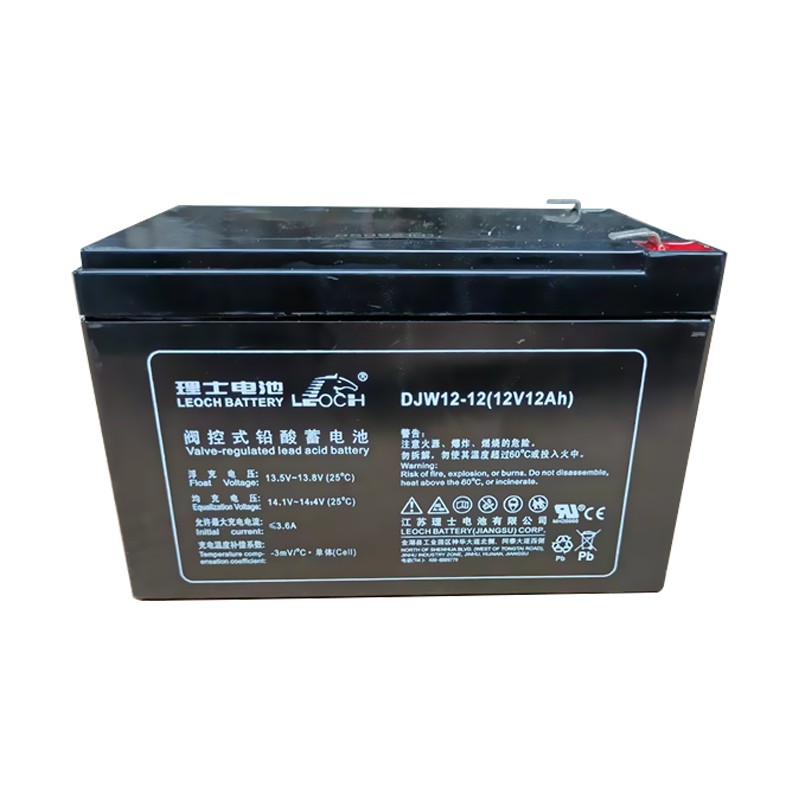

| DJW12-12 | 12 | 12 | 11.2 | 151 | 98 | 95 | 101 | T1/T2 |
| DJW12-15 | 12 | 15 | 14 | 181.5 | 76.5 | 167.5 | 167.5 | T3 |
| DJW12-18 | 12 | 18 | 16.7 | 181.5 | 76.5 | 167.5 | 167.5 | T3 |
| DJW12-20 | 12 | 20 | 18.6 | 181.5 | 76.5 | 167.5 | 167.5 | T3 |

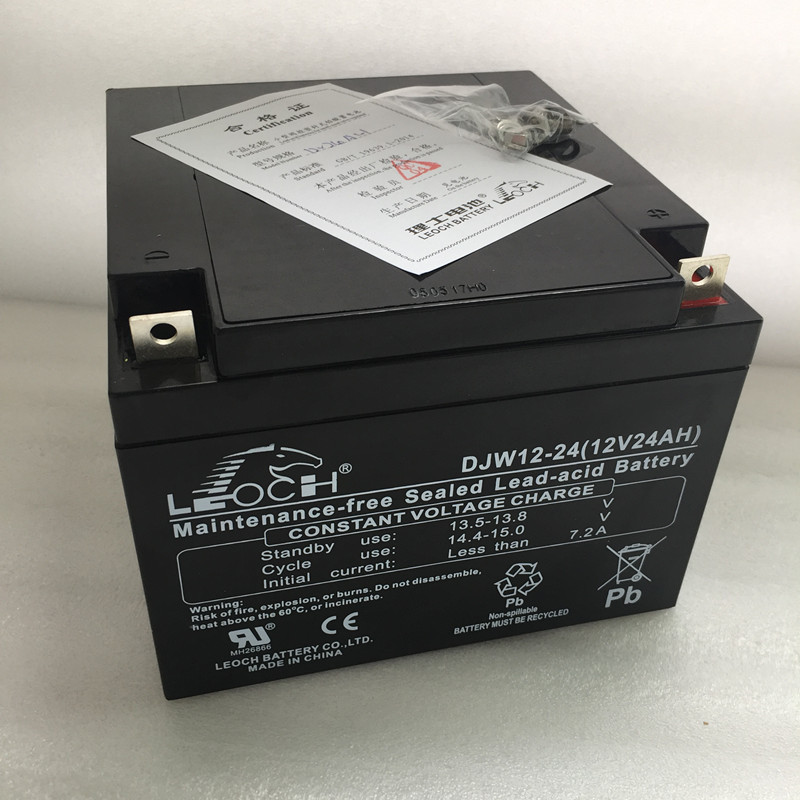

| DJW12-24 | 12 | 24 | 22.3 | 166 | 175 | 125 | 125 | T3 |
| DJW12-26 | 12 | 26 | 24.2 | 166 | 175 | 125 | 125 | T3 |
| DJW12-28 | 12 | 28 | 26 | 166 | 175 | 125 | 125 | T3 |
| DJW12-30 | 12 | 30 | 27.9 | 195 | 130 | 164 | 167 | T6 |
| DJW12-33 | 12 | 33 | 30.7 | 195 | 130 | 164 | 167 | T6 |
| DJW12-35 | 12 | 35 | 195 | 130 | 164 | 170 | T6 | |
