Inverse piezoelectric effect in electrical components, while the receiving transducer utilizes the piezoelectric effect.
Ultrasonic flow meters, like electromagnetic flow meters, are classified as obstruction-free flow meters due to the absence of any obstructions in the instrument's flow channel. They are a type of flow meter suitable for solving difficult flow measurement problems.
It boasts particularly outstanding advantages in large-diameter flow measurement and is among the rapidly evolving flow meters.
The Shanghai Meixu MX-LL-116-09WJ Split-Type Ultrasonic Flow Meters are widely used for online flow measurement of various liquids in industrial field applications.

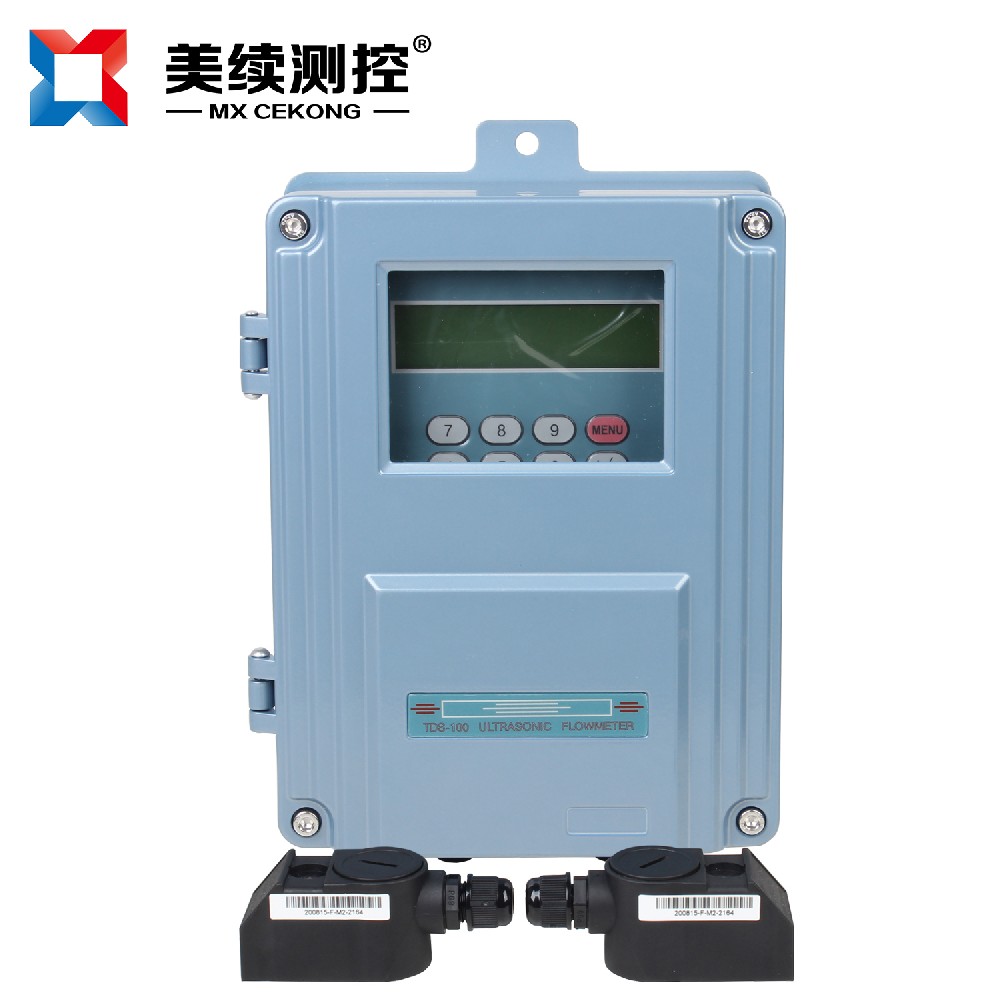

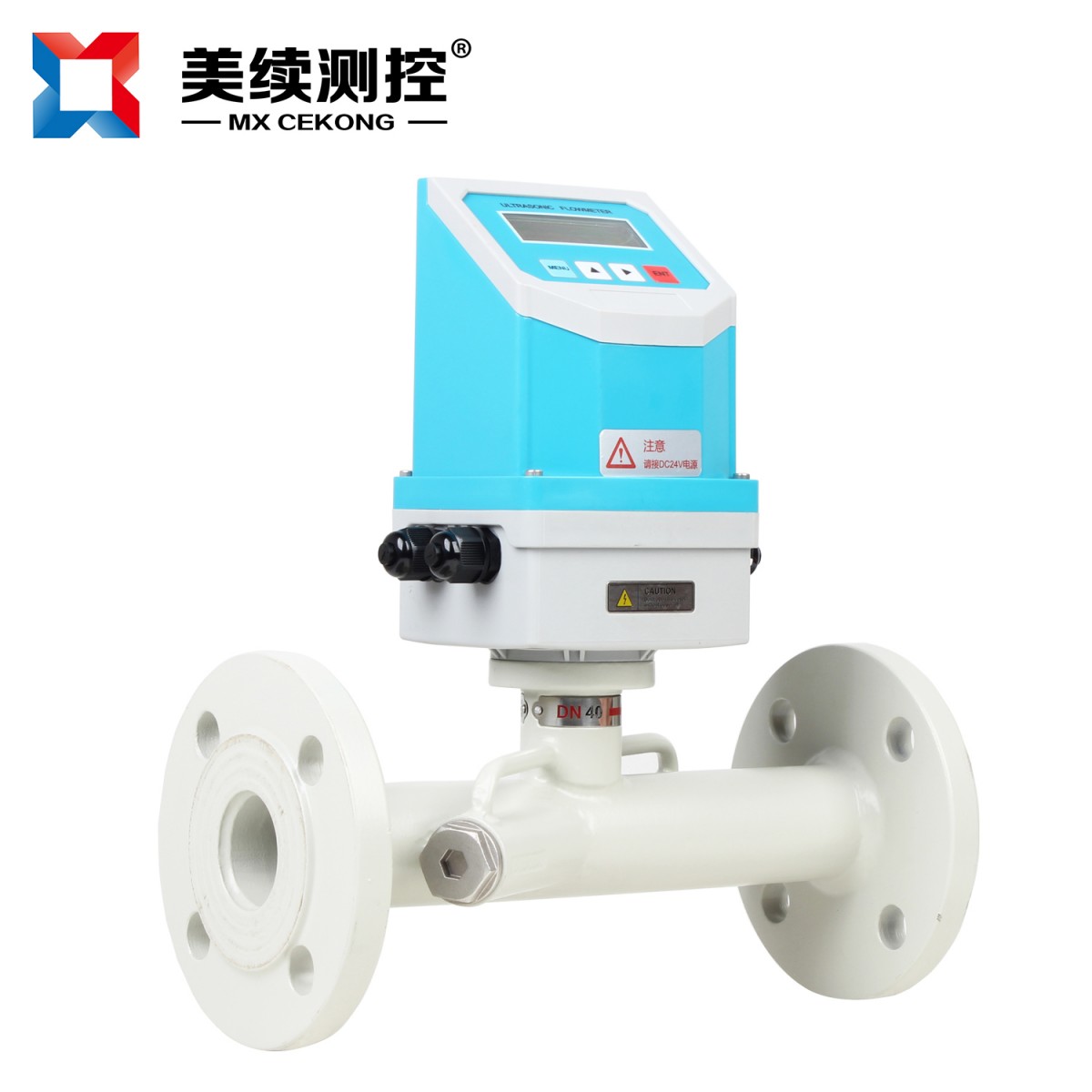

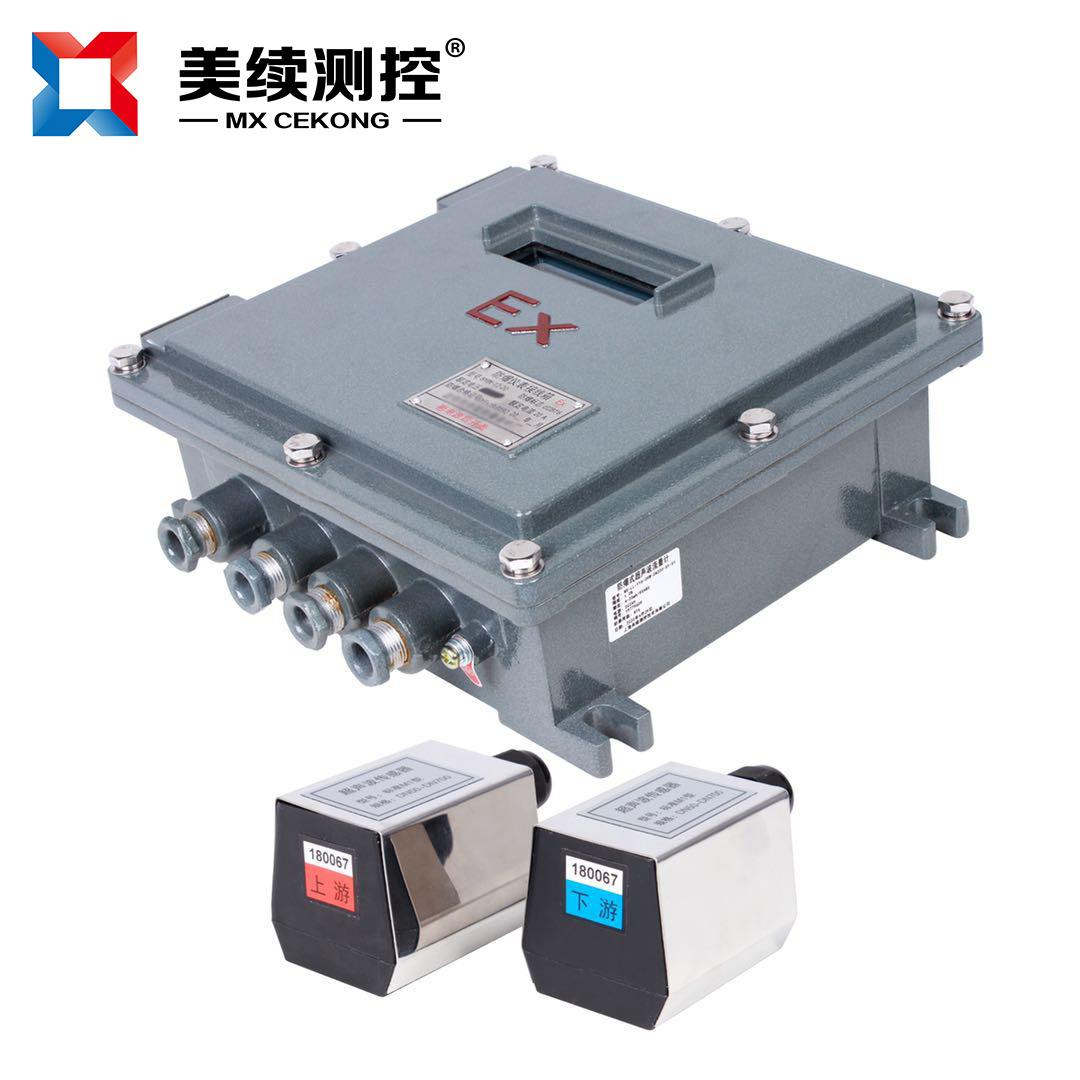

This model's main unit is available in wall-mounted standard, explosion-proof, floor-standing, and wall-mounted network types, while sensors come in external clamp, insertable, and pipeline configurations, catering to various on-site usage requirements of customers.
2. Application Fields:
Petroleum & Chemical Industry, Steel & Metallurgy
Water Supply & Drainage, Irrigation Engineering
Water Treatment, Wastewater Treatment Plants (Environmental Pollution Control)
Alcohol, oils, wastewater, etc. fluids
Distillation Deactivation Engineering System, Condensate Water Measurement
3. Product Features
Mechanical transmission components-free, less prone to damage, maintenance-free, long lifespan.
Pipe segment style small diameter measurement is economical and convenient, with accurate measurement and high precision.
External coupling and insertion types are well-suited for large-diameter flow measurement industry.
Good repeatability, typically 0.05～0.08%, with optional small signal cut-off, non-linear correction, and selectable filter time.
Minimal pressure loss; large diameters can use external flanged design.
Can measure non-conductive media: pure water, oil, etc.
High anti-interference and anti-contamination capability, multiple output forms, can transmit various parameters remotely, no need to mix with heat.
4. Split-body exterior dimensions:
