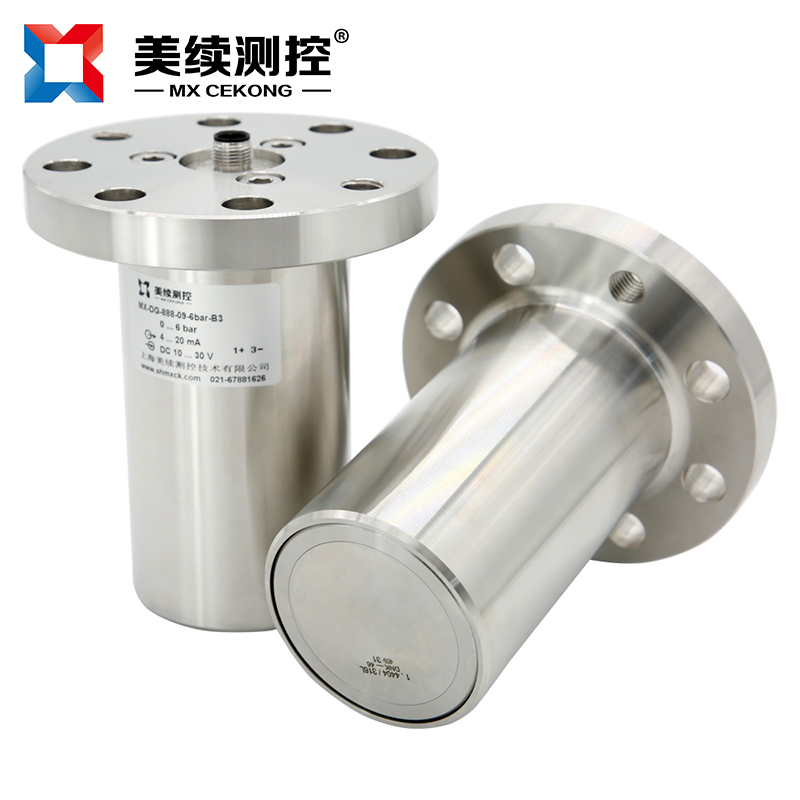

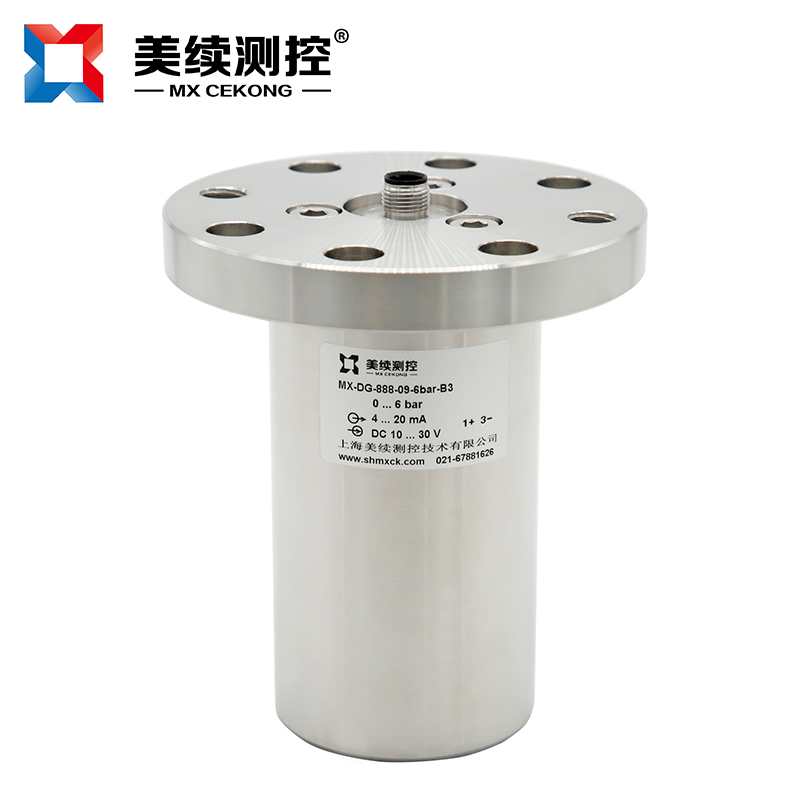

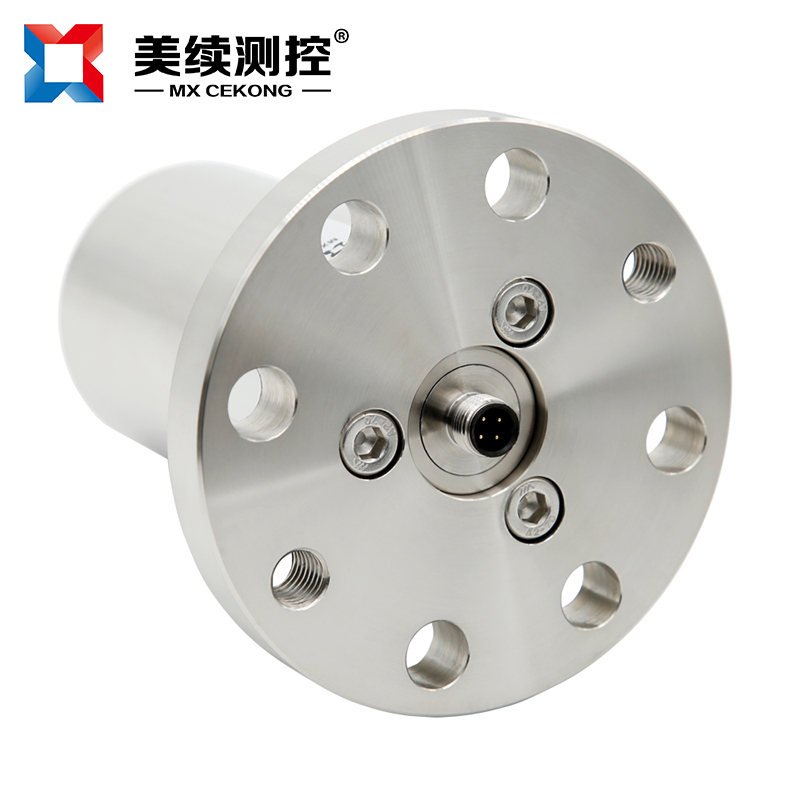

The Shanghai Meixu MX-DG-888-09 series Soil Pressure Transmitters feature high-performance, high-overload single crystal silicon cores and high-stability amplification circuits. The sensor's pressure measurement front end utilizes a sturdy, specially treated diaphragm, made of special metal and unique technology. The structural design allows it to function normally in harsh environments such as mud and sand particles. This product is compact, corrosion-resistant, vibration-resistant, particle impact-resistant, and offers wide-temperature compensation. Its unique waterproof sealing structure at the front end makes it widely applicable in areas such as subway shield machines and construction machinery.

Application Fields

Industrial Automation Application Fields

Tunnel Boring Machine Sector

Trenchless Pipe Jacking Industry for Construction Machinery Applications

Petroleum & Chemical Machinery

Loading machinery, sand挖掘机

Environmental Management/Wastewater Treatment

Reclamation for Road Construction/Mud Slurry Monitoring

Product Features

?0...100 bar wide pressure range available

High-Precision Single Crystal Silicon Core Body

Laser Cold Welding Process, Pure Stainless Steel Construction

High precision, no calibration required.

Miniature Amplifier, Voltage and Current Signal Output

High anti-interference, excellent long-term stability

Vibration and shock resistance/shockproof against sand particle impact

Wide temperature compensation

Technical Specifications

Ordering Guide
