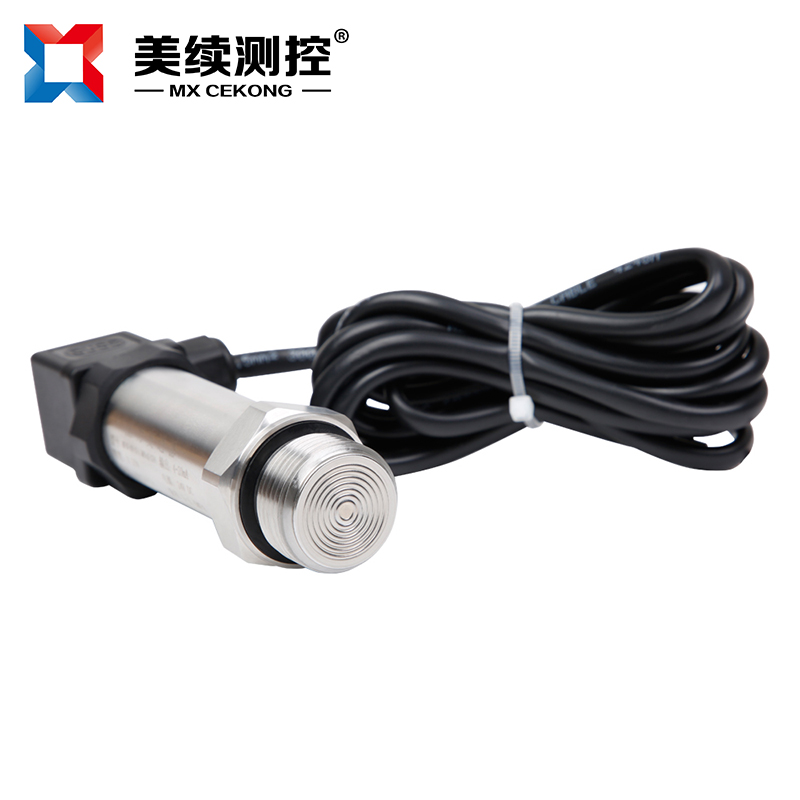

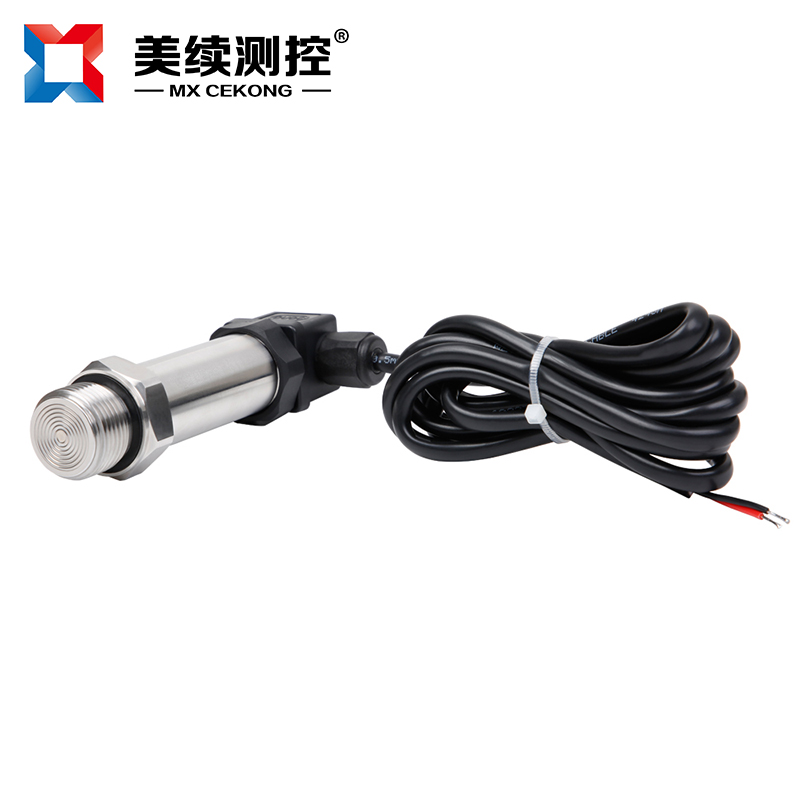

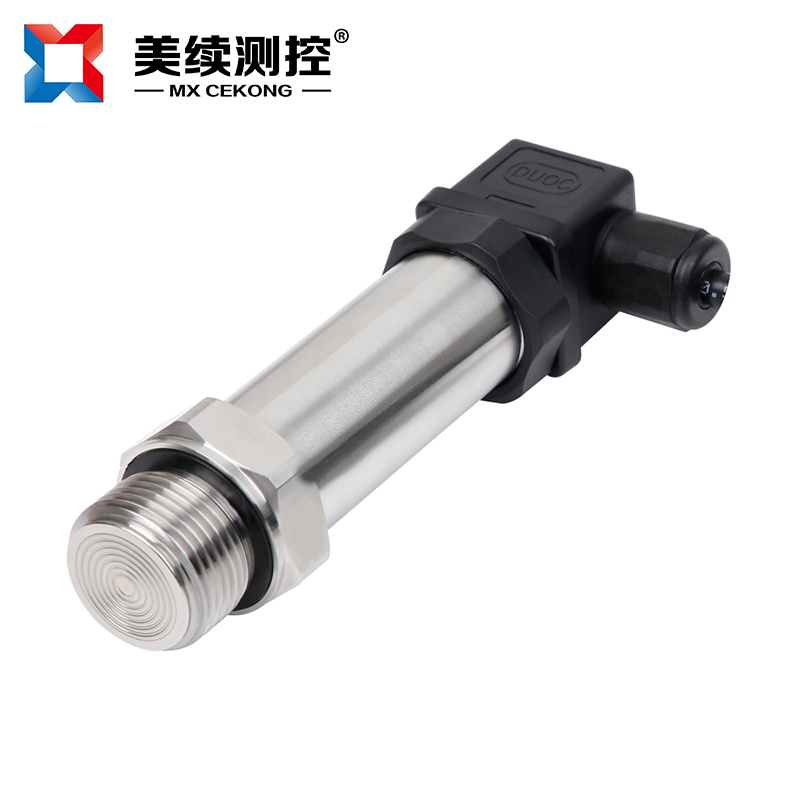

The Shanghai Meixu MX-DG-888-02 series membrane pressure transmitters are developed by our company for the complex working environments in construction machinery and environmental protection industries: conventional industrial pressure transmitters are in the form of a pressure port, which cannot effectively measure liquids and gases containing impurities. The Shanghai Meixu MX-DG-888-02 series, however, adopts a diaphragm isolation form, capable of measuring sludge, viscosity media, and fine particle media. It can effectively handle many complex working conditions. With the increasing degree of automation, this product features a compact structure, corrosion resistance, vibration resistance, particle impact resistance, and wide temperature compensation. It is particularly suitable for measuring the pressure of high-viscosity fluids or fluids with particles. It is widely used in industrial automated dispensing machines, tunnel boring machines, the food industry, and other fields.

Application Fields

Industrial Automation Applications

?Syringe dispensers, adhesive applicators

Tunnel Boring Machines - Micro Tunneling Equipment Industry

Sanitary Applications / Food & Beverage Processing Industry

?Laboratory or Testing Equipment

Environmental Management/Wastewater Treatment

Reclamation for road construction/Oil & Petrochemical Industry

Product Features

Pressure range from 0...1 bar to 0...1000 bar wide selection available

High-temperature-sensitive imported components

Laser Cold Welding Process, Heat Sink Assembly

High precision, no calibration required, high precision, full stainless steel structure

Miniature Amplifier, Voltage and Current Signal Output

Strong anti-interference and good long-term stability

Wavy isolation film, longer service life

Wide measurement range, capable of measuring absolute pressure, gauge pressure, and sealed reference pressure

Vibration and impact resistance / Sand particle impact resistance

Dimensions

Technical Specifications

Wiring method

Ordering Guide
