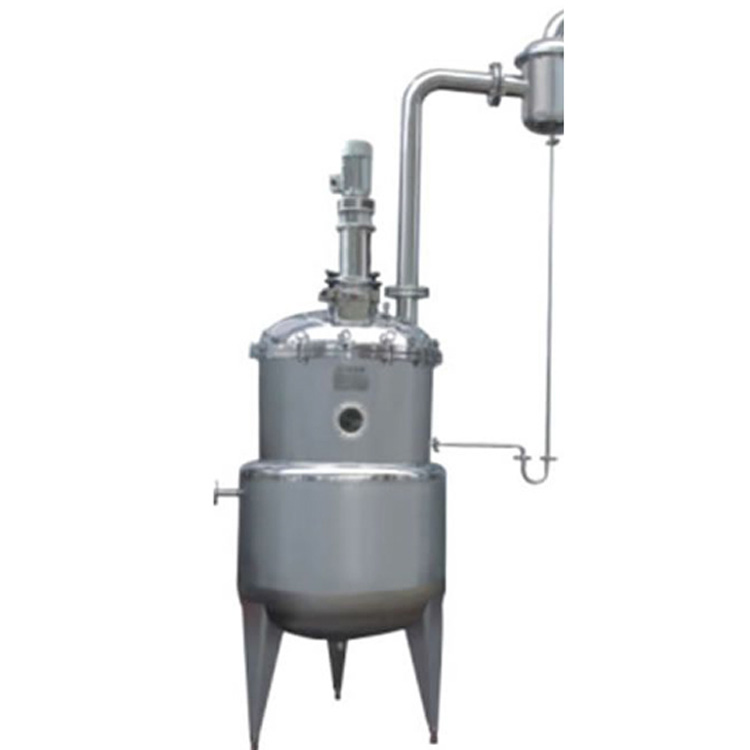

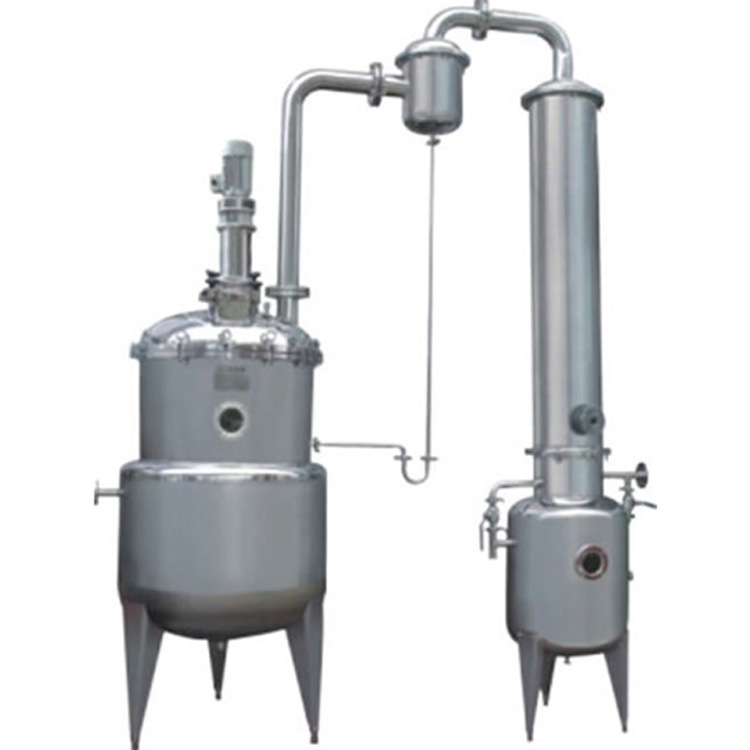

Vacuum Pressure Concentration Vessel
1. Concentrate Tank 2. Condenser 3. Vapor-Liquid Separator 4. Type II Condenser 5. Cooler 6. Receiver Sump
Primary Application
Primarily used for the concentration of liquids in food and chemical industries, and also capable of recovering alcohol and performing simple reflux extractions.
Structure
This equipment is mainly composed of six components: a concentration tank, a condenser, a vapor-liquid separator, a secondary condenser, a cooler, and a receiving tank, all made of stainless steel. The concentration tank features a jacketed structure, the condenser is in a tube bundle design, and the cooler has a coiled tube configuration.
Key Technical Parameters
| 50 | 100 | 200 | 300 | 500 | 700 | |
| Steam Pressure: Mpa | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| Vacuum Degree mmHg | ≤700 | ≤700 | ≤640 | ≤640 | ≤600 | ≤600 |
| Heating Area m2 | 0.4 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 |
| Condensation Area m2 | 1.2 | 1.7 | 2.45 | 3.0 | 3.2 | 3.6 |
| Cooling Area m2 | 0.25 | 0.35 | 0.4 | 0.6 | 0.7 | 0.85 |
| Volume of heating trough: L | 15 | 45 | 60 | 76 | 100 | 125 |
| Net Weight of Equipment | ~350 | ~450 | ~550 | ~650 | ~800 | ~1000 |
| 外形尺寸: External Dimensions Length x Width x Height mm | 1200×600×2200 | 1350×750×2200 | 1700×800×2700 | 1700×1000×3400 | 2100×1200×3400 | 2400×1300×3400 |
