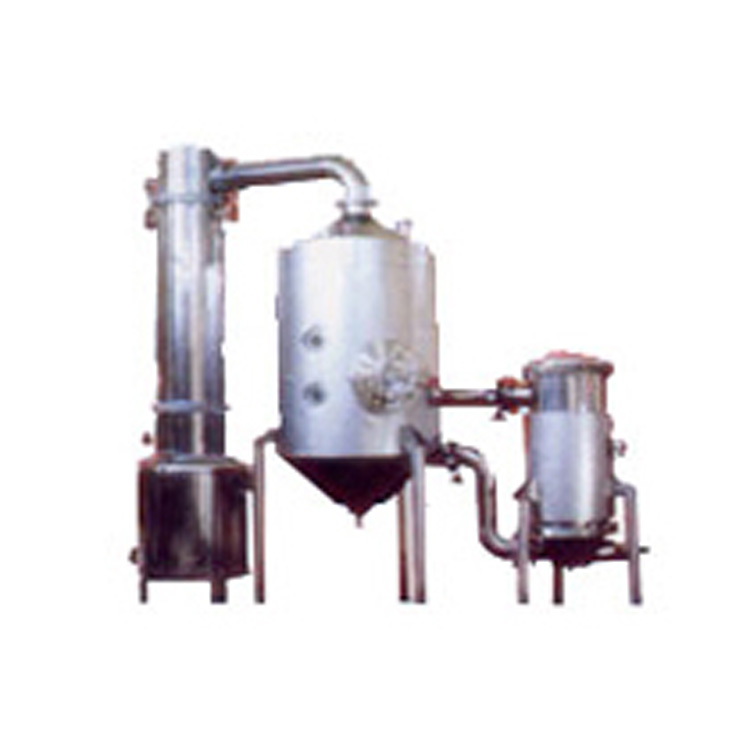

WZN Type External Circulation Concentrating Pot
WZN Type External Circulation Concentration Pot

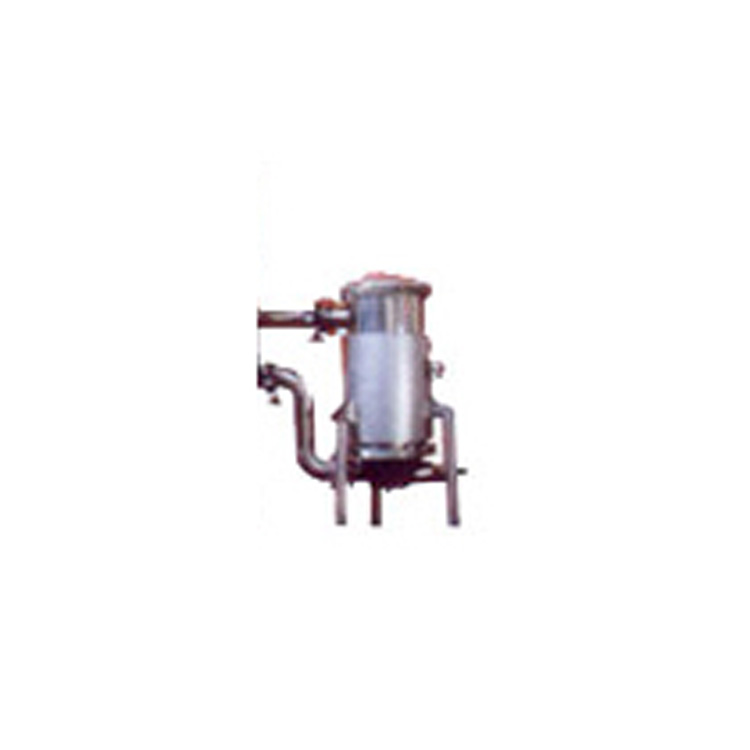

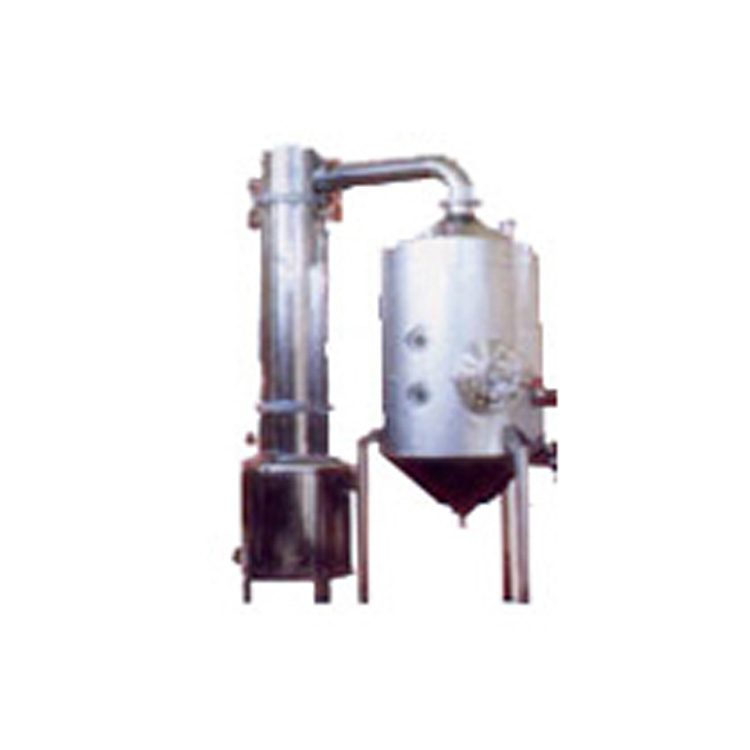

The evaporator of this modular external circulation concentration pot features two stages of steam interlayers, which can be used to supply gas for heating through the upper and lower interlayers based on the liquid level, allowing for the production of high-density extracts.
| Model | WZN-100 | WZN-200 | WZN-500 | WZN-1000 |
| Pipe Tube Heating2 | 1.2 | 2.3 | 6.7 | 11.2 |
| 套装加热器2 | 0.3 | 0.5 | 1.1 | 1.3 |
| Evaporation Rate kg/h | 100 | 200 | 500 | 1000 |
| Steam Pressure MPa | <0.1 | <0.1 | <0.1 | <0.1 |
| Water consumption: kg/h | 1200 | 2500 | 6000 | 12000 |
| Gas consumption: kg/h | 110 | 220 | 660 | 1100 |
| Length: m, Width: m, Height: m | 3×1×2.3 | 3.5×1.2×3 | 4×1.5×4 | 6×1.5×4.5 |
