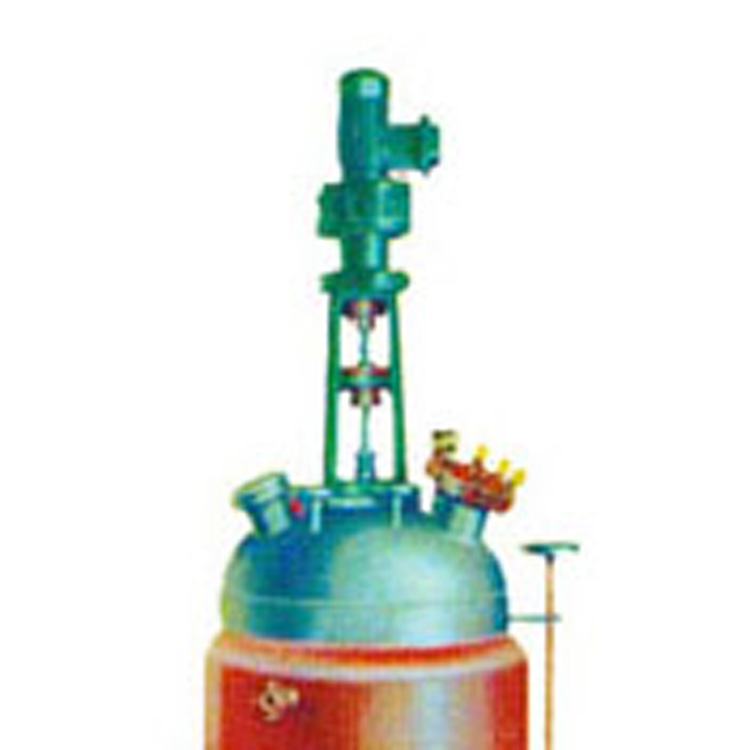

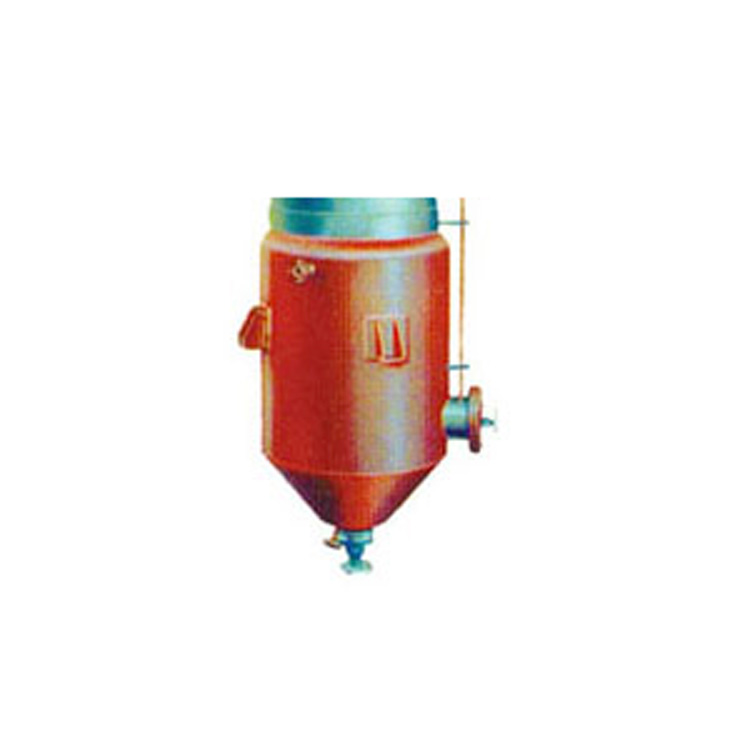

JC Type Chinese Herbal Alcohol Sediment Tank
JC Type Chinese Herbal Alcohol Sedimentation Tank Main Technical Parameters
| Project | Unit | JC-300 | JC-500 | JC-1000 | JC-1500 | JC-2000 | JC-3000 |
| Volume | m3 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 |
| Heat Exchange Area | m2 | 1.8 | 3.0 | 4.5 | 6.5 | 7.0 | 9.5 |
| Operating Temperature | ℃ | -15 to room temperature | -15 to room temperature | -15 to room temperature | -15 to room temperature | -15 to room temperature | -15 to room temperature |
| High working pressure heat exchange medium | MPa | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Working Medium Working Pressure | MPa | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Heat Transfer Technology | KJ/M2.h.℃ | 150~200 | 150~200 | 150~200 | 150~200 | 150~200 | 150~200 |
| Agitator Power | KW | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 2.2 |
| Agitator Speed | r/min | 250 | 250 | 160 | 160 | 160 | 140 |
| Total Weight | kg | 612 | 1260 | 1480 | 1750 | 1670 | 2135 |
