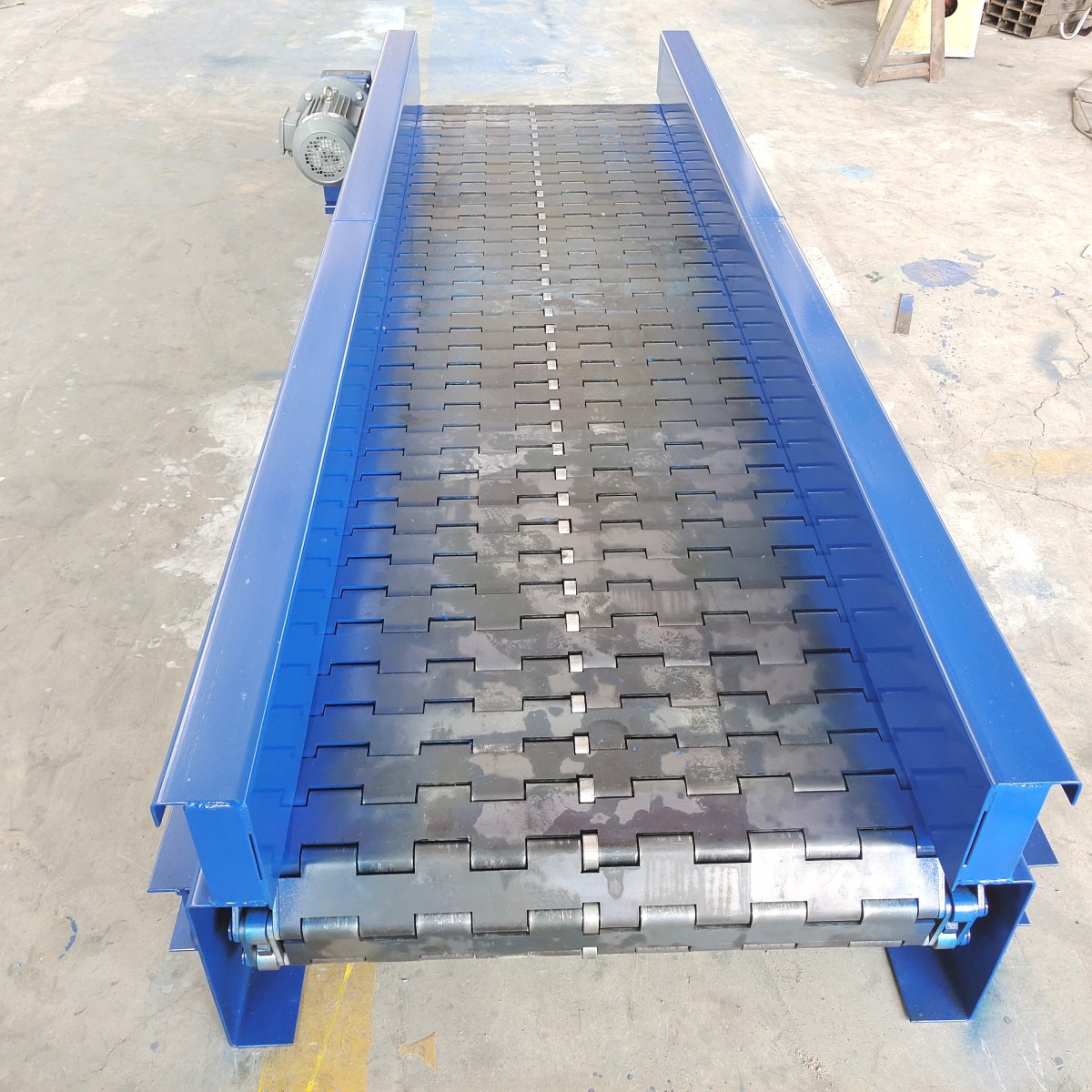

Heavy-duty chain plate loaderWidely used, the chain plate material is carbon steel, stainless steel, and plastic steel, with a smooth and even conveying surface, low friction, and stable operation. The layout of the chain plate hoist is also flexible. Choose a positioning carrier to use the included tools, as the material is irregular; simply placing it without tools will affect subsequent picking. Therefore, the included tools are used. The motion mode is driven by a reducer and synchronous belt.
Heavy-duty chain board loaderDuring transportation, additional support measures are usually required to bear the load and prevent the conveyor belt from deforming, which could severely affect its service life. This should be considered when designing the layout and installation. The industry deity has likely encountered it before. Regardless of the conveyor, belt, or synchronous belt drive, it's essential to consider implementing tightening measures. The model features an opening for a square groove in the mounting block, and the position of the connecting block on the driven shaft within the square groove is adjusted via screws to modify tension. Naturally, adjustments on both sides should be made. The adjustment range is generally not large. Tension adjustment is more common in design, so you should accumulate some similar structures in the usual manner, which will aid in future work.
Heavy-duty chain conveyor loading machineFull stainless steel structure, chain plate conveyor belt, no exposed fasteners, brand new design; heavy-duty chain plate feeding machine, stylish and generous; stable and reliable conveying performance, infinitely variable scheduling; easy to use; suitable for high-quality and precision equipment with strict appearance and quality requirements.
Heavy-duty chain conveyor feeding machineSpeed: 0.25 m/s, 0.4 m/s, 0.5 m/s, 0.8 m/s, 1.0 m/s, 1.25 m/s, 1.6 m/s, 2.0 m/s, 2.5 m/s, 3.15 m/s, 4.0 m/s, 4.5 m/s, 5.0 m/s, 5.6 m/s, 6.5 m/s.

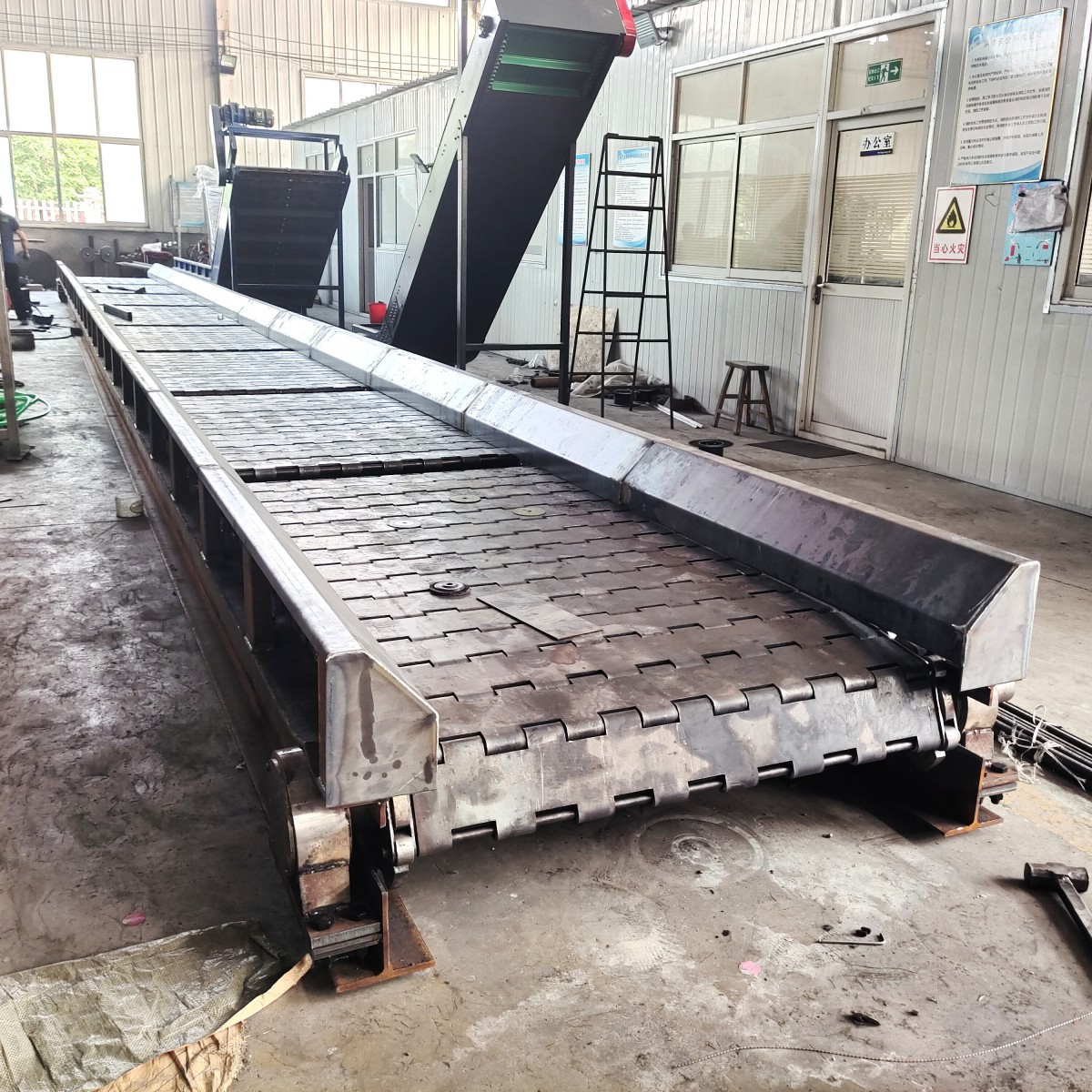

Heavy-duty chain conveyor loaderThe rack is composed of the head shelf, tail shelf, and middle shelves. It is welded using channel steel, angle steel, and reinforced steel plates. The middle of the rack features four tracks for roller operation, made of light rail.
Heavy-duty chain plate feeding machineThe supporting structure, primarily designed to provide a running track for the roller chain of the conveyor, and to offer a sturdy support component for the fixed chain plates. The design of the chain plate hoist comes in three types:
1. Utilizes steel rail for load-bearing and return track.
2. A & B type combination, with steel rail as the carrying track, heavy-duty chain plate feeder manufacturer, return track in negative steel.
3. Features tracks with a load and return chain, made of mild steel, generally fitted with wear-resistant steel rods.
Chain conveyor lifters utilize the speed difference between multiple rows of chains to convert multiple-row conveyance into a single-row conveyance without any compression, thereby meeting the requirements of single-row conveyance for equipment such as beverage labeling, filling, and cleaning. Similarly, they can also convert a single row into multiple rows moving slowly, thereby creating storage capacity.
