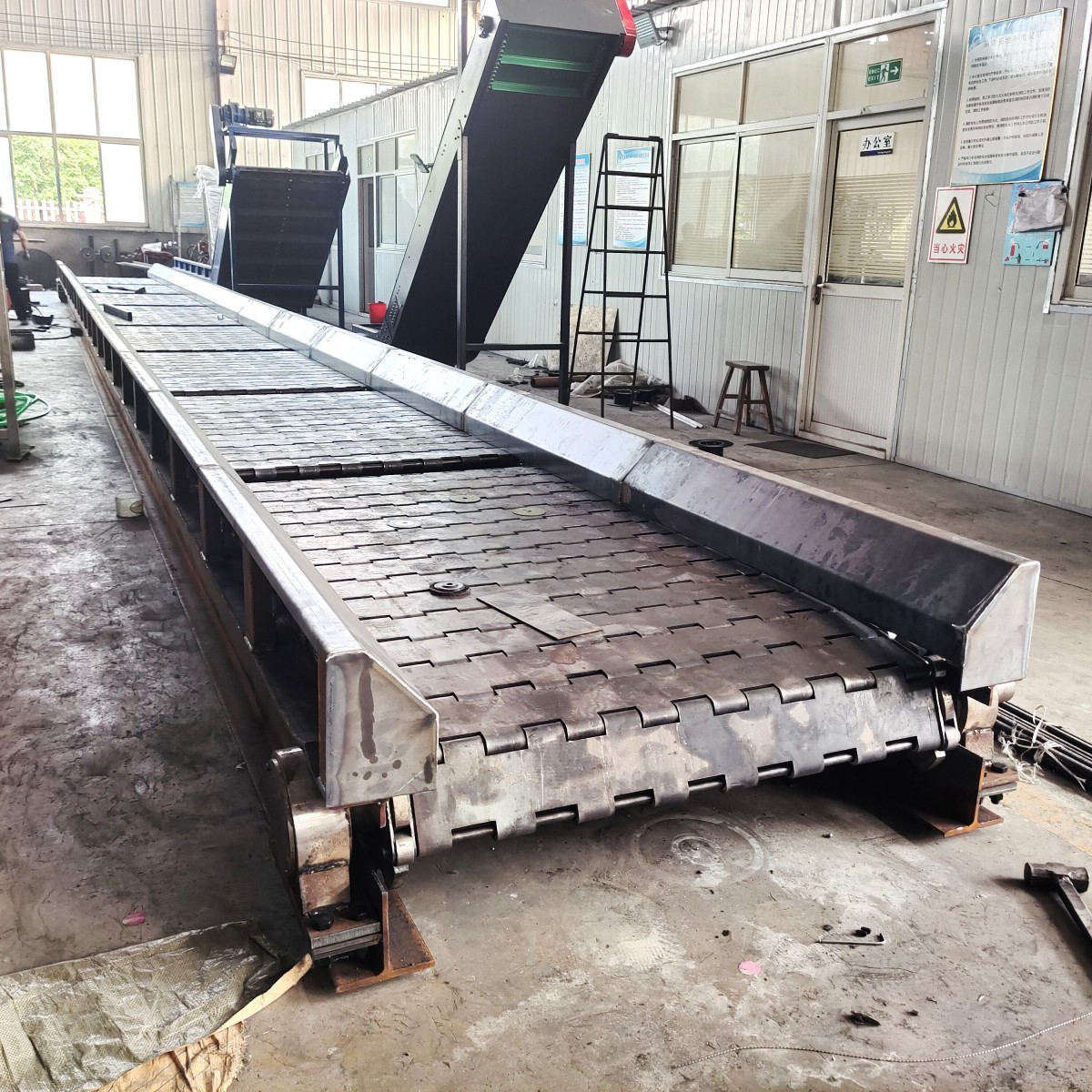

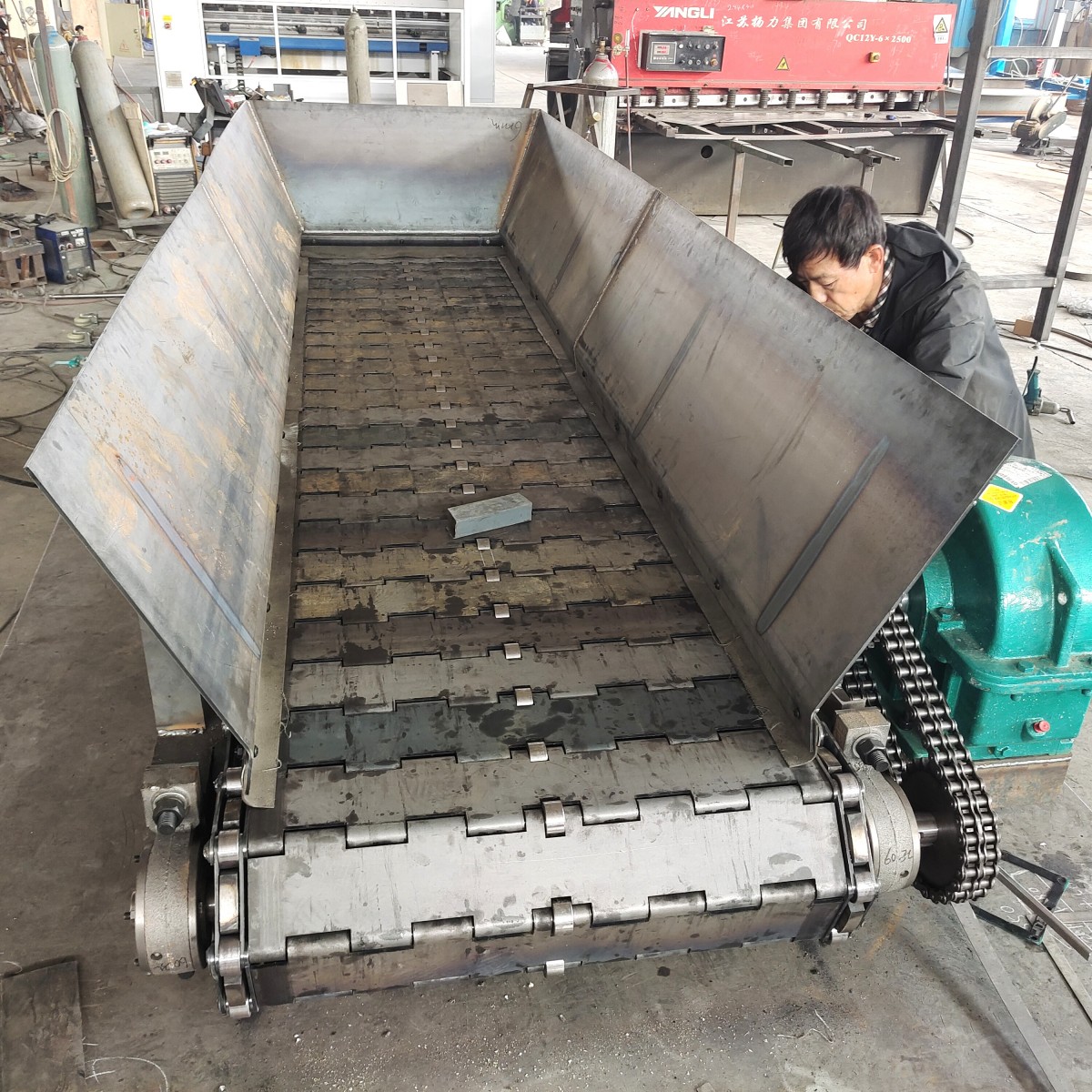

Heavy-duty Chain Plate Conveyor ManufacturerHeavy-duty conveying for irregularly shaped items, featuring hollow large roller chains with attached chain links. The conveyor direction is formed into a continuous flat plate by connecting plate-like structures on the attachments of the synchronized chains on both sides, thus ensuring smooth operation. This machine, when used in conjunction with chain or roller conveyors, can facilitate corner conveying. The width of the heavy-duty chain plate conveyor can be customized according to customer requirements.
Heavy-duty Chain Plate Conveyor ManufacturerAlso a type of chain conveyor, utilizing a high-strength flexible chain as the conveying medium, suitable for both straight-line and curved conveying; boasts good adaptability and cost-effectiveness, smooth conveying, small turning radius, low noise, low wear, easy cleaning, and easy maintenance.
Heavy-duty Chain Plate Conveyor ManufacturerIt is a special flat-top chain conveyor with small pitch and flexible rotation, suitable for conveying light, regular-shaped industrial products. It is ideal for the transportation of regular paper, wooden, and plastic packaging boxes, as well as material boxes. The ribbed chain conveyor is commonly used for milk transportation and has gained popularity in the food industry, particularly in the catering sector, significantly enhancing efficiency.
Chain plate widths: 43.5, 53, 53.2, 55, 57.2 (mm); pitch: 50, 63.5, 82.5 (mm); turning radius: 150 (mm); reverse turning radius: 50 (mm).
Heavy-duty Chain Plate Conveyor ManufacturerCharacterized by: simple structure, small cross-sectional dimensions, good sealing, reliable operation, low manufacturing cost, easy for intermediate loading and unloading, reversible conveying direction, and capable of conveying in both opposite directions simultaneously. Material mixing, blending, heating, and cooling can be performed during the conveying process. Material flow can be adjusted through the loading and unloading gates. However, it is not suitable for conveying materials that are prone to spoilage, highly adhesive, easily caking, or large pieces. Materials are prone to breakage during conveying, and the spiral and hopper are susceptible to wear. It has a high power per unit. Maintain the sealing of the hopper and appropriate spacing between the spiral and the hopper during use.
Heavy-duty Chain Plate Conveyor ManufacturerIt is an ideal conveying equipment for various industries such as building materials and food. The structure is simple, wear-resistant, and corrosion-resistant, with high conveying capacity and low energy consumption. However, improper maintenance and incorrect methods of use can significantly shorten the service life of the chain plate conveyor. For this reason, the manufacturer has summarized the following points for your reference:
Chain Sprocket Maintenance: During the operation of conveyors, the chain sprocket is prone to excessive wear, which can lead to uneven engagement between the sprocket and chain, potentially damaging other components. Therefore, it is crucial to lubricate the sprocket regularly and replace it promptly if damage is detected.
2. Transmission System Maintenance: Precision hard tooth surface reducers, heavy-duty bend plate chains, and hydraulic couplings are selected, making the drive system structure extremely compact, especially suitable for power transmission in conveying machinery drive systems, with smoother operation and lower noise.
3. Improvements and maintenance of the housing section. The bottom of the housing is also a prone area for wear. In heavy-duty chain conveyor factories, to extend the service life of the conveying equipment, cement machinery is equipped with 4 wear-resistant plates at the bottom of the conveyor, making it more wear-resistant and reducing friction.
Heavy-duty Chain Plate Conveyor ManufacturerChain plates are available in shaft-connected type and flat-top chain plates. The flat-top chain plates come in two materials: 2Gr13 and 304 stainless steel. Both types of chain plates offer wear resistance and high toughness. The 2Gr13 material is commonly used in industrial applications, while the food and packaging industries require 304 stainless steel chain plates. Flat-top chain plates are available in two models: straight-line and bend chain plates. The pitch of the chain plates is 38.1mm, and the width sizes include 86.2mm, 101.6mm, 127mm, 152.4mm, and 190.5mm. Flat-top chain plates are essential conveyor chains for water bottling and edible oil filling lines.
Heavy-duty Chain Plate Conveyor ManufacturerCategorized by material:
Available in stainless steel top deck chain and plastic top deck chain.
By transportation form classification:
Straight-top Chain, Bend-top Chain, and Incline-top Chain
By Function Category:
Flat Top Chain, Link Chain, Skeleton Chain, and Modular Mesh Chain [2]
Chain Plate Conveyor Features:
The chain plates are made of stainless steel and engineering plastics.
2. Continuous and intermittent operation is achievable.
3. Durable and long-lasting.
4. Chain wheel drive, smooth transmission, less prone to deviation.
5. Modular structure, easy to disassemble, reducing maintenance costs
Qingzhou Heavy Chain Plate Conveyor Line Factory operates with integrity ['Multiple Images'] provided by Shandong Teres Machinery Equipment Co., Ltd. Shandong Teres Machinery Equipment Co., Ltd. is a company specializing in "chain plate conveyors, mesh belt conveyors, drum conveyors, belt conveyors, mesh belts, and chain plates." Since its establishment, we have adhered to the policy of "integrity first, stable operation," actively participating in the healthy market competition, and earning a good reputation for the "Teres" brand. We uphold the principle of "customer service above all, customers first," which has helped Teres gain customers' trust and establish a positive corporate image. Special Note: The images and information provided here are for reference only. Please contact us for accurate information. Thank you!
