The hydraulic station is an independent hydraulic unit. It supplies oil on a step-by-step basis and controls the direction, pressure, and flow of hydraulic oil, suitable for various hydraulic machinery where the main unit and the hydraulic unit can be separated. After purchase, the user simply connects the hydraulic station to the actuator (cylinder or motor) on the main unit with oil pipes, and the hydraulic machinery can perform various specified actions and work cycles.

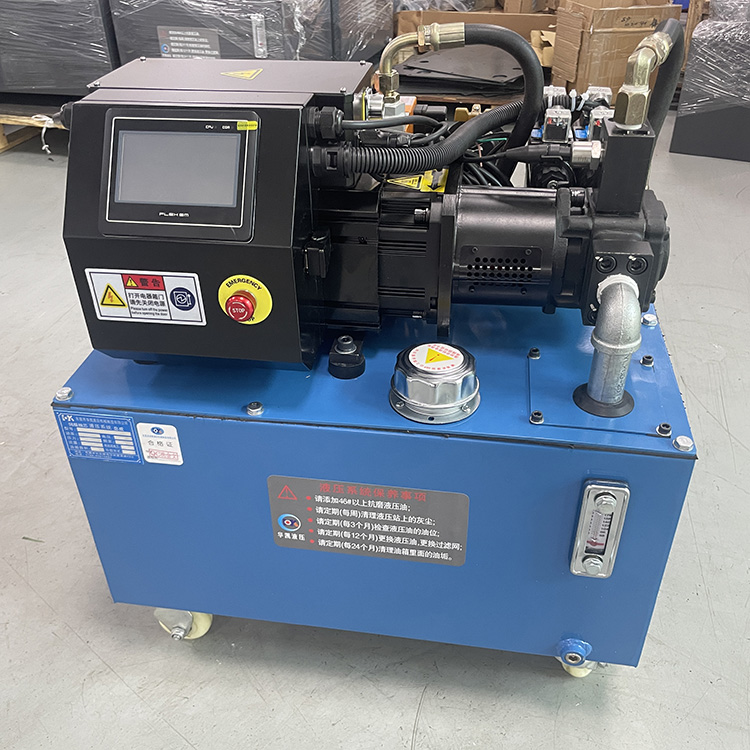

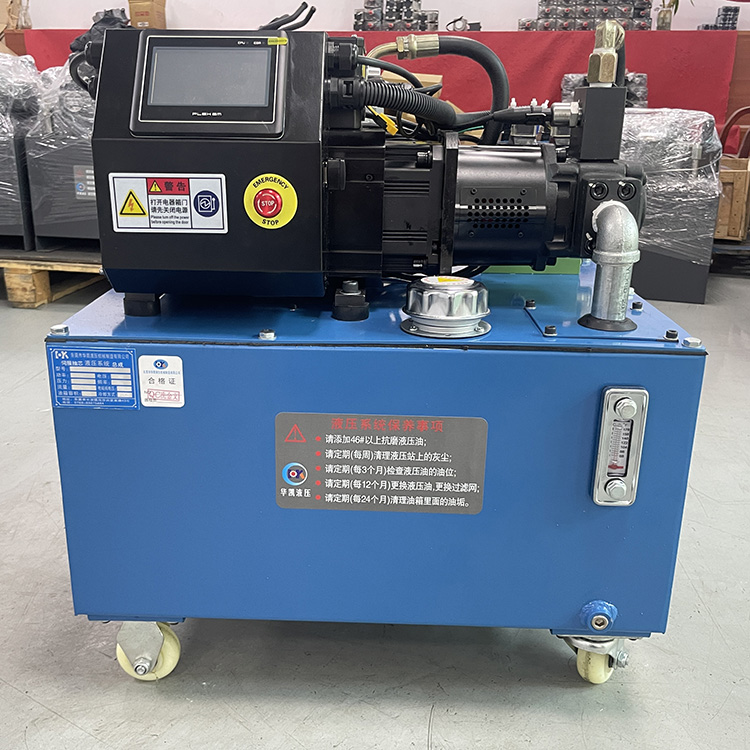

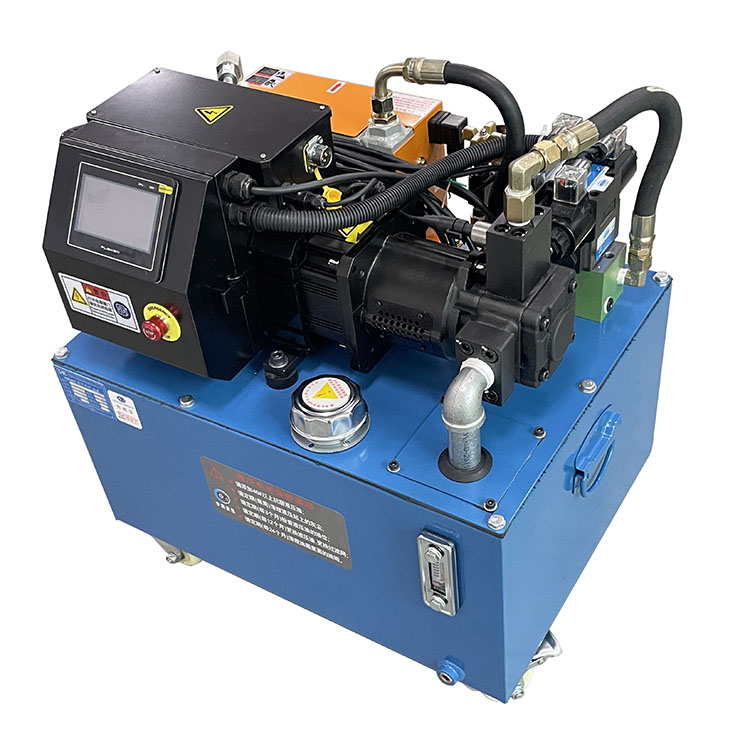

The hydraulic station is composed of a pump unit, an integrated block or valve assembly, a reservoir, and an electrical box combination. The functions of each component are:

Pump unit -- Equipped with an electric motor and an oil pump, it serves as the power source of the hydraulic station, converting mechanical energy into the pressure energy of hydraulic oil.

Integrated block – assembled from hydraulic valves and channel bodies. Performs directional, pressure, and flow regulation on hydraulic oil.

Valve assembly – Plate valves mounted on upright plates, pipe connections at the back, serving the same function as integrated modules.

Fuel Tank – A semi-enclosed container, welded flat, equipped with an oil filter mesh, air filter, etc., used for storing oil, cooling, and filtering.

Electrical box - comes in two types. One features a terminal board with external wiring terminals; the other is equipped with a full set of control appliances.

The working principle of the hydraulic station: The motor drives the oil pump to rotate, which吸取 from the oil tank and supplies oil, converting mechanical energy into pressure energy of the hydraulic station. The hydraulic oil, after directional, pressure, and flow adjustments through an integrated block (or valve assembly), is then routed through external piping to the hydraulic cylinder or motor of the hydraulic machinery, controlling the direction change, force magnitude, and speed of the liquid motor, thereby propelling various hydraulic machinery to perform work.
