The hydraulic station is an independent hydraulic unit. It supplies oil in a step-by-step manner. It controls the direction, pressure, and flow of hydraulic oil, suitable for various hydraulic machinery where the main unit and hydraulic unit can be separated. After purchase, users simply connect the hydraulic station to the actuator (cylinder or motor) on the main unit with oil pipes, and the hydraulic machinery can perform various specified actions and work cycles.

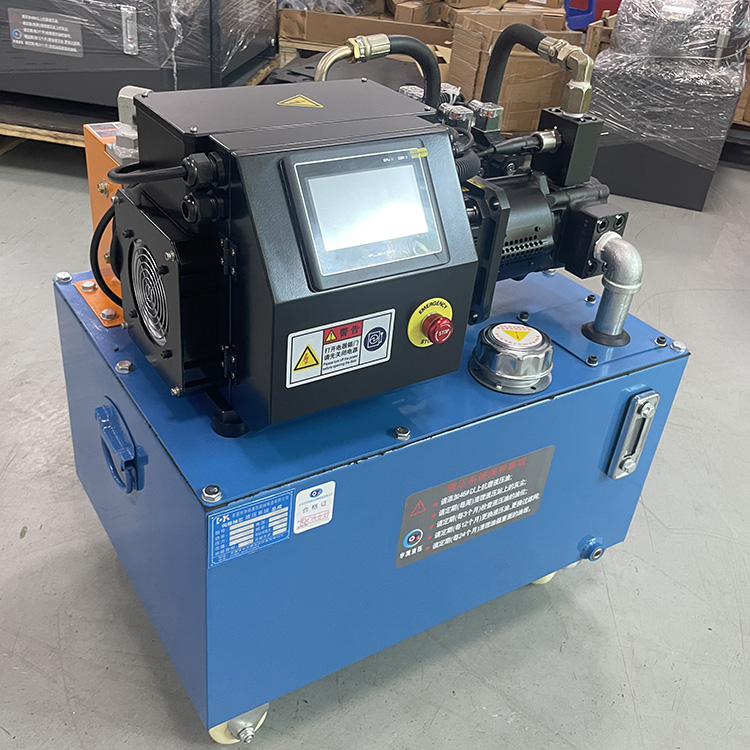

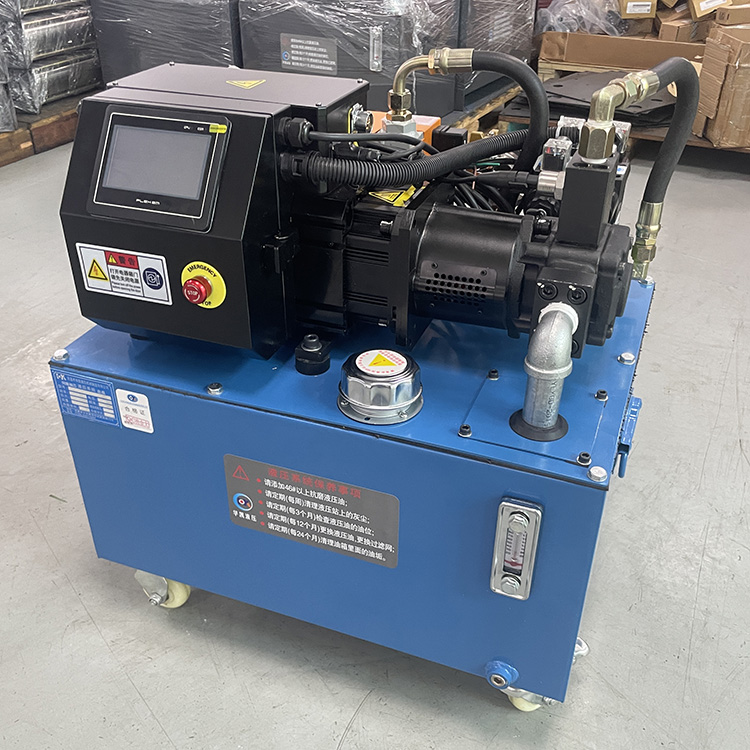

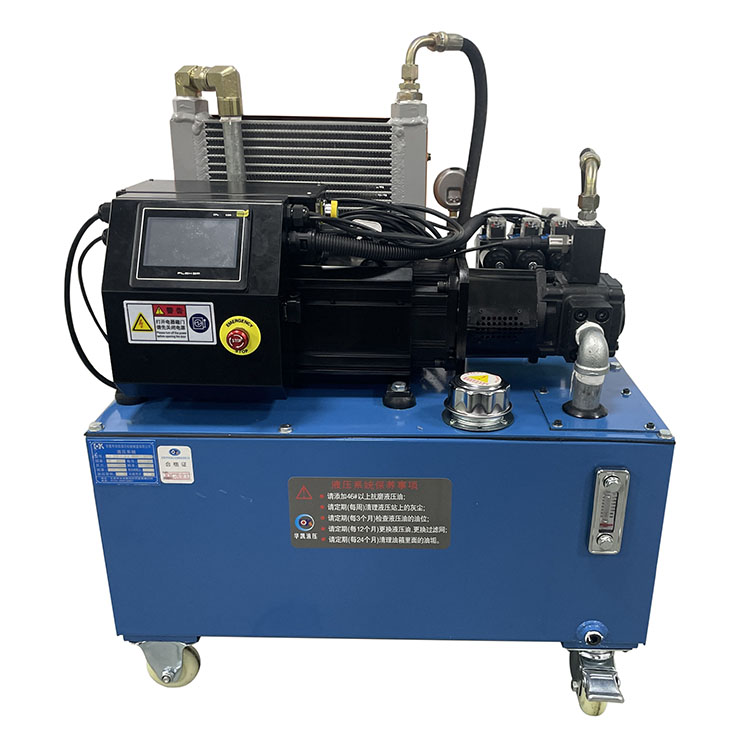

The hydraulic station is composed of a pump unit, a valve assembly, an integrated block, a reservoir, and an electrical box combination. The functions of each component are:

Pump Assembly – Equipped with an electric motor and oil pump, it serves as the power source for the hydraulic station, converting mechanical energy into the pressure energy of hydraulic oil.

Integrated block - assembled from hydraulic valves and passages. Regulates the direction, pressure, and flow of hydraulic oil.

Valve assembly – Plate valves mounted on uprights, pipe connections at the back, functionally similar to integrated modules.

Fuel Tank – A semi-enclosed container, welded flat, equipped with an oil filter screen and air filter, used for storing fuel, cooling, and filtering the oil.

Electrical box - comes in two types. One features a terminal board with external wire terminals; the other is equipped with a full set of control appliances.

The working principle of the hydraulic station: The motor drives the oil pump to rotate, which draws oil from the oil tank to convert mechanical energy into pressure energy in the hydraulic station. The hydraulic oil, after being adjusted for direction, pressure, and flow through an integrated block (or valve assembly), is then transported through the external pipeline to the cylinders or hydraulic motors of the hydraulic machinery, controlling the direction change, force magnitude, and speed of the liquid motor, thus powering various hydraulic machines.
