The hydraulic station is an independent hydraulic unit. It supplies oil in stages according to requirements. It also controls the direction, pressure, and flow of the hydraulic oil, suitable for various hydraulic machinery where the main unit can be separated from the hydraulic unit. After purchase, the user simply connects the hydraulic station to the actuator (cylinder or motor) on the main unit with oil pipes, and the hydraulic machinery can perform various specified actions and work cycles.

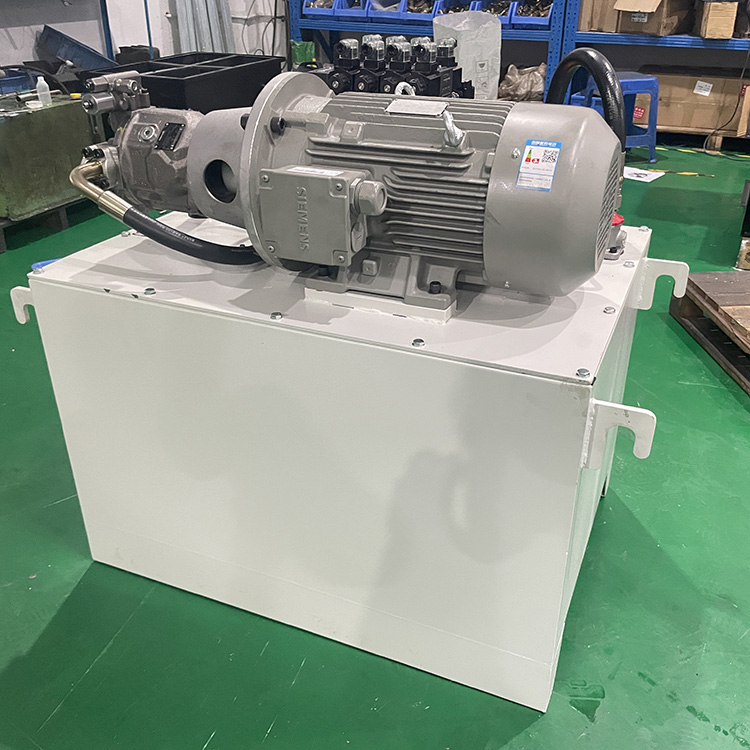

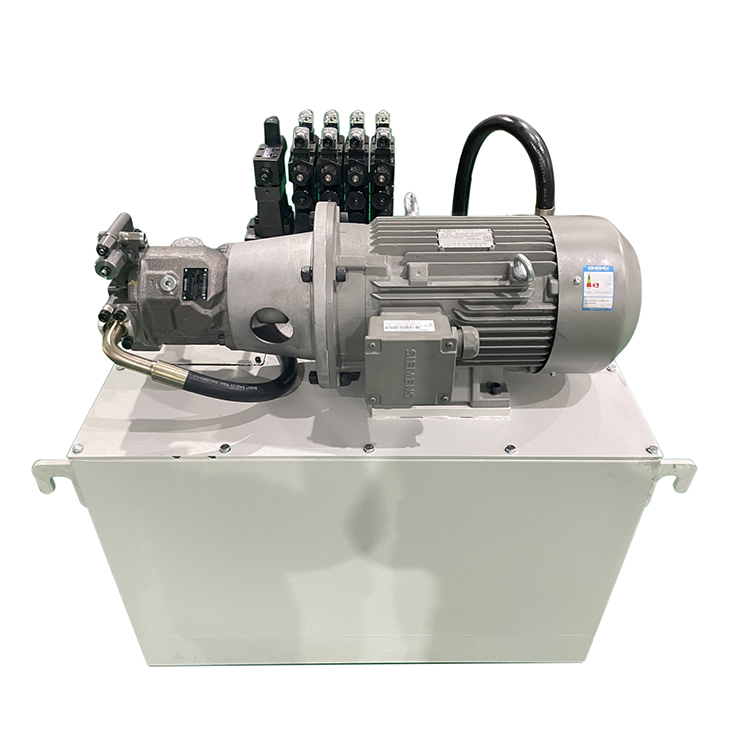

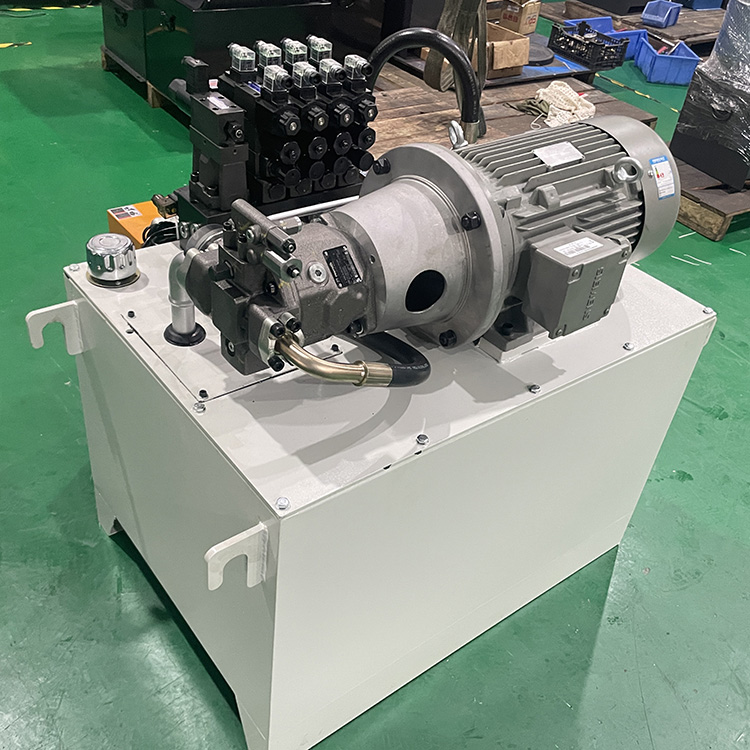

The hydraulic station is composed of a pump unit, an integrated block or valve assembly, an oil tank, and an electrical box combination. The functions of each component are:

Pump Assembly – Equipped with an electric motor and oil pump, it serves as the power source for the hydraulic station, converting mechanical energy into the pressure energy of hydraulic oil.

Integrated block – assembled from hydraulic valves and passage bodies. Performs directional, pressure, and flow regulation on hydraulic oil.

Valve assembly – Plate valves mounted on a vertical plate, pipe connections at the back, functionally equivalent to integrated modules.

Fuel Tank - A semi-enclosed container with welded plates, equipped with oil filter mesh, air filter, etc., for storing oil, cooling, and filtering.

Electrical box – comes in two types. One features a terminal board with external wiring terminals; the other is equipped with a complete set of control devices.

The working principle of the hydraulic station: The motor drives the oil pump to rotate, which draws oil from the oil tank and converts mechanical energy into pressure energy of the hydraulic station. The hydraulic oil, after being adjusted for direction, pressure, and flow through an integrated block (or valve assembly), is then channeled through external piping to the cylinders or hydraulic motors of the hydraulic machinery. This controls the direction change, force magnitude, and speed of the liquid motor, enabling the operation of various hydraulic machinery.
