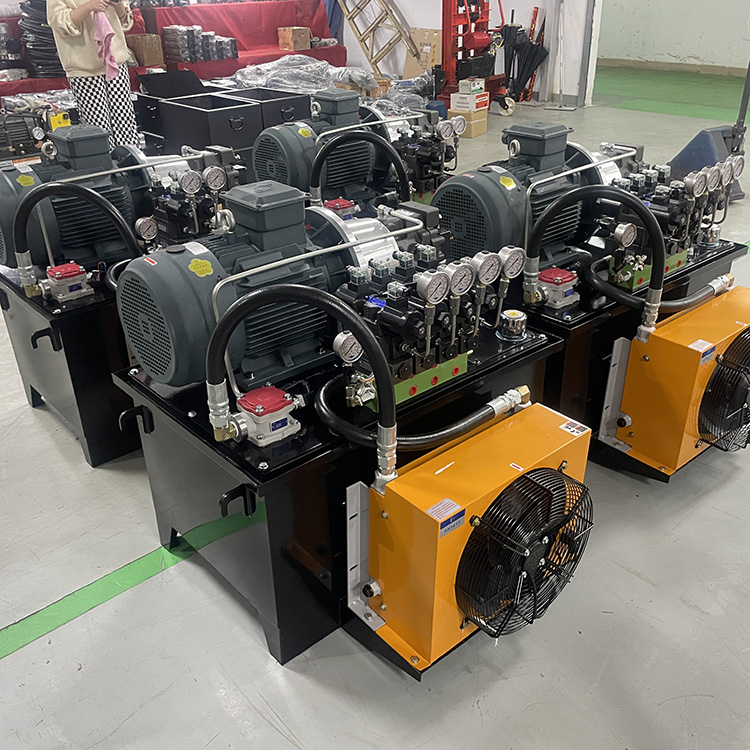

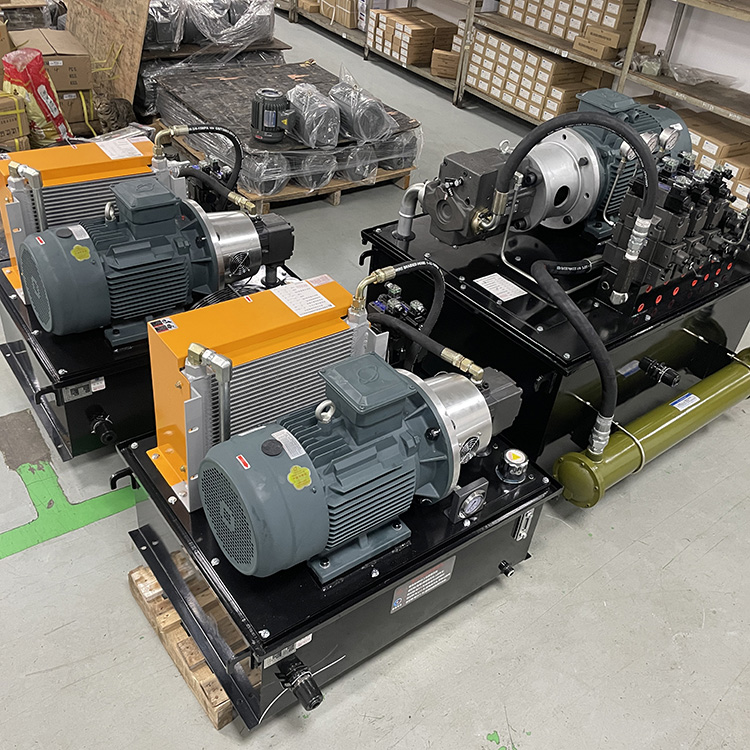

The hydraulic station is an independent hydraulic unit. It supplies oil in a step-by-step manner. It controls the direction, pressure, and flow of hydraulic oil, suitable for various hydraulic machinery where the main unit and hydraulic unit can be separated. After purchase, the user simply connects the hydraulic station to the actuator (cylinder or motor) on the main unit with oil pipes, and the hydraulic machinery can perform various specified actions and work cycles.

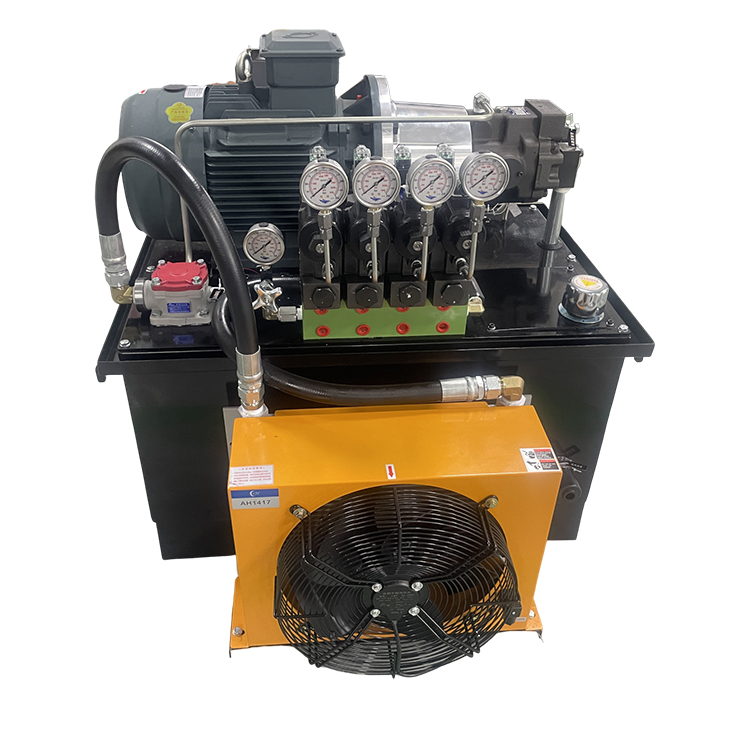

The hydraulic station is composed of a pump assembly, an integrated block or valve assembly, an oil tank, and an electrical box combination. The functions of each component are:

Pump unit – Equipped with an electric motor and oil pump, it serves as the power source for the hydraulic station, converting mechanical energy into the pressure energy of hydraulic oil.

Integrated block – assembled from hydraulic valves and channel bodies. It regulates the direction, pressure, and flow of hydraulic oil.

Valve assembly – Plate valves mounted on a vertical panel, pipe connections at the back, serving the same function as integrated modules.

Fuel Tank – A semi-enclosed container with a plate welding, equipped with oil filter mesh, air filter, etc., used for storing oil, cooling and filtering.

Electrical box – comes in two types. One features a terminal board with external wire connections; the other is equipped with a complete set of control devices.

The working principle of the hydraulic station: The motor drives the oil pump to rotate, which draws oil from the oil tank to convert mechanical energy into pressure energy of the hydraulic station. The hydraulic oil is then regulated for direction, pressure, and flow through an integrated block (or valve assembly) before being routed through external piping to the hydraulic cylinder or motor of the hydraulic machinery. This controls the direction change, force magnitude, and speed of the hydraulic actuator, propelling various hydraulic machines to perform work.
