Detailed Description:

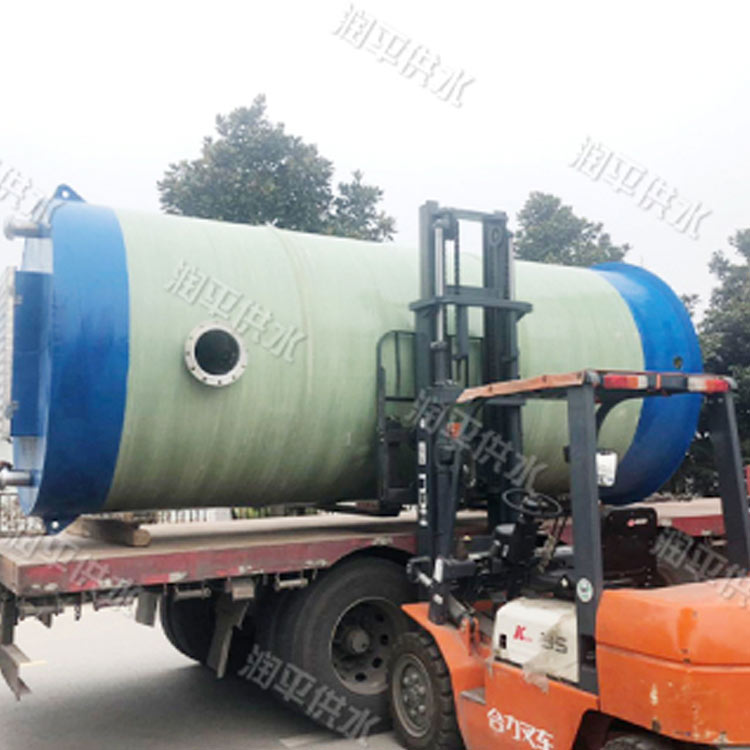

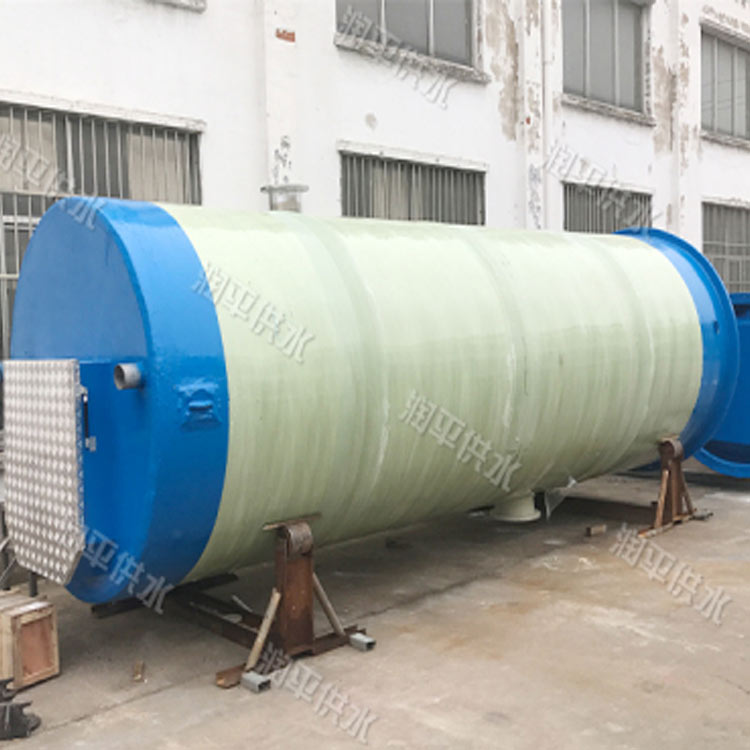

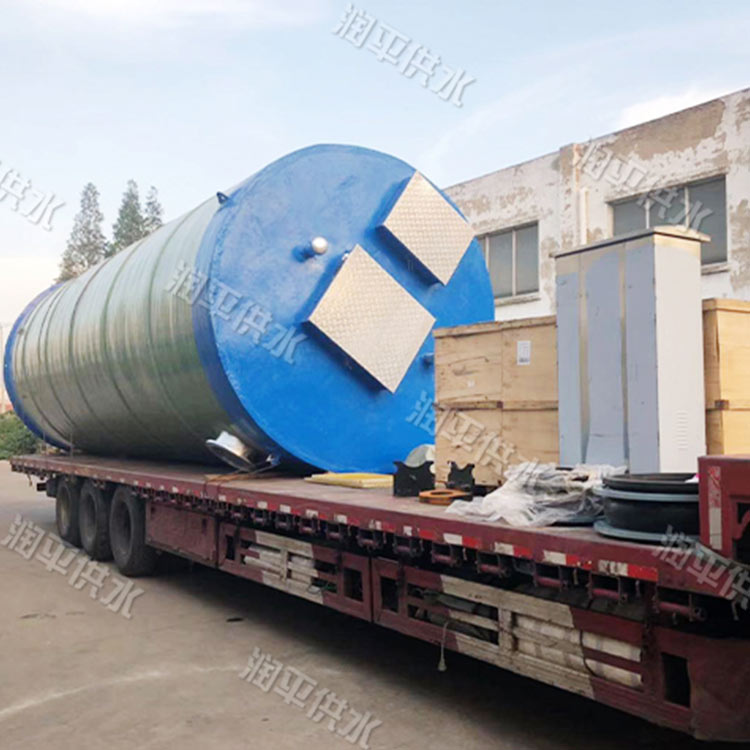

Pre-engineered integrated pumping station
Pre-engineered integrated pumping stations are the 7th generation products developed on the basis of existing variable frequency constant pressure water supply equipment and negative pressure-free water supply equipment. They consist ofStainless Steel Water TankConsisting of pumps, intelligent variable-frequency control cabinets, pressure boosters, water intake devices, and pressure tanks, this is a new type of integrated mechanical and electrical water supply equipment. It combines computer technology, variable-frequency technology, and motor pumps to meet the requirements of urban water supply networks that neither have negative pressure nor require certain storage capacity during peak periods, and continuous water supply during shutdowns. The device employs microcomputer-controlled variable-frequency pumps, operating at a certain speed to maintain consistent water pressure for users by utilizing the existing pressure of tap water. It boasts advantages such as energy-saving, environmental protection, low noise, and constant water pressure supply.
Integrated Pump Station Applications
1. Application Range: Suitable for pressure boosting water supply in areas with high pressure in urban pipelines.
2. Applicable Engineering Types: Industrial and mining production, domestic water supply, and large water supply pressure stations at waterworks.
3. Applicable Engineering Sections: Potable Water Second Stage Pressure System
4. Other Applicable Uses: Water supply for new, renovated, and expanded residential, office buildings, hotels, and other public structures.
5. User Types: Design Units, Construction Units, Supervision Units.
Principle
The device is interconnected with the fire control center, under normal circumstances,Integrated precast pump stationManufacturers maintain pressure in the fire-fighting water supply network by controlling the pressure-regulating pump. Upon fire alarm, external signals such as fire hydrant buttons and the fire control center are activated, automatically initiating the main fire pump.
